Mazda
>>
2004
>>
MX-5 Miata Base, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
On-Board Diagnostic (Engine Control System BP, BP With TC]
>>
DTC P0122: TP Circuit Low Input
>>
Diagnostic Procedure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Procedure

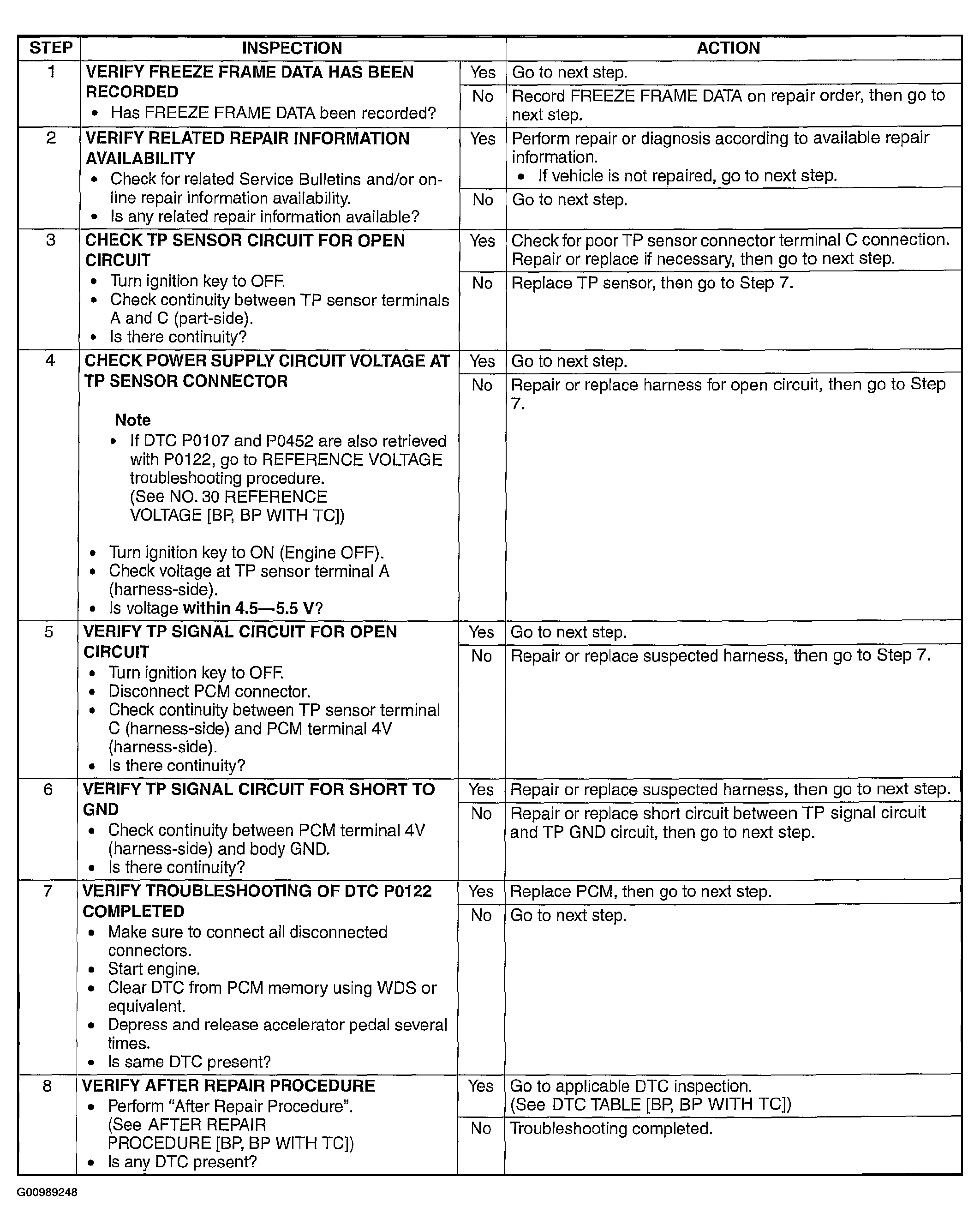

Fig 1: Diagnostic Procedure - DTC P0122 [BP, BP With TC]
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
