DTC P0703: Brake Switch Input Malfunction
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC P0703: Brake Switch Input Malfunction: Notes

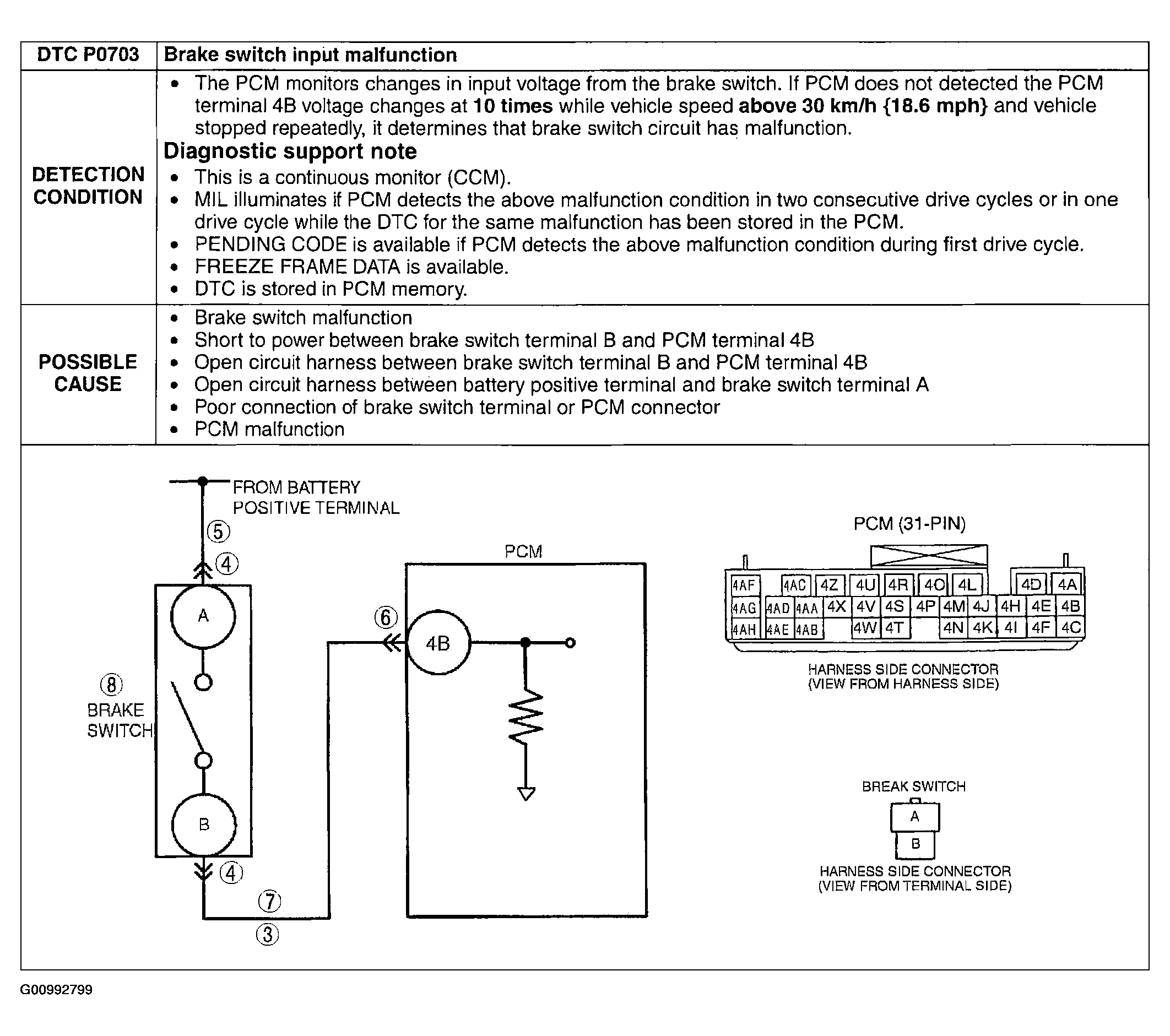

Fig 1: Possible Causes - DTC P0703 [BP, BP With TC]
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
