Freeze Frame PID Data Access Procedure

  1. Perform the necessary vehicle preparation and visual inspection.
  2. Connect WDS or equivalent to the vehicle DLC-2 16-pin connector located the left side of the center console.

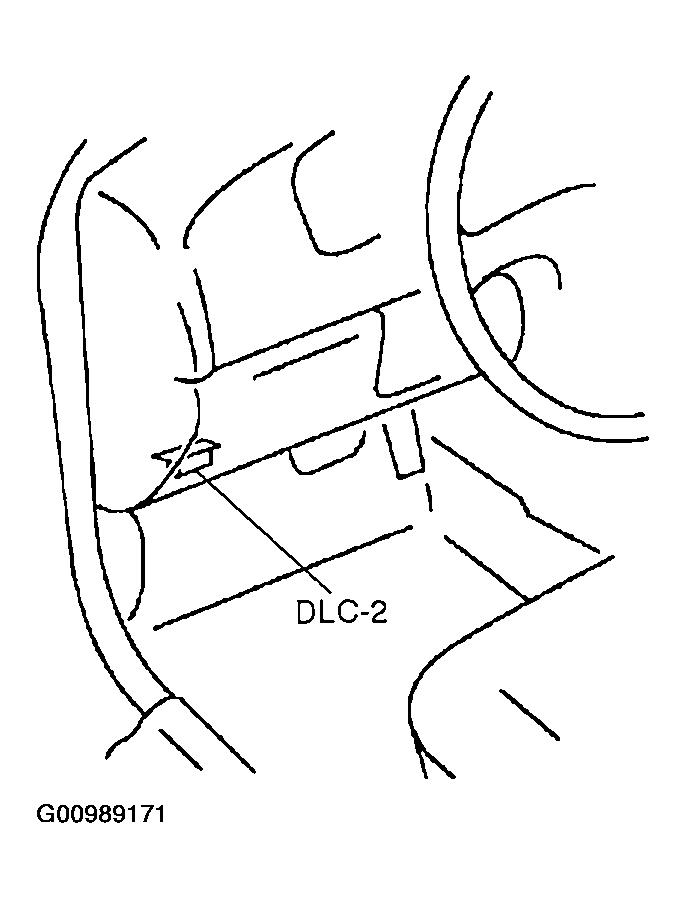

    Fig 1: Locating DLC-2
    G00989171Courtesy of MAZDA MOTORS CORP.
  3. Record the FREEZE FRAME PID DATA by WDS or equivalent.
