Diagnostic Procedure

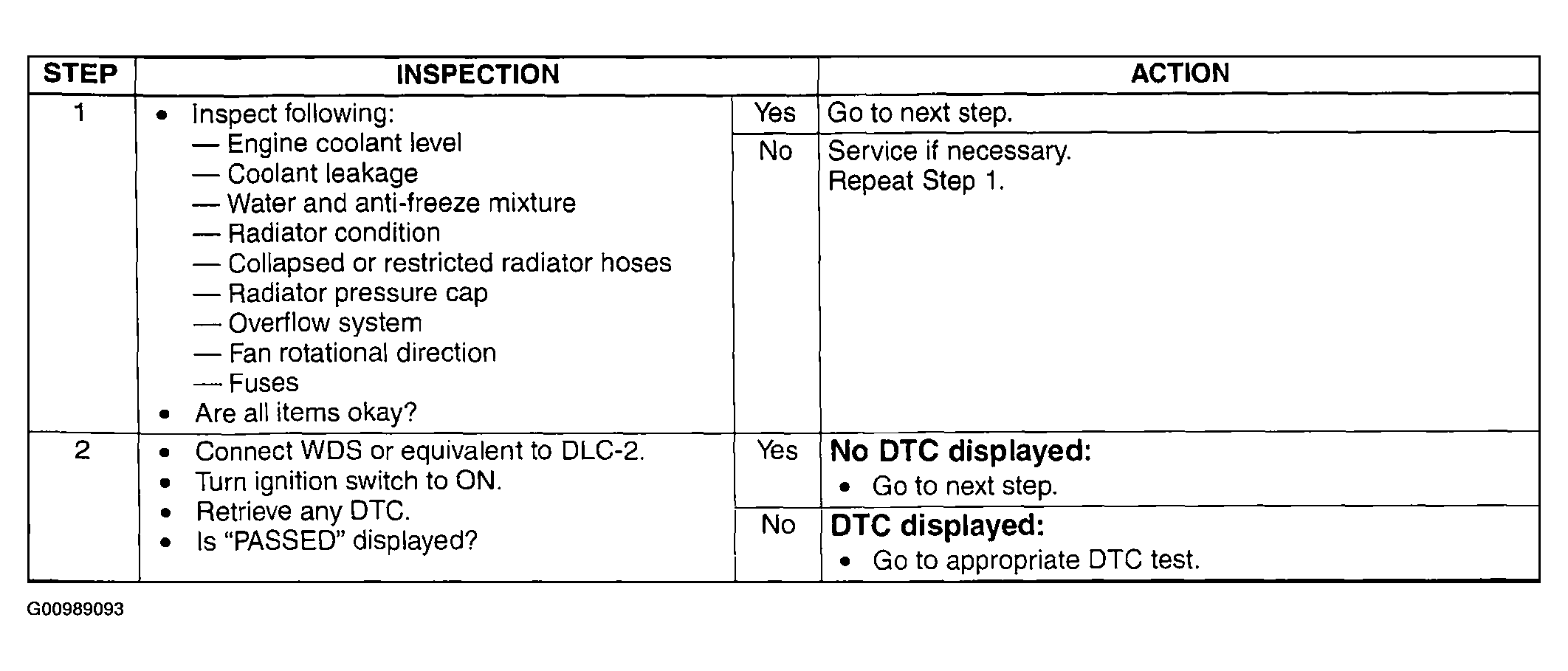

Fig 1: Diagnostic Procedure - No. 17 Cooling System Concerns-Overheating [BP, BP With TC] (Steps 1-2)
G00989093Courtesy of MAZDA MOTORS CORP.

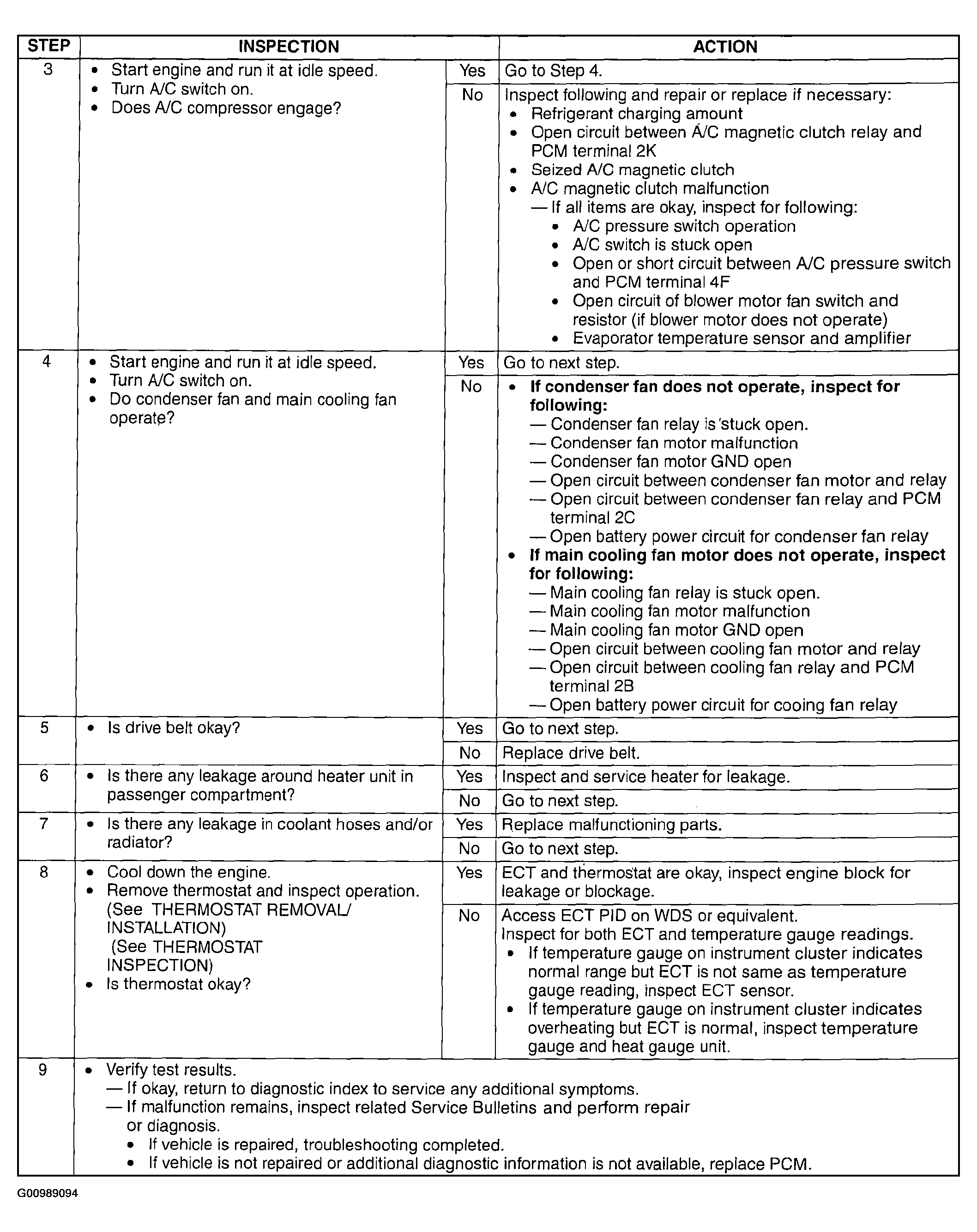

Fig 2: Diagnostic Procedure - No. 17 Cooling System Concerns-Overheating [BP, BP With TC] (Steps 3-9)
G00989094Courtesy of MAZDA MOTORS CORP.
