Diagnostic Procedure

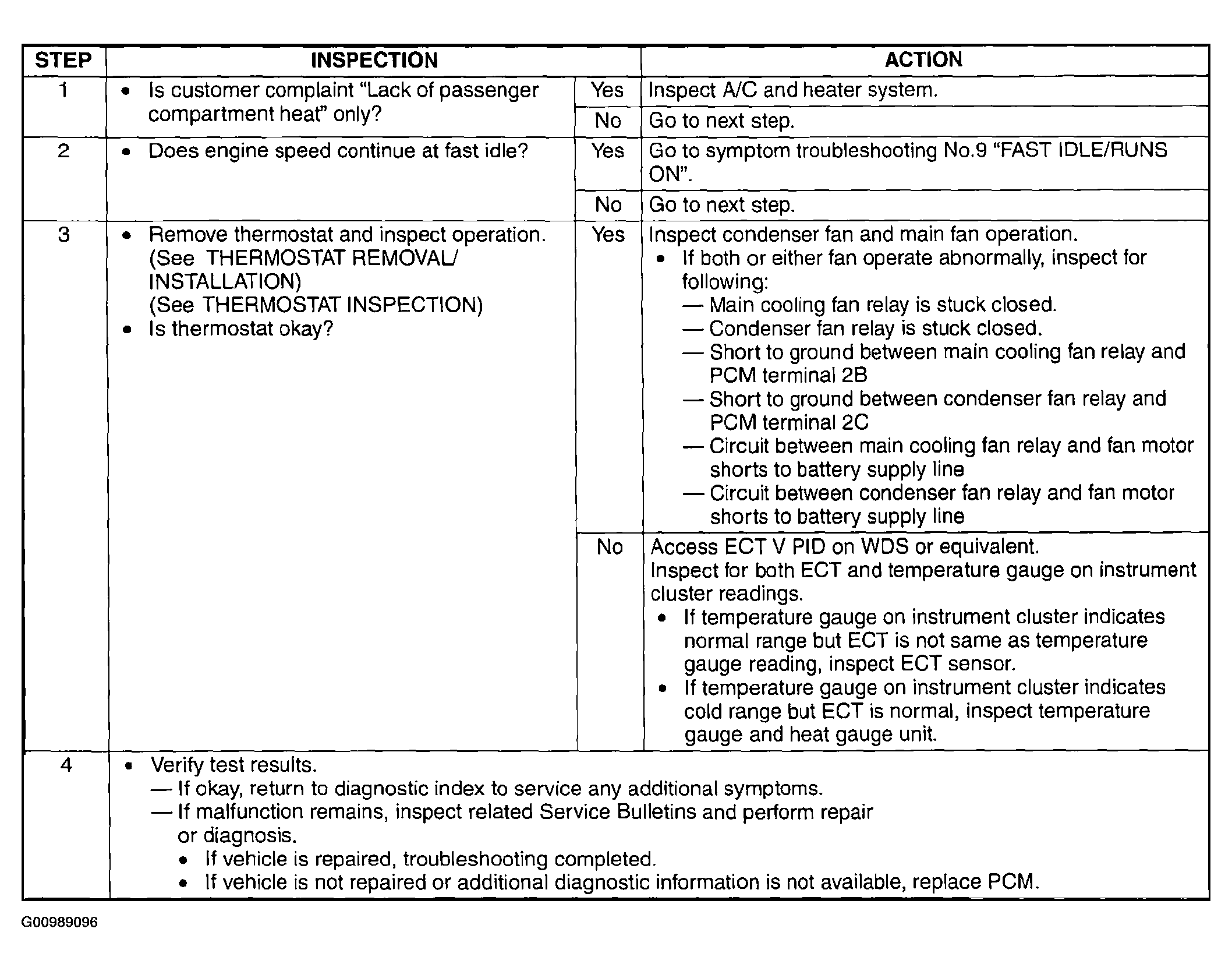

Fig 1: Diagnostic Procedure - No. 18 Cooling System Concerns-Runs Cold [BP, BP With TC] (Steps 1-4)
G00989096Courtesy of MAZDA MOTORS CORP.
