Upper Module Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the audio unit. (See AUDIO UNIT REMOVAL .)
  3. Remove in the order indicated in the table.
    REMOVAL ORDER OF UPPER MODULE

    Removal Order Component
    1 Screw (See Screw Installation Note .)
    2 Upper module (See Upper Module Removal Note .)
    3 Cover (See Cover Removal Note .)

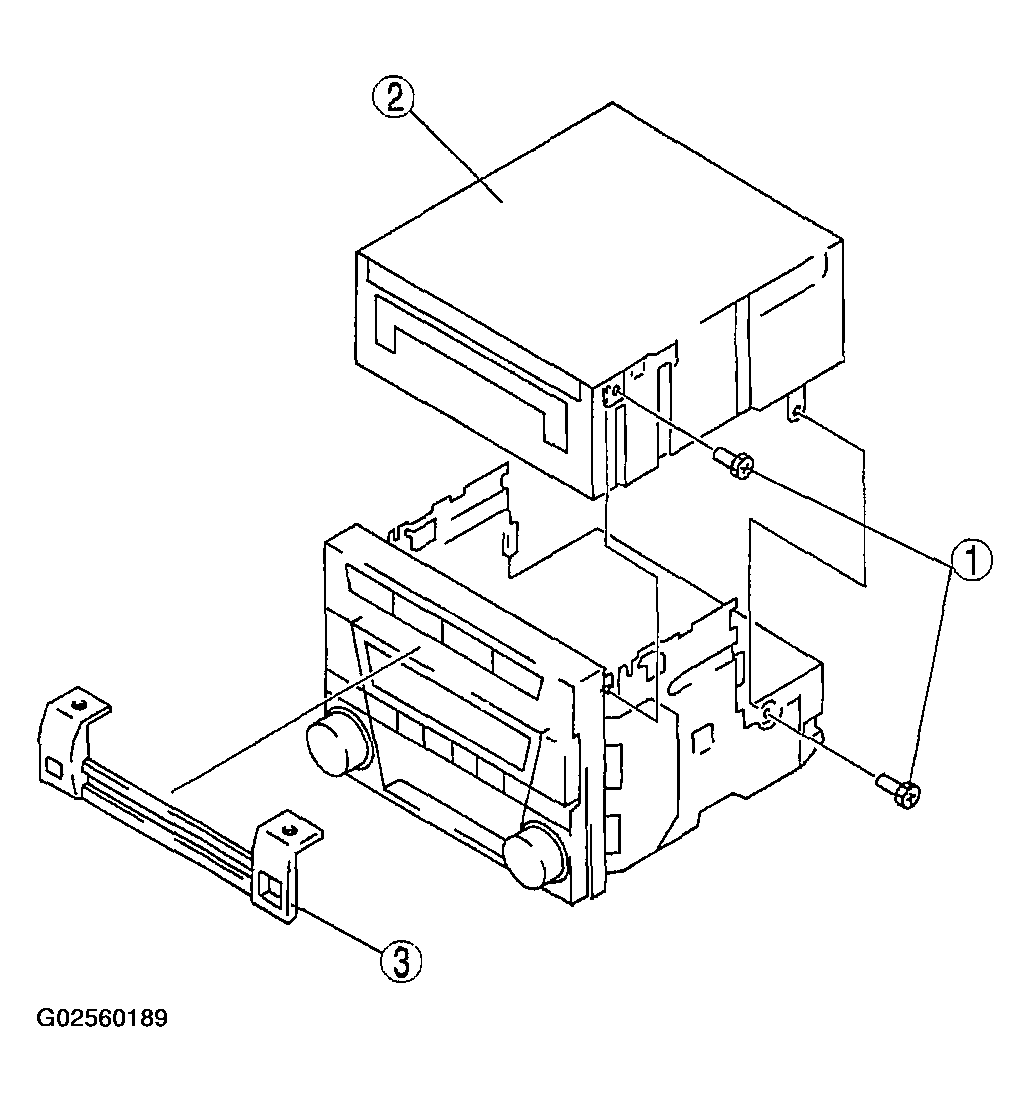

    Fig 1: Removing/Installing Upper Module
    G02560189Courtesy of MAZDA MOTORS CORP.
  4. Install in the order of removal.
