DTC P0704: CPP Switch Input Circuit Problem

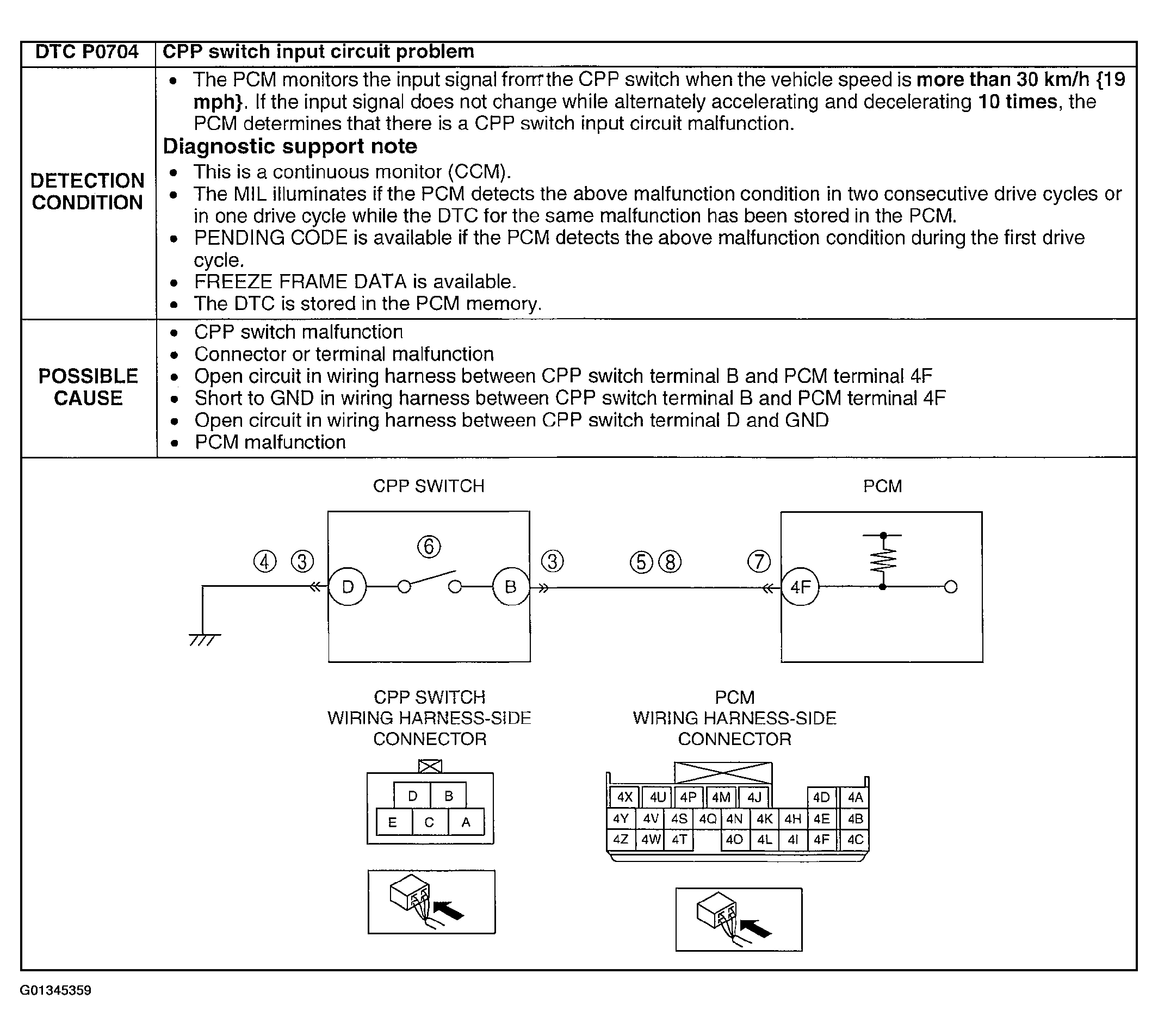

Fig 1: DTC P0704 Detection Condition & Possible Causes Chart

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

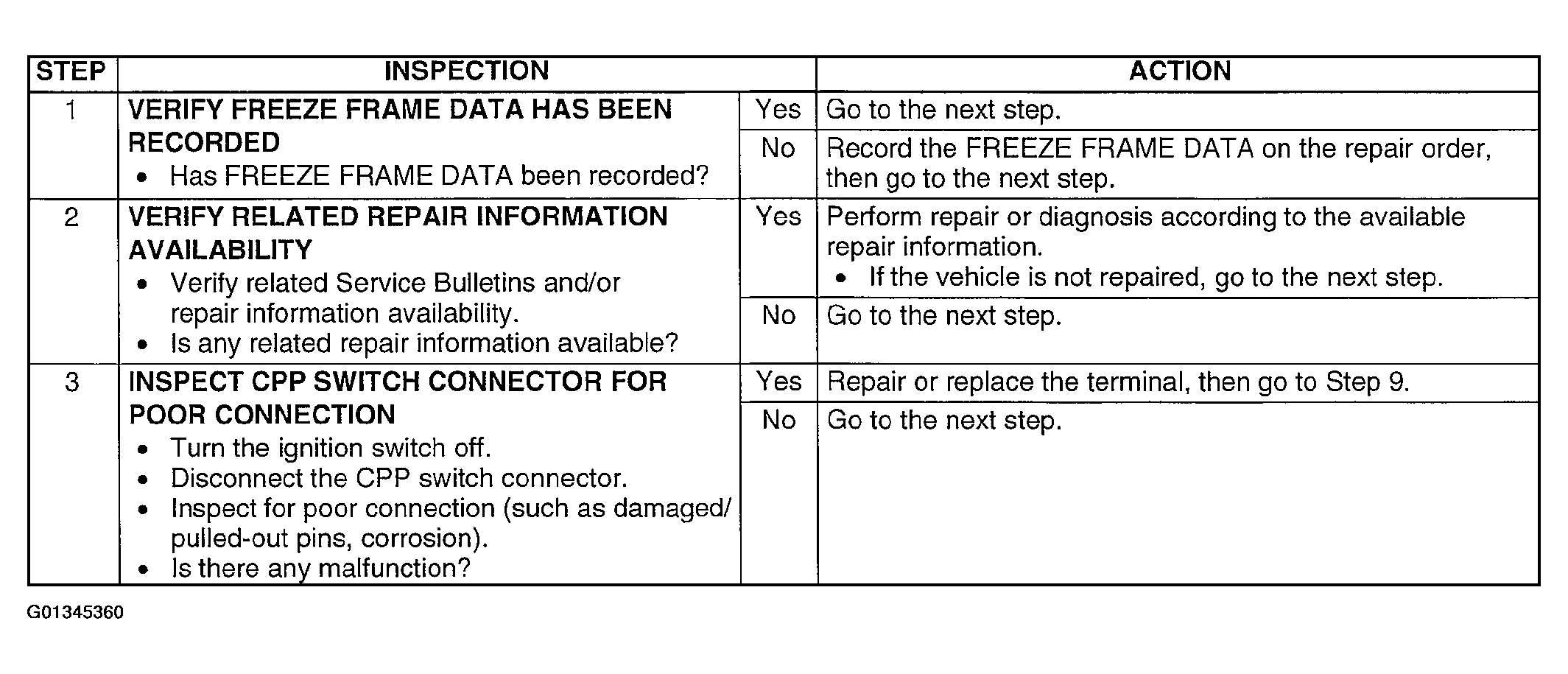

Fig 2: DTC P0704 Diagnostic Procedure Chart (Step 1-3)

Courtesy of MAZDA MOTORS CORP.

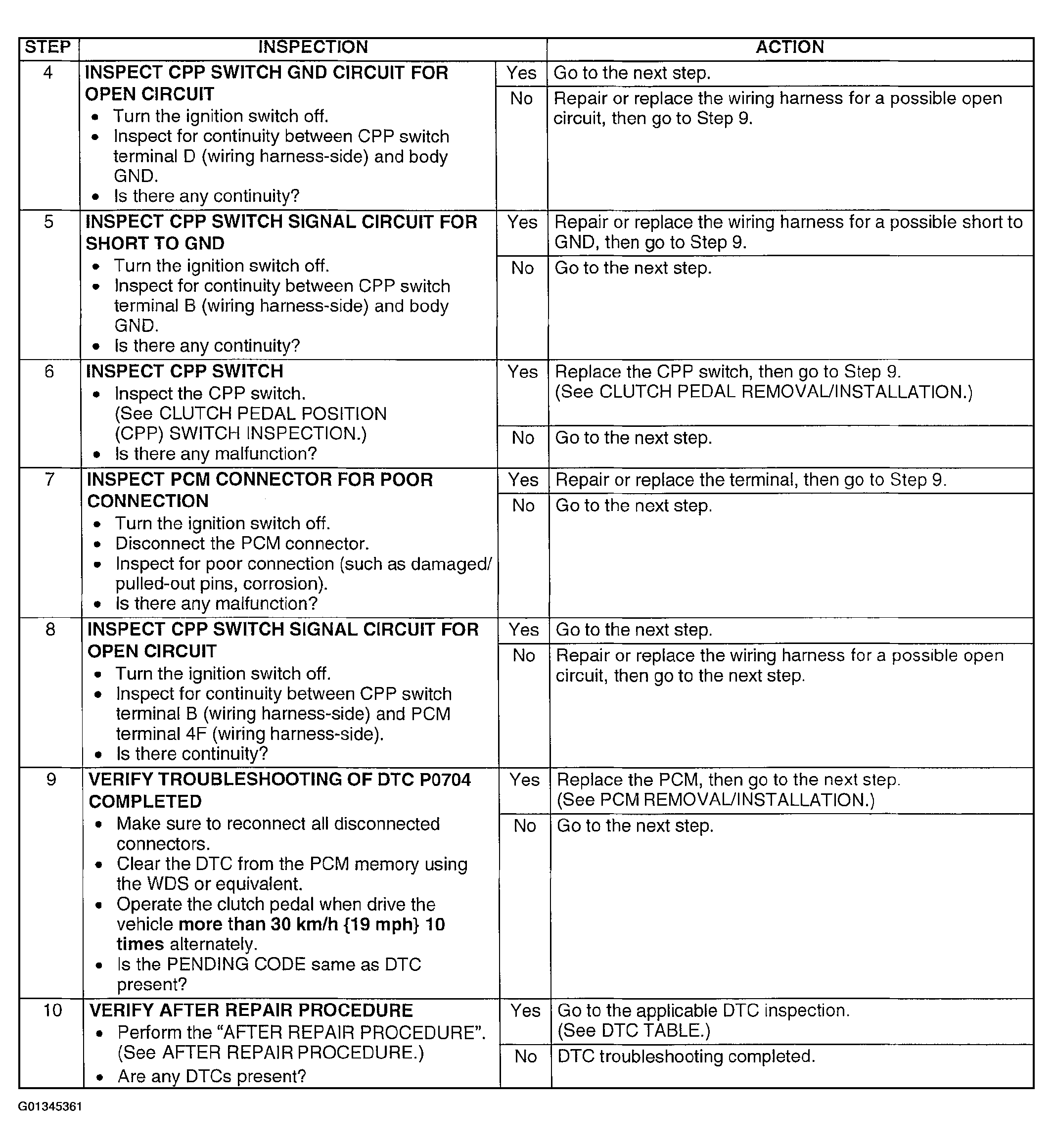

Fig 3: DTC P0704 Diagnostic Procedure Chart (Step 4-10)

Courtesy of MAZDA MOTORS CORP.
