Part-Side Connector

The viewing direction of part-side connectors is from the terminal side.

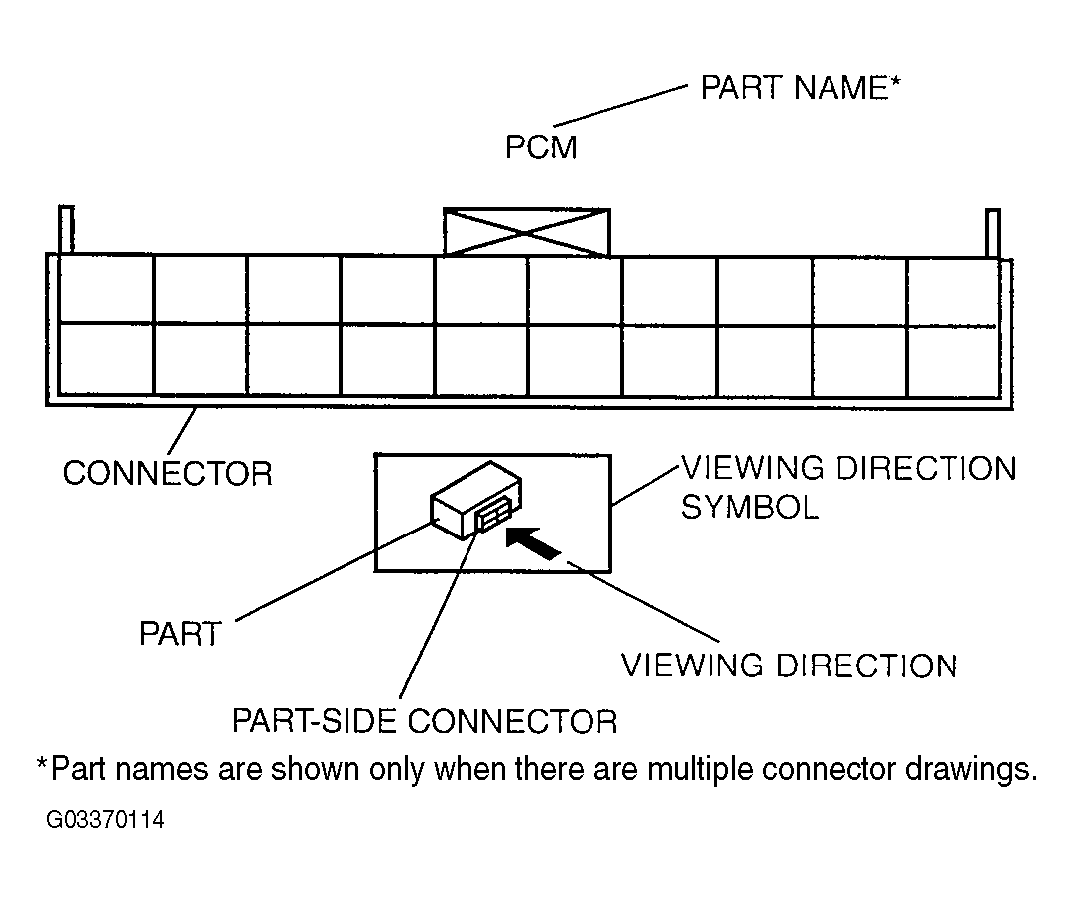

Fig 1: View of Part-side Connectors
G03370114Courtesy of MAZDA MOTORS CORP.
