Keyless Entry Module

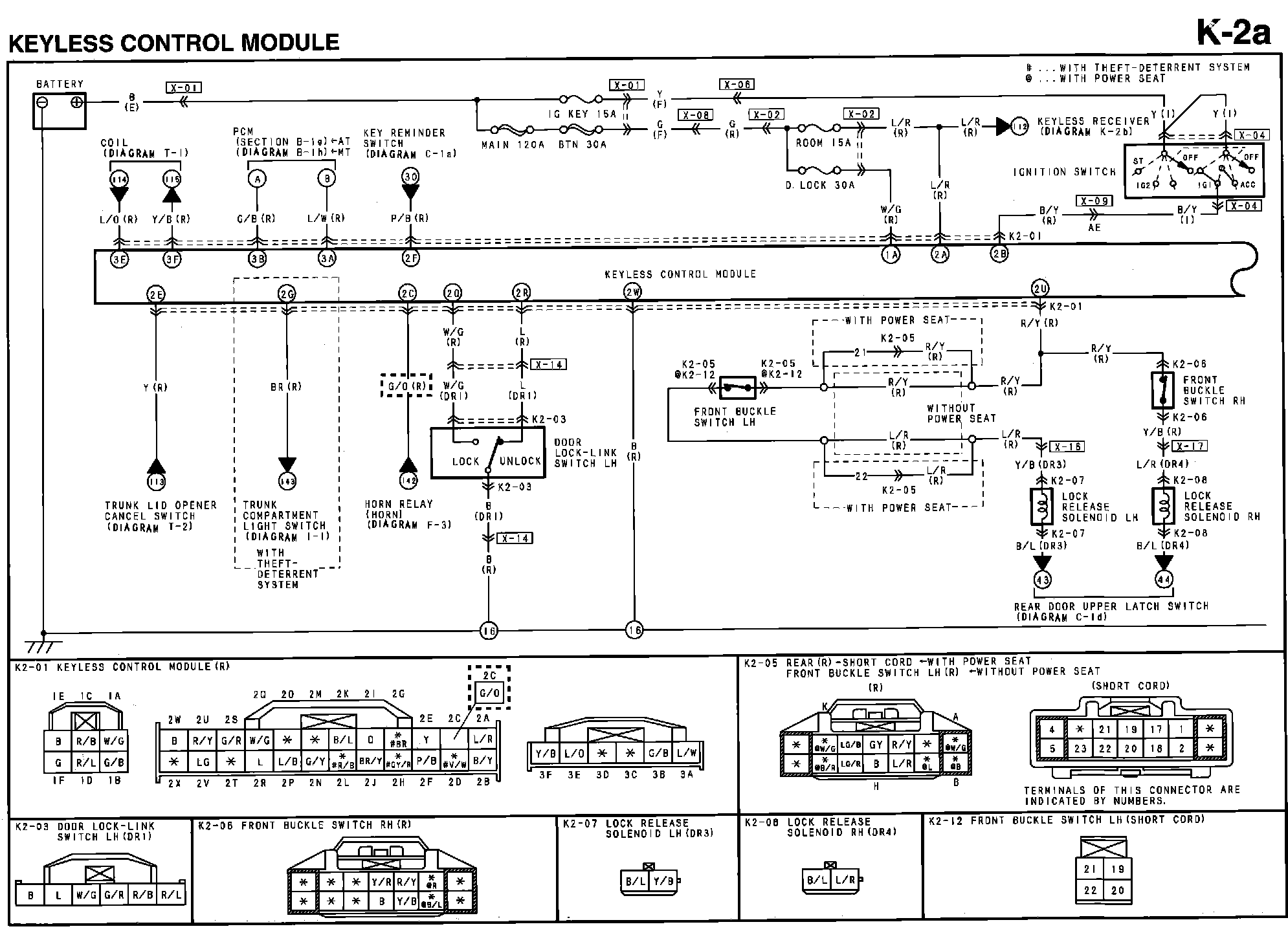

Diagram K-2a:

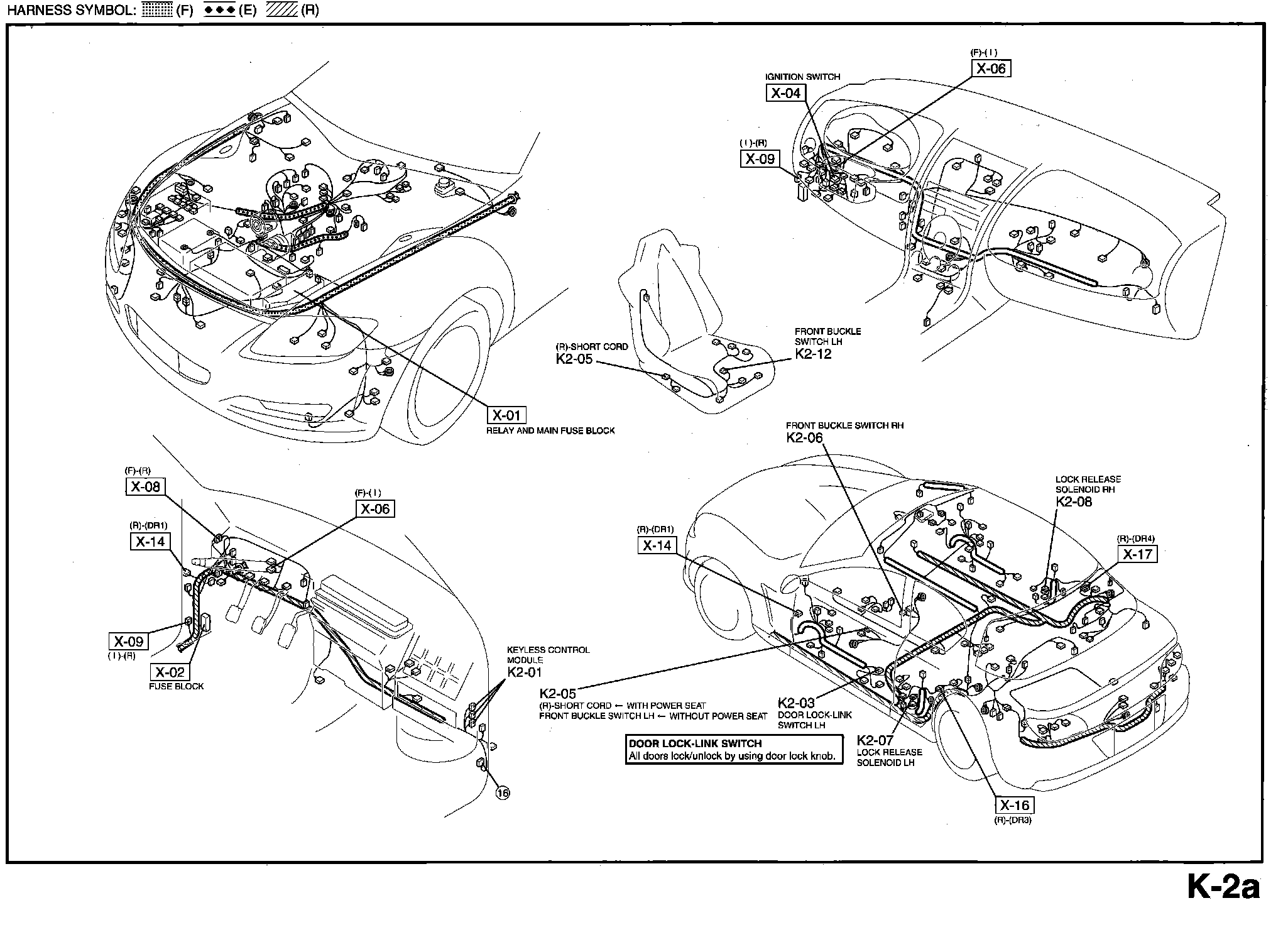

Routing View K-2a:

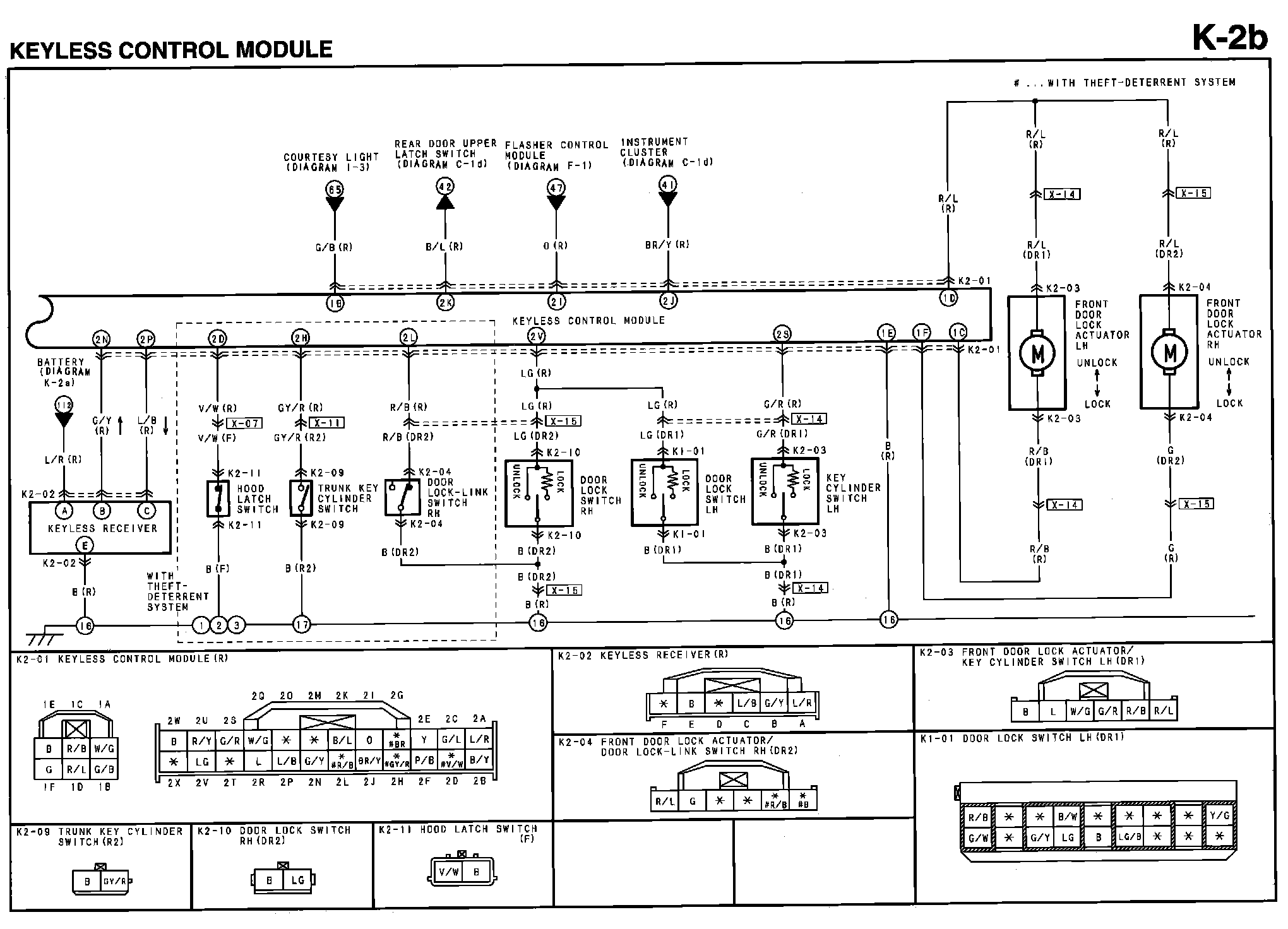

Diagram K-2b:

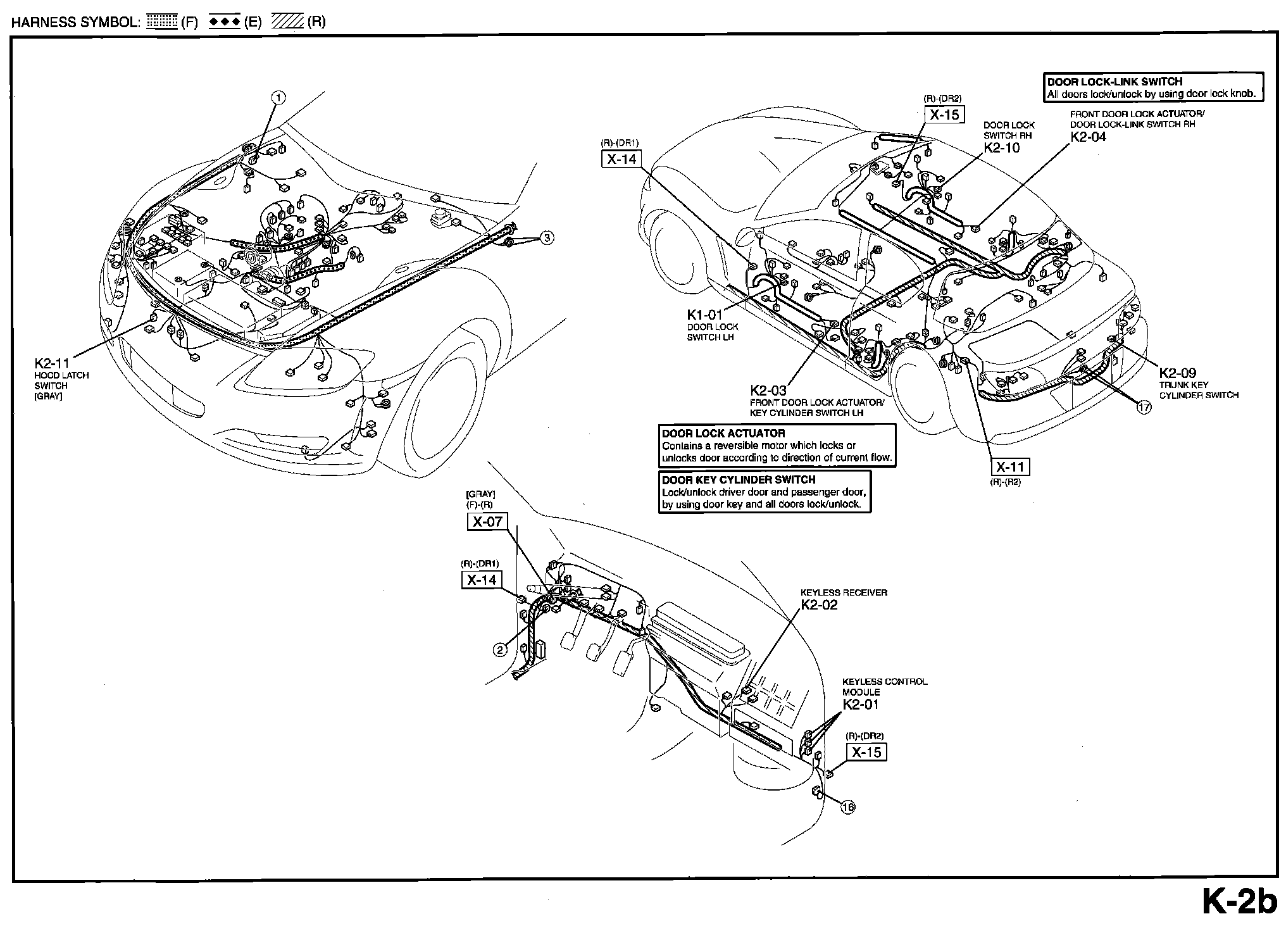

Routing View K-2b:
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
