Tire Pressure Module: Service and Repair

TIRE PRESSURE MONITORING SYSTEM (TPMS) CONTROL MODULE REMOVAL/INSTALLATION
1. Remove the console.
2. Remove the center module.
3. Remove the center ventilator grille.
4. Remove the center box (without car-navigation system) or LCD unit (with car-navigation system).

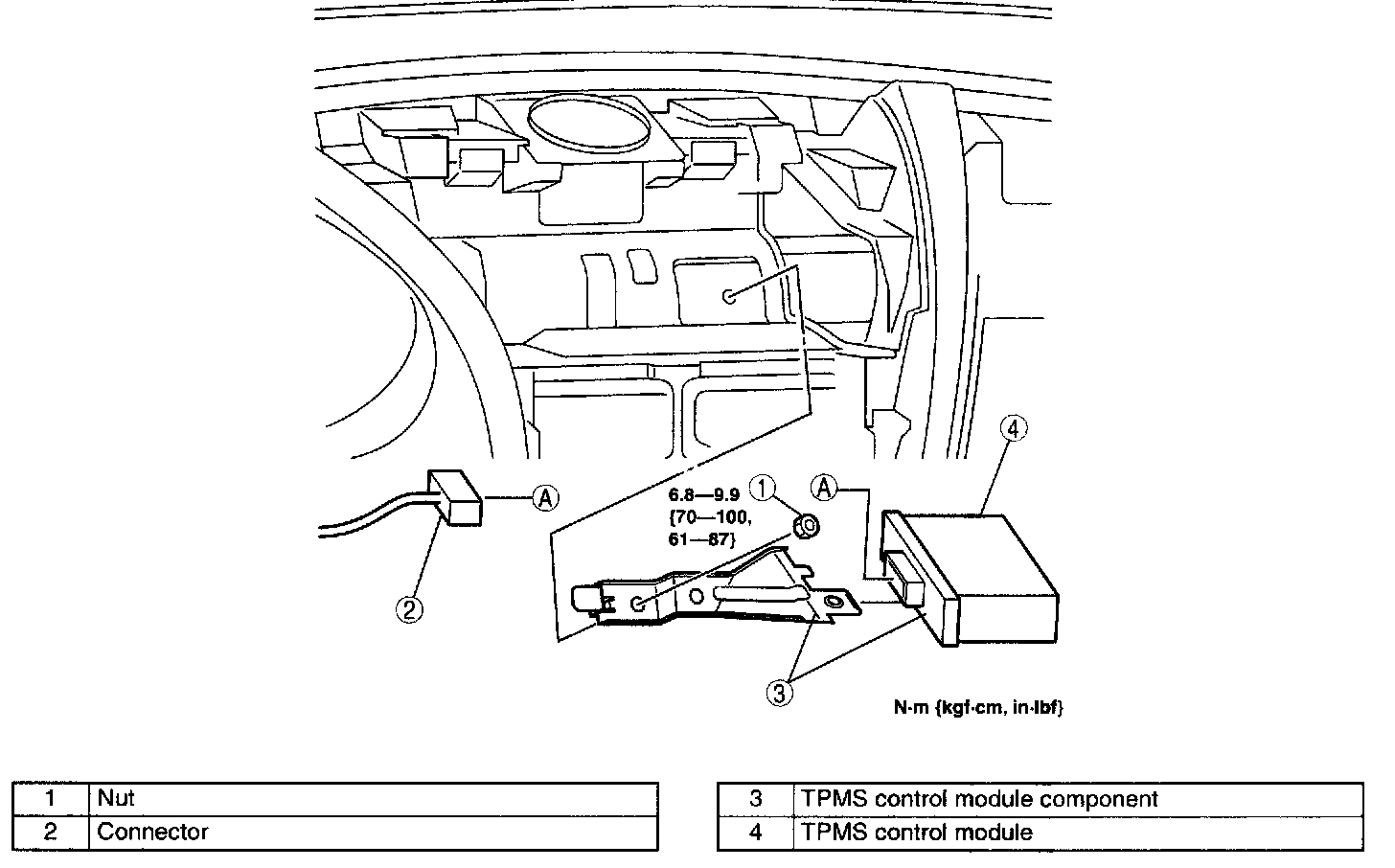

5. Remove in the order indicated in the table.





6. Install in the reverse order of removal.
