Ignition Coil: Service and Repair

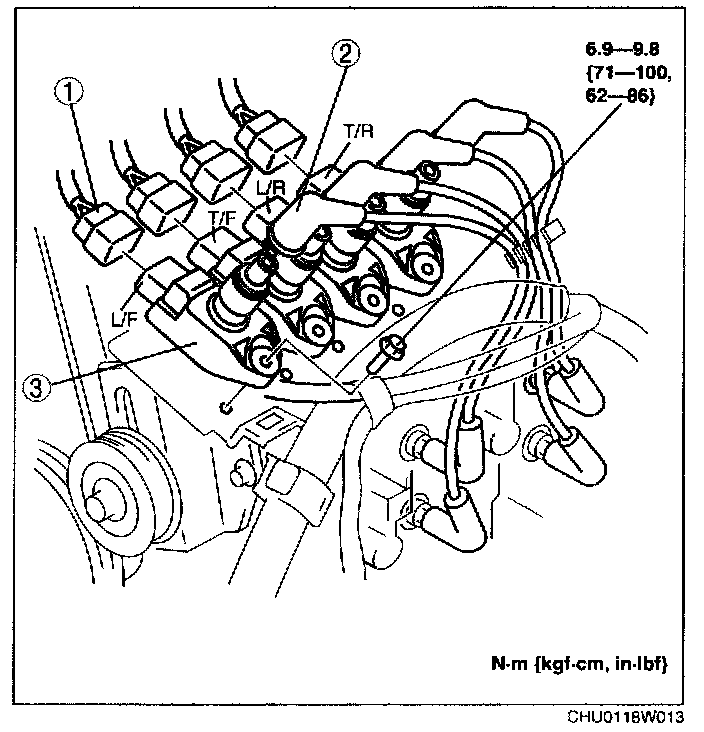

IGNITION COIL REMOVAL/INSTALLATION

1. Remove the engine cover.
2. Remove the battery cover.
3. Remove the negative battery cable.
4. Remove the air cleaner duct. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION.)

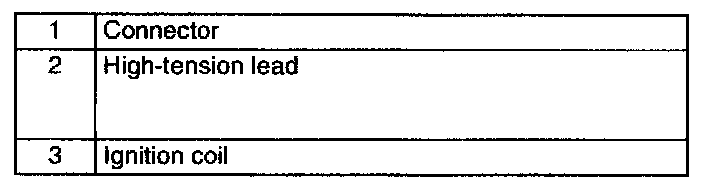

5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.
