ABS HU/CM Removal/Installation

ABS HU/CM REMOVAL/INSTALLATION

Caution:
^ The internal parts of the ABS HU/CM could be damaged if dropped. Be careful not to drop the ABS HU/CM. Replace the ABS HU/CM if it is subjected to an impact.

1. Remove the front suspension tower bar.

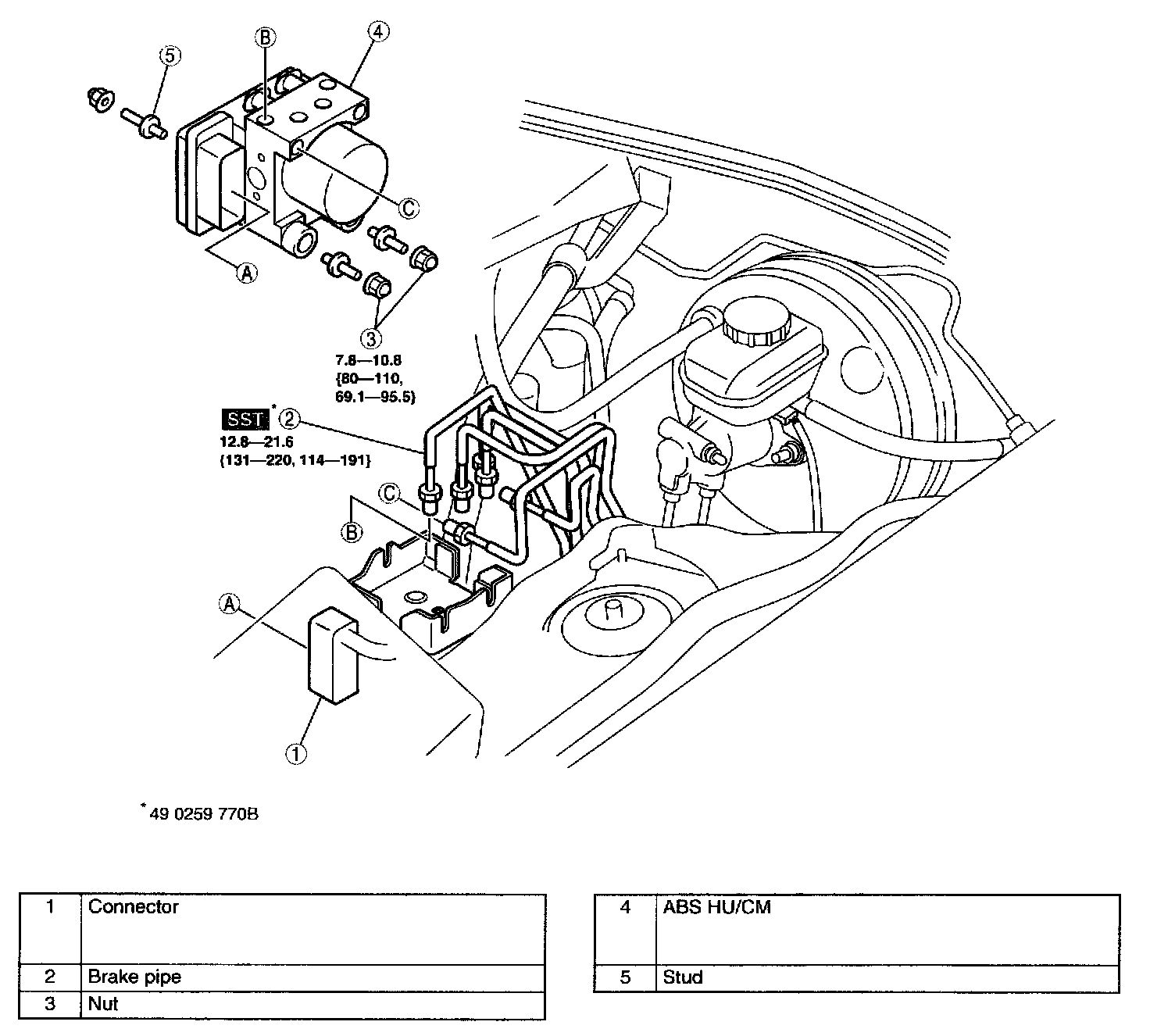

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.

Connector Removal Note





1. Pull the lock lever up, and then remove the connector.

ABS HU/CM Removal/Installation Note
1. When removing/installing the ABS HU/CM from/to the vehicle, attach a strip of protective tape on the ABS HU/CM connector to prevent brake fluid from entering.

Connector Installation Note





1. After connecting the connector, verify that the lock lever is completely pushed in.
