EPS Control Module Inspection

EPS CONTROL MODULE INSPECTION
1. Remove the engine cover, battery cover, and PCM cover.
2. Remove the PCM and the EPS control module.
3. Connect the PCM and EPS control module connectors.
4. Attach the tester lead to the underside of the control module connector and inspect the voltage and continuity.

Note: When inspecting the torque sensor and EPS motor for continuity, turn the ignition switch off and inspect with the connectors for the EPS control module, torque sensor, and EPS motor disconnected.

Part 1:

Part 2:

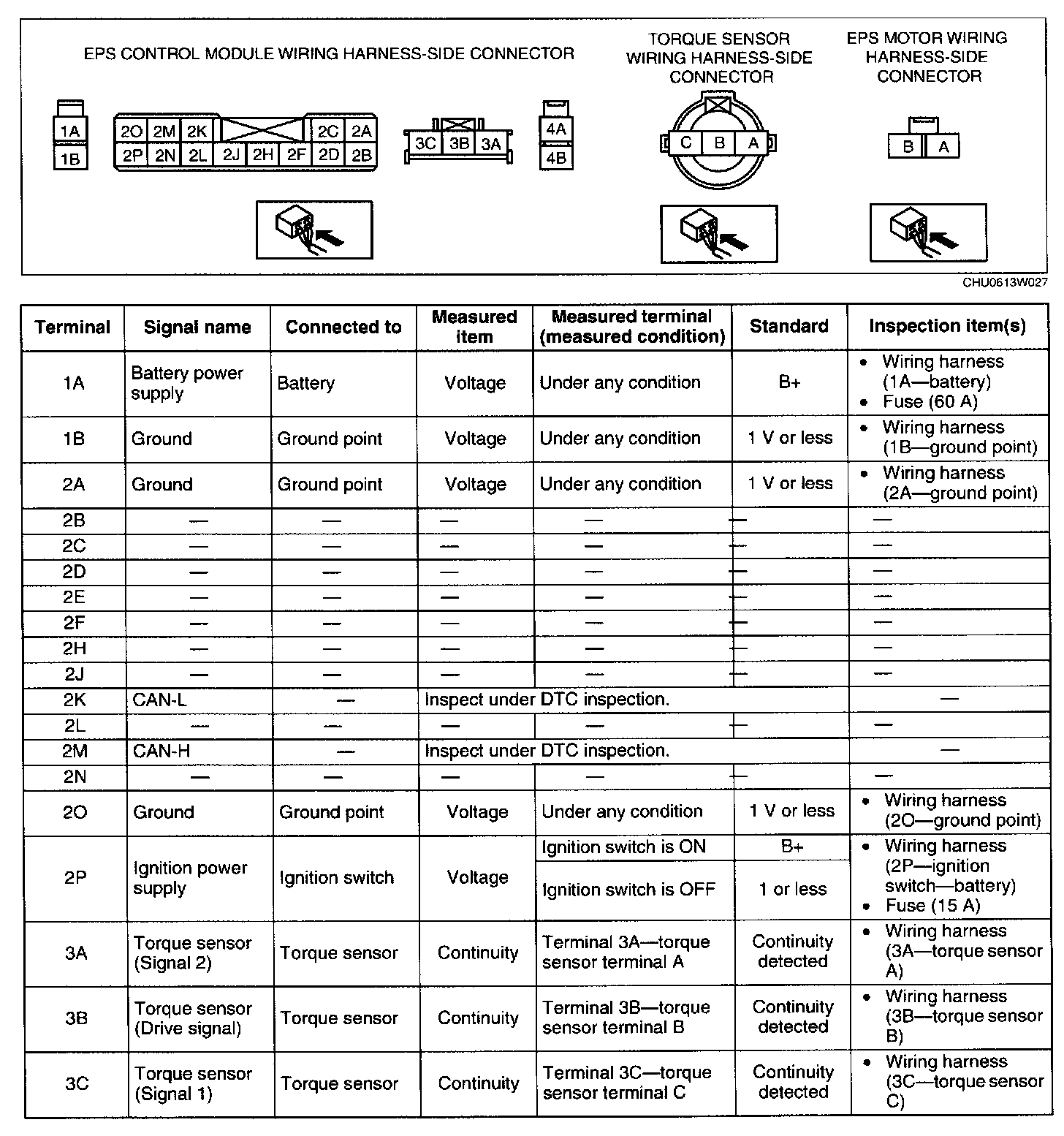

Terminal Voltage Table (Reference)
