Main Control Valve Body

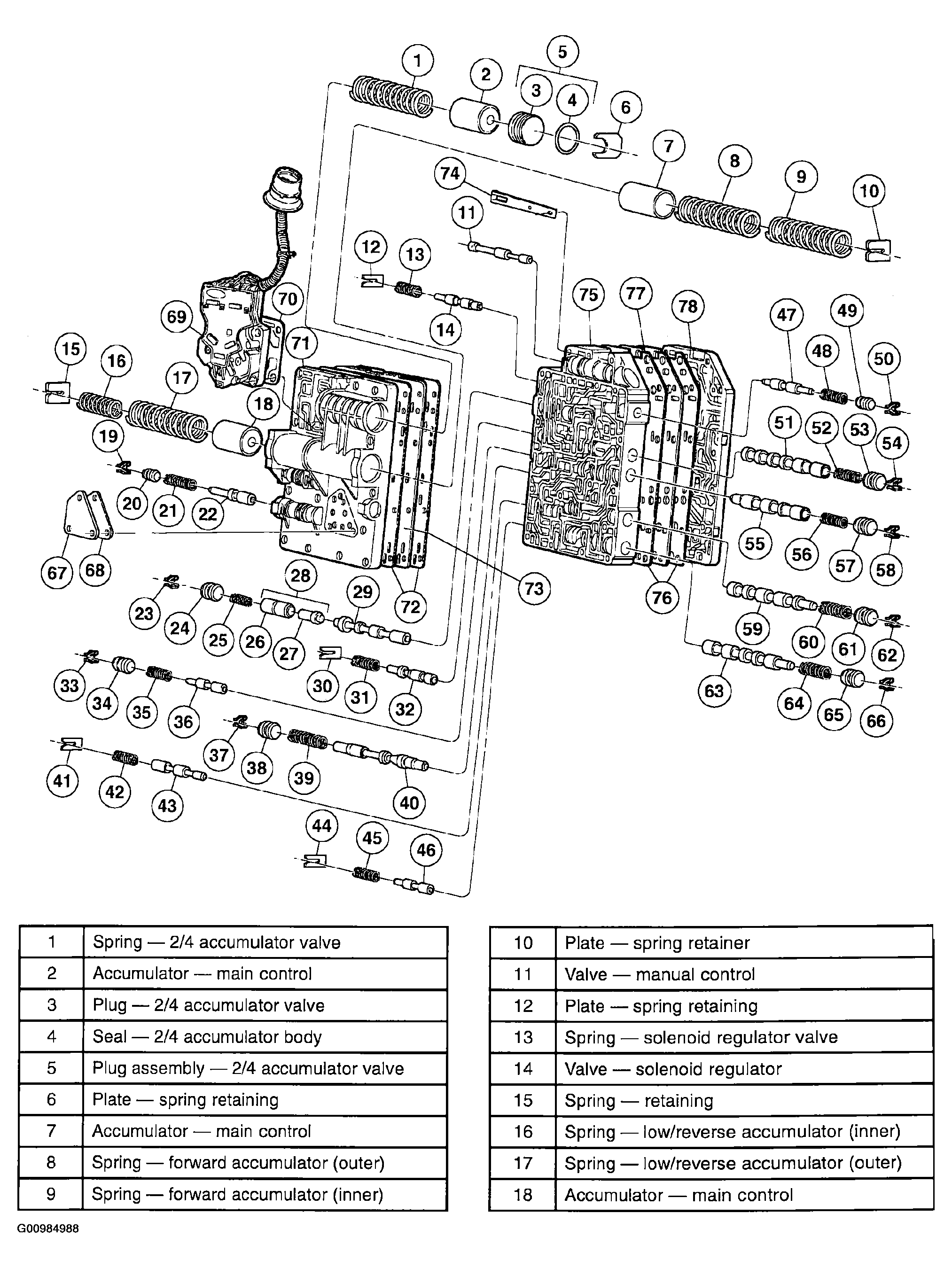

Fig 1: Disassembled View Of Main Control Valve Body & Legend
Courtesy of MAZDA MOTORS CORP.

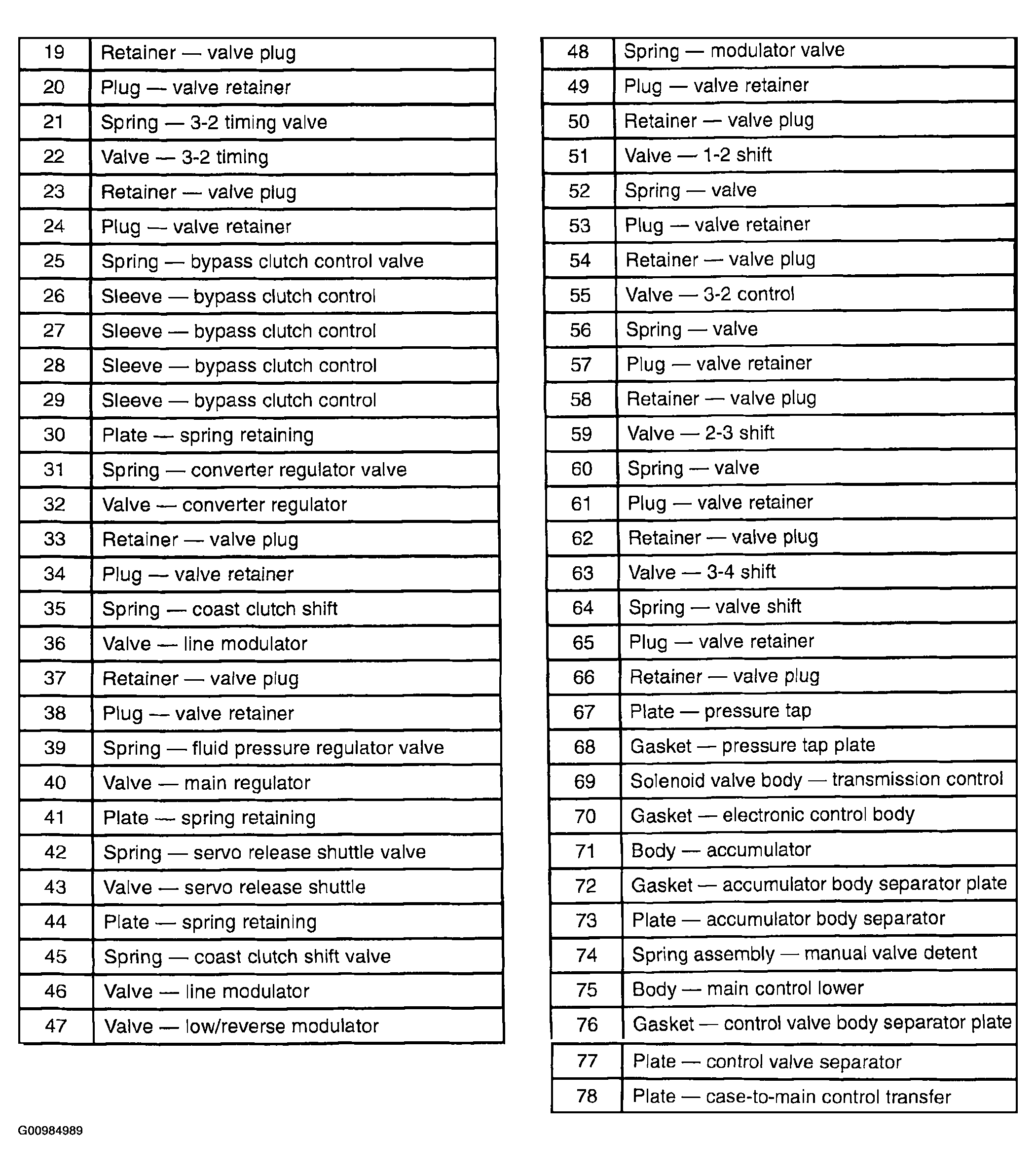

Fig 2: Disassembled View Of Main Control Valve Body Legend
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
