Disassembly Note

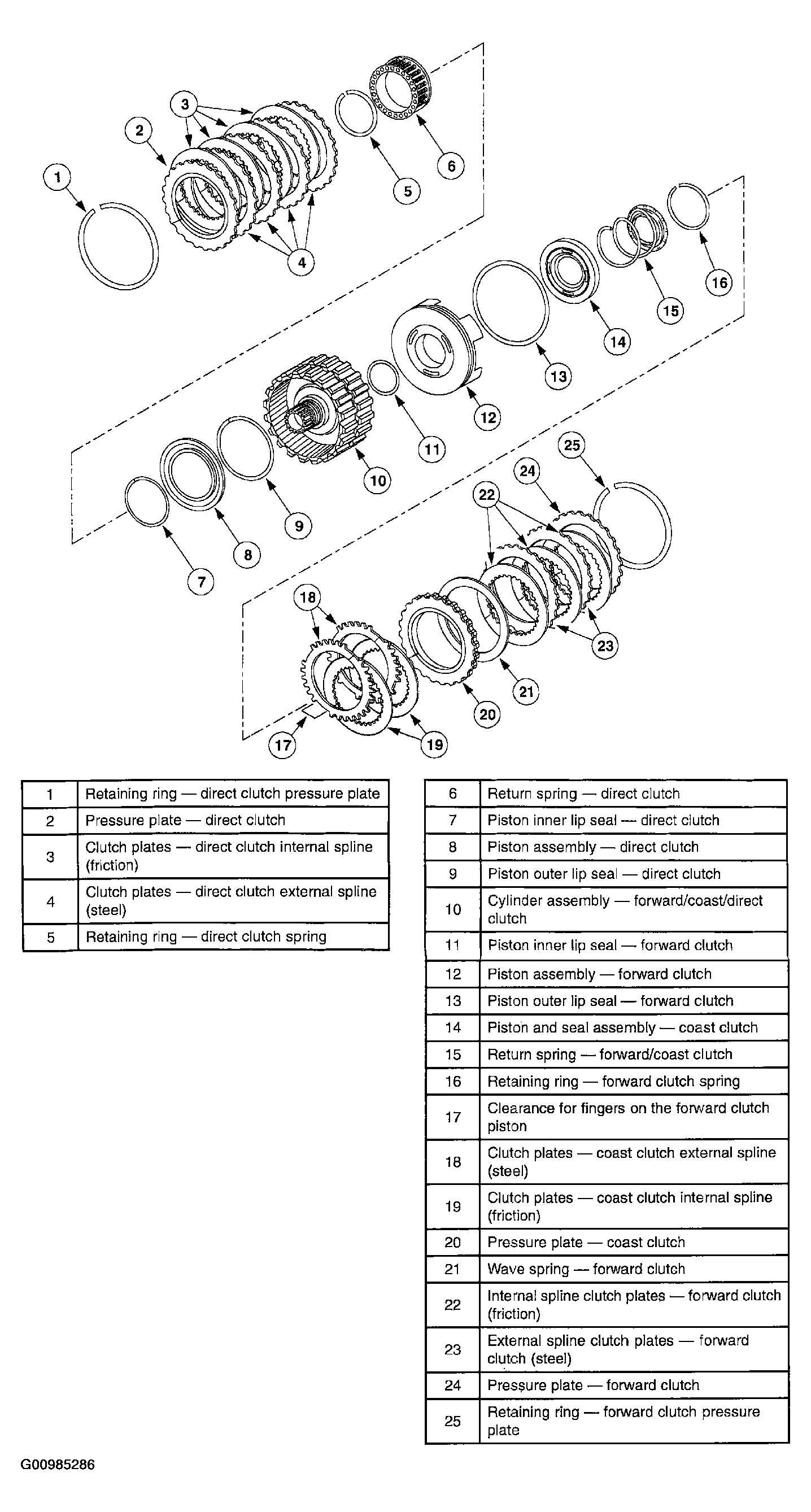

Fig 1: Exploded View Of Forward/Coast/Direct Clutches
G00985286Courtesy of MAZDA MOTORS CORP.
  1. Remove the direct clutch pressure plate retaining ring.

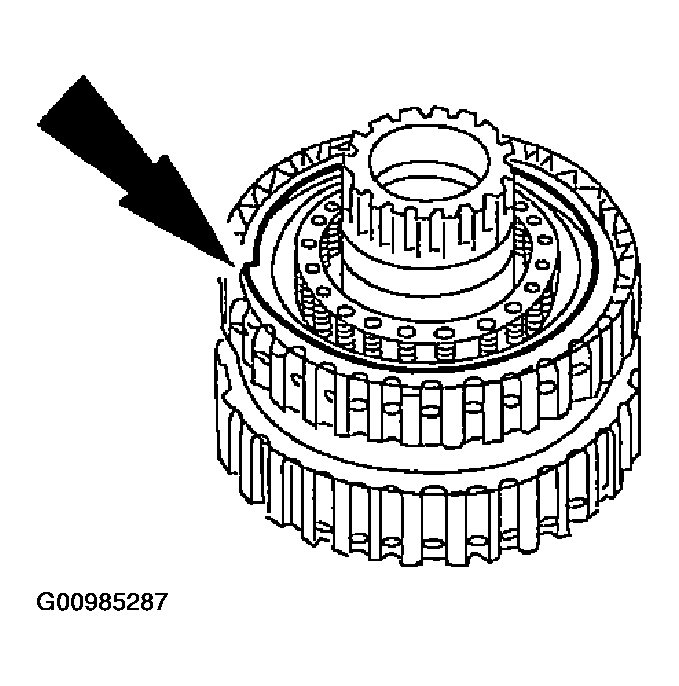

    Fig 2: Removing Direct Clutch Pressure Plate Retaining Ring
    G00985287Courtesy of MAZDA MOTORS CORP.
  2. Disassemble the direct clutch pack.
    1. Remove the direct clutch pressure plate.
    2. Remove the direct clutch steel plates.
    3. Remove the direct clutch friction plates.

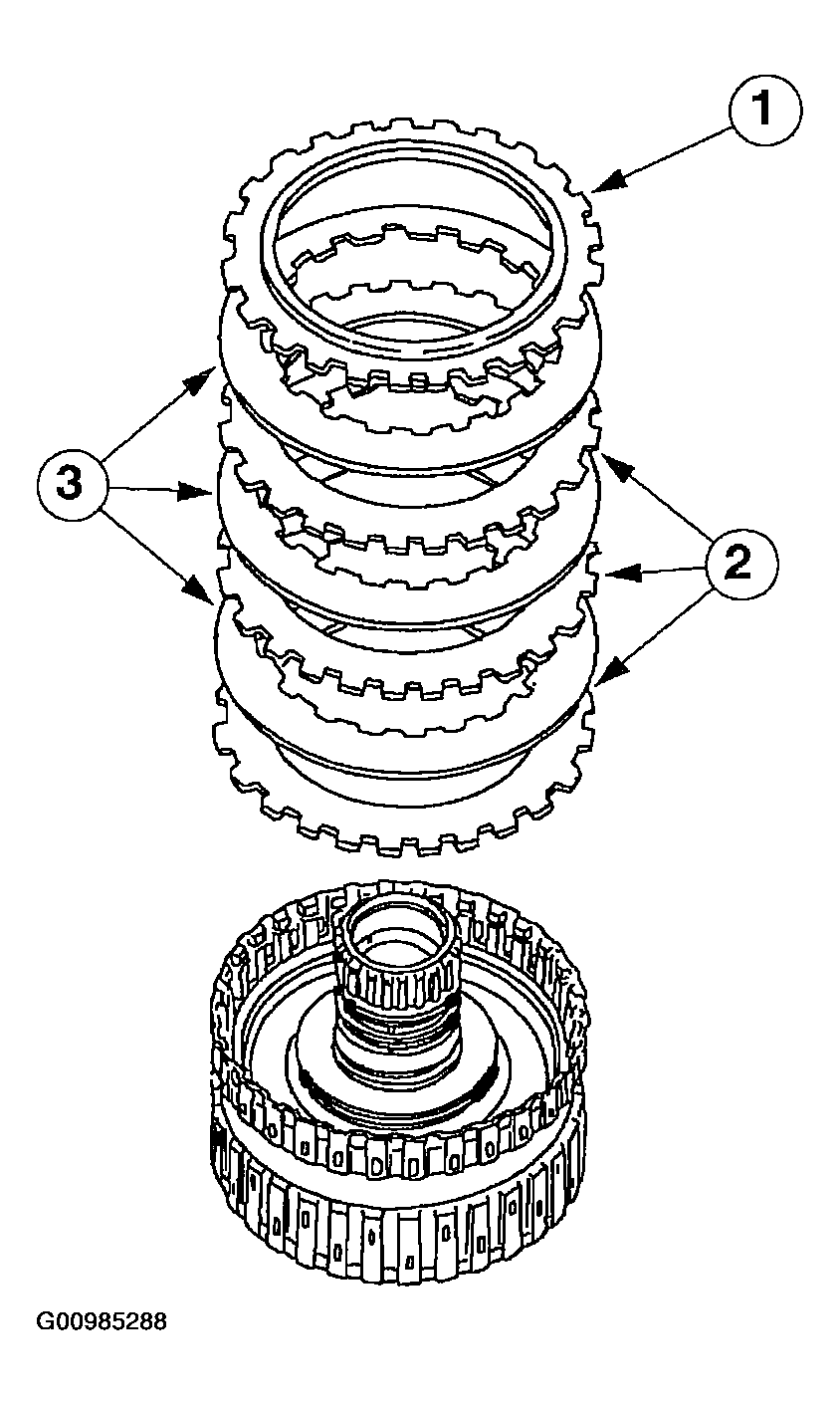

    Fig 3: Disassembling Direct Clutch Pack
    G00985288Courtesy of MAZDA MOTORS CORP.
    WARNING:
    • Use caution when releasing tool pressure on the clutch piston springs. Failure to follow these instructions may result in personal injury.
    CAUTION:
    • Do not compress the direct clutch return springs completely.
  3. Remove the direct clutch spring retaining ring.
    1. Using the special tool, compress the direct clutch return springs.
    2. Remove the direct clutch return spring retaining ring.

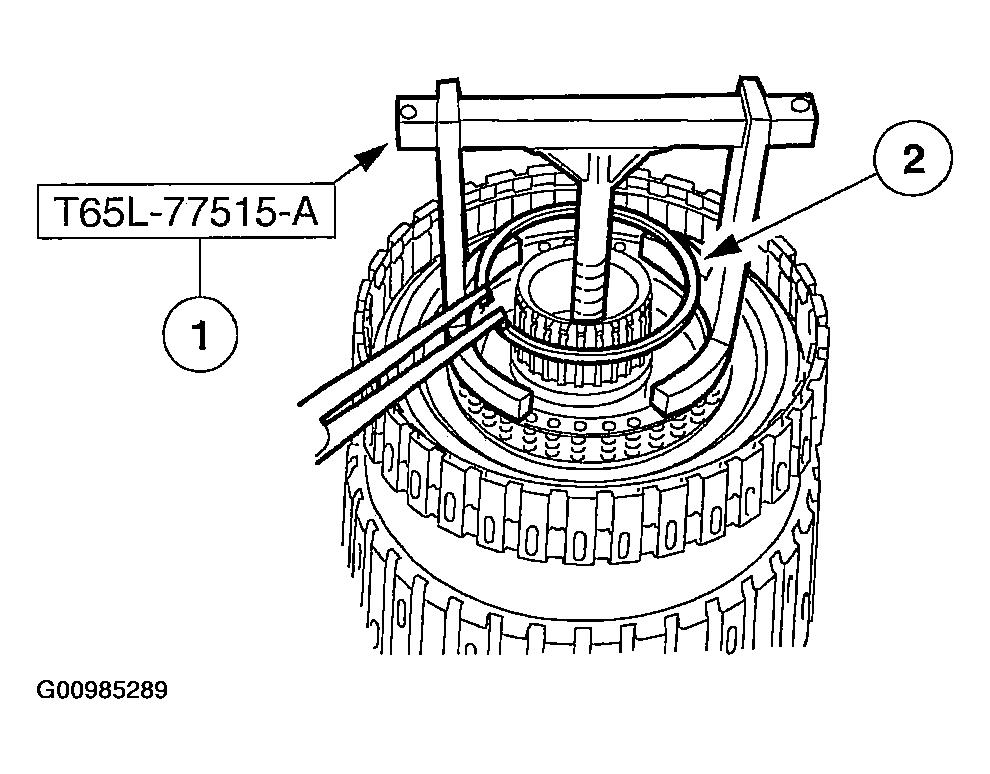

    Fig 4: Removing Direct Clutch Spring Retaining Ring
    G00985289Courtesy of MAZDA MOTORS CORP.
  4. Remove the direct clutch return spring assembly.

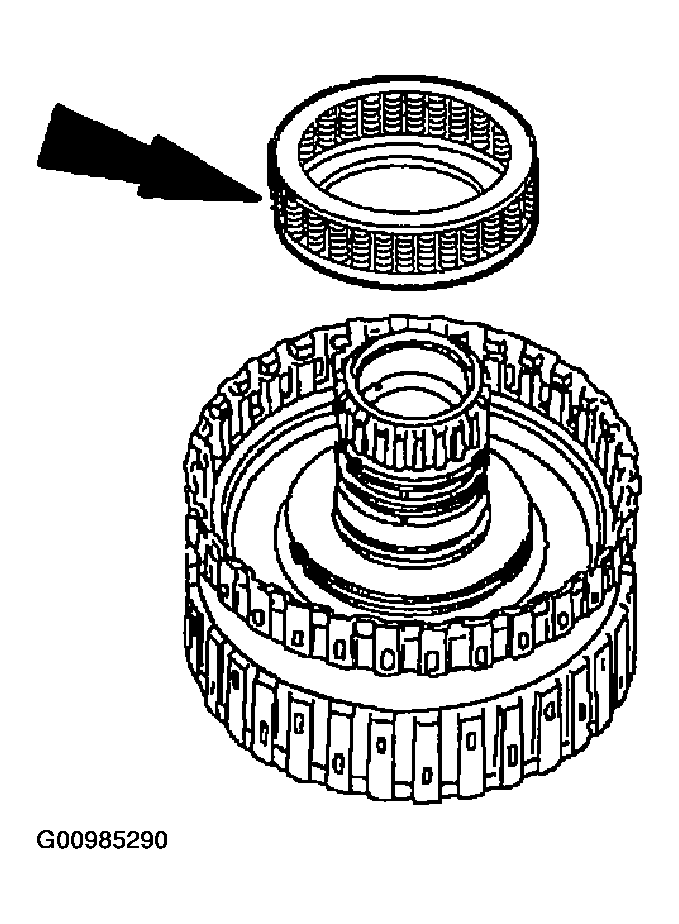

    Fig 5: Removing Direct Clutch Return Spring Assembly
    G00985290Courtesy of MAZDA MOTORS CORP.
  5. Remove the direct clutch piston assembly.

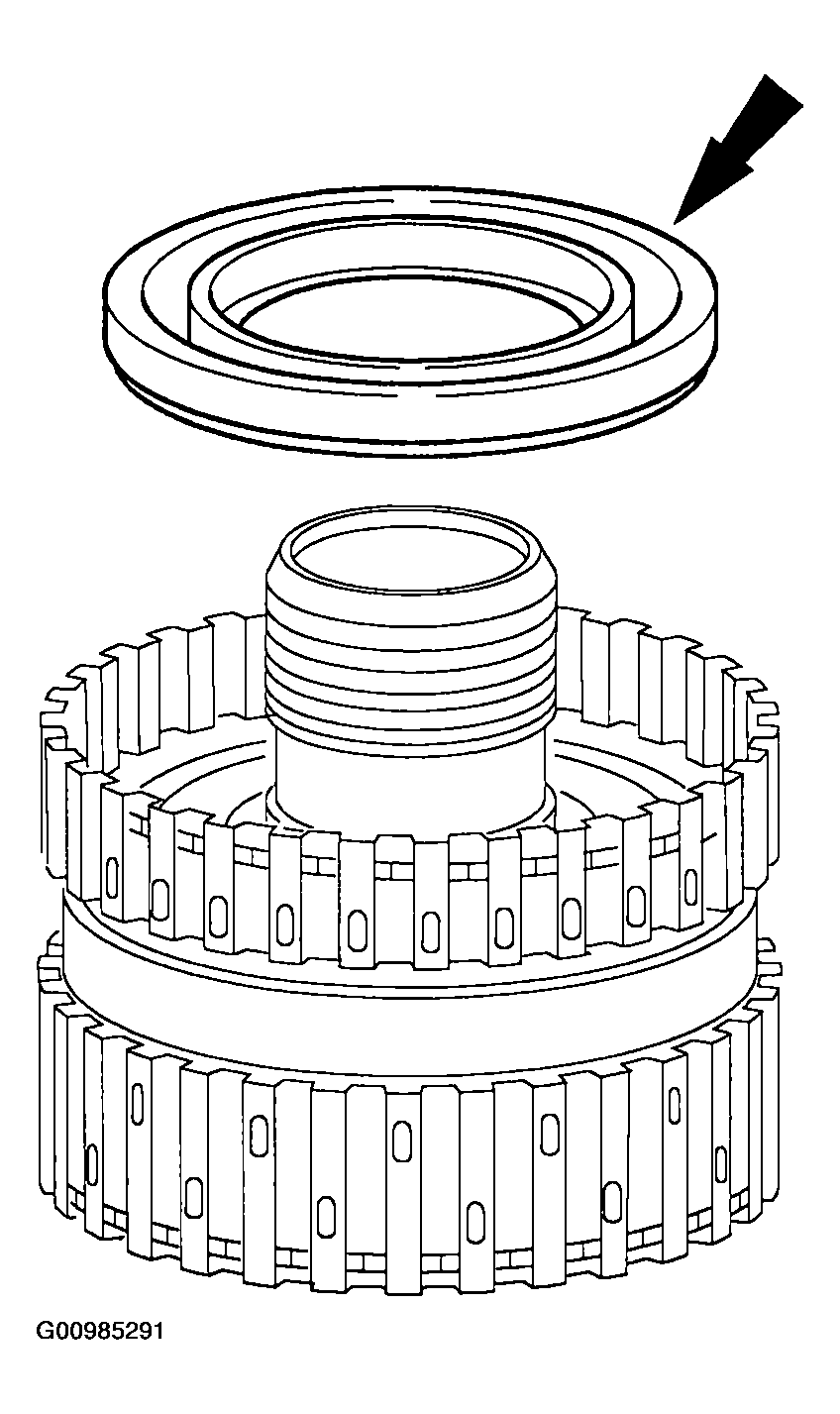

    Fig 6: Removing Direct Clutch Piston Assembly
    G00985291Courtesy of MAZDA MOTORS CORP.
  6. Remove and discard the direct clutch piston outer lip seal.
    Fig 7: Removing Direct Clutch Piston Outer Lip Seal
    G00985292Courtesy of MAZDA MOTORS CORP.

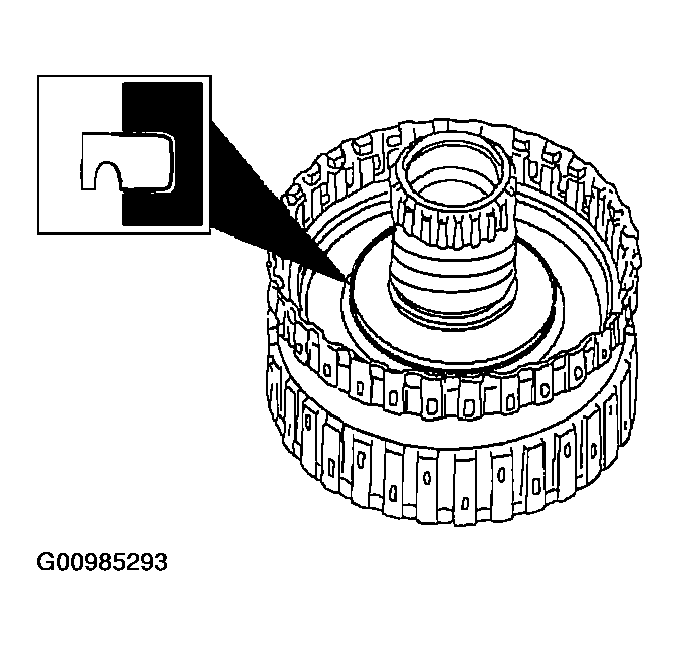

  7. Remove and discard the direct clutch piston inner lip seal from the forward/coast/direct clutch cylinder assembly.
    Fig 8: Removing Direct Clutch Piston Inner Lip Seal From Forward/Coast/Direct Clutch Cylinder Assembly
    G00985293Courtesy of MAZDA MOTORS CORP.
  8. Remove the forward clutch pressure plate retaining ring.

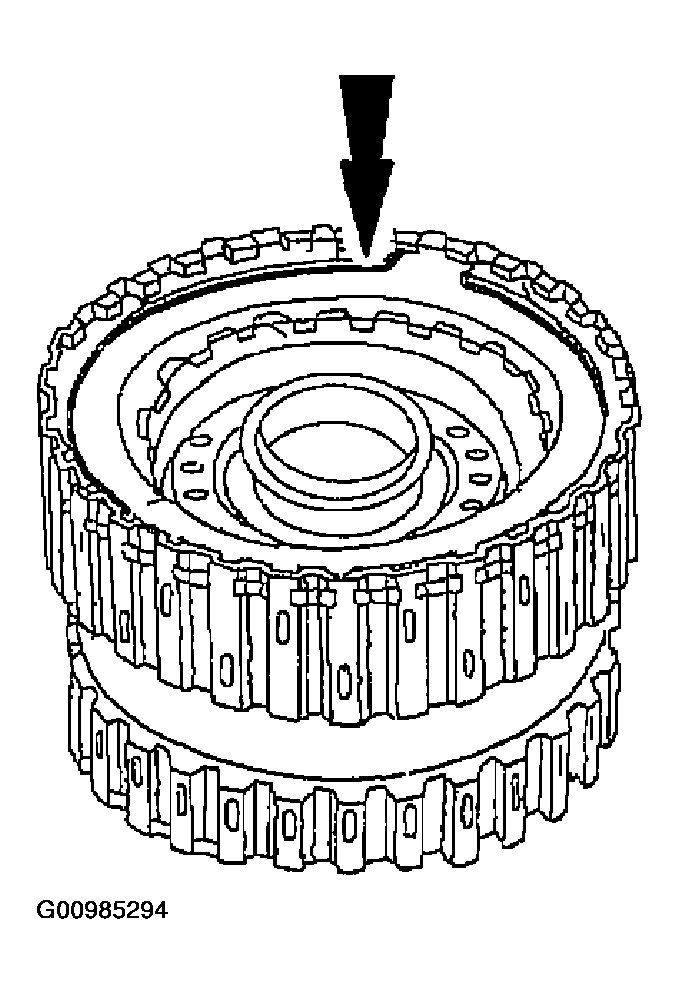

    Fig 9: Removing Forward Clutch Pressure Plate Retaining Ring
    G00985294Courtesy of MAZDA MOTORS CORP.
  9. Remove the forward and coast clutch plates.
    1. Forward clutch pressure plate.
    2. Forward clutch external spline clutch plates (steel).
    3. Coast clutch internal spline clutch plates (friction).
    4. Coast clutch external spline clutch plates (steel).
    5. Coast clutch pressure plate.
    6. Forward clutch internal spline clutch plates (friction).
    7. Forward clutch wave spring.

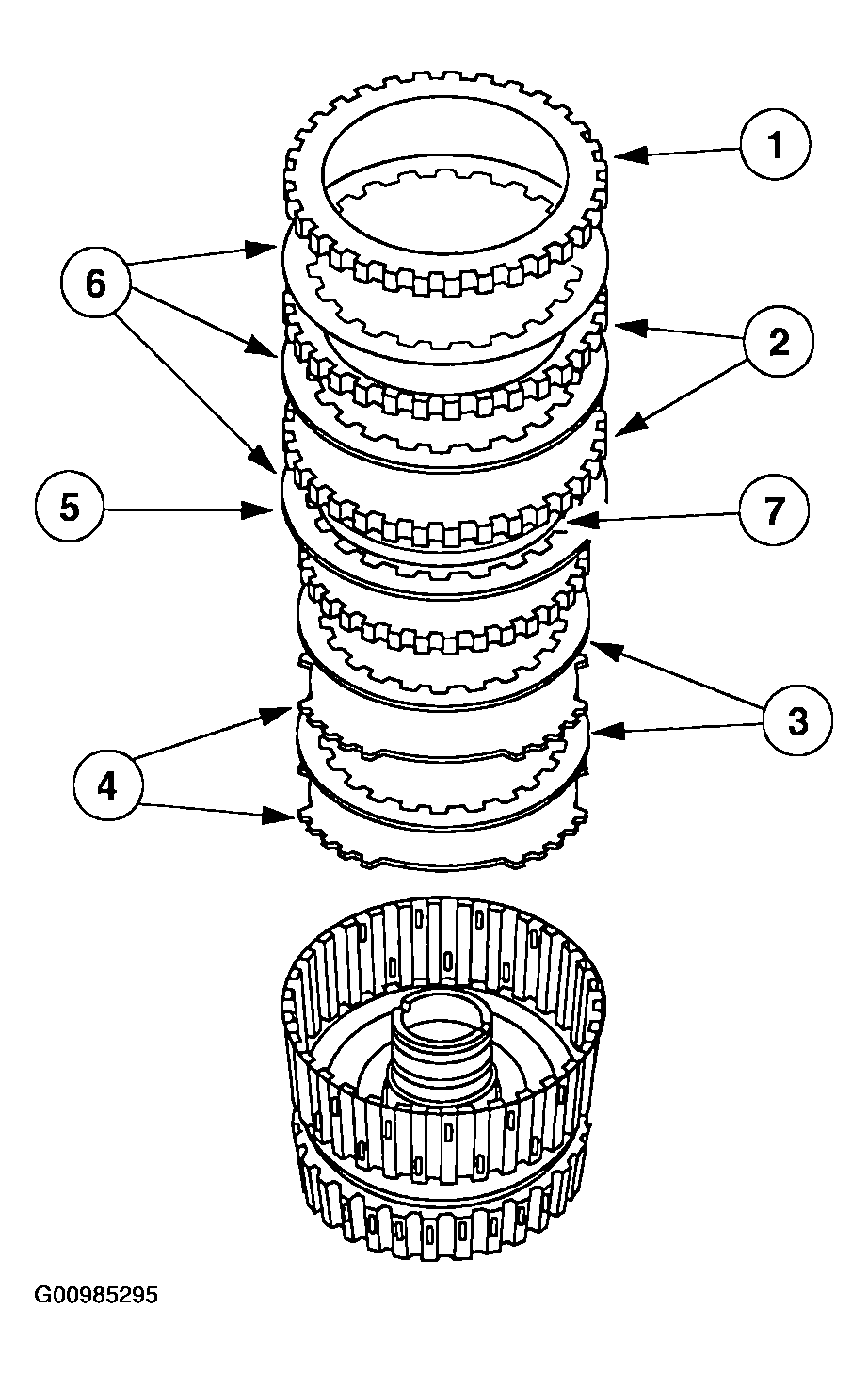

    Fig 10: Removing Forward & Coast Clutch Plates
    G00985295Courtesy of MAZDA MOTORS CORP.
    WARNING:
    • Use caution when releasing tool pressure on the clutch piston springs. Failure to follow these instructions can result in personal injury.
    CAUTION:
    • Do not compress the return springs completely.
  10. Remove the forward/coast clutch return spring retaining ring.
    1. Using the special tool, compress the return spring.
    2. Remove the retaining ring.

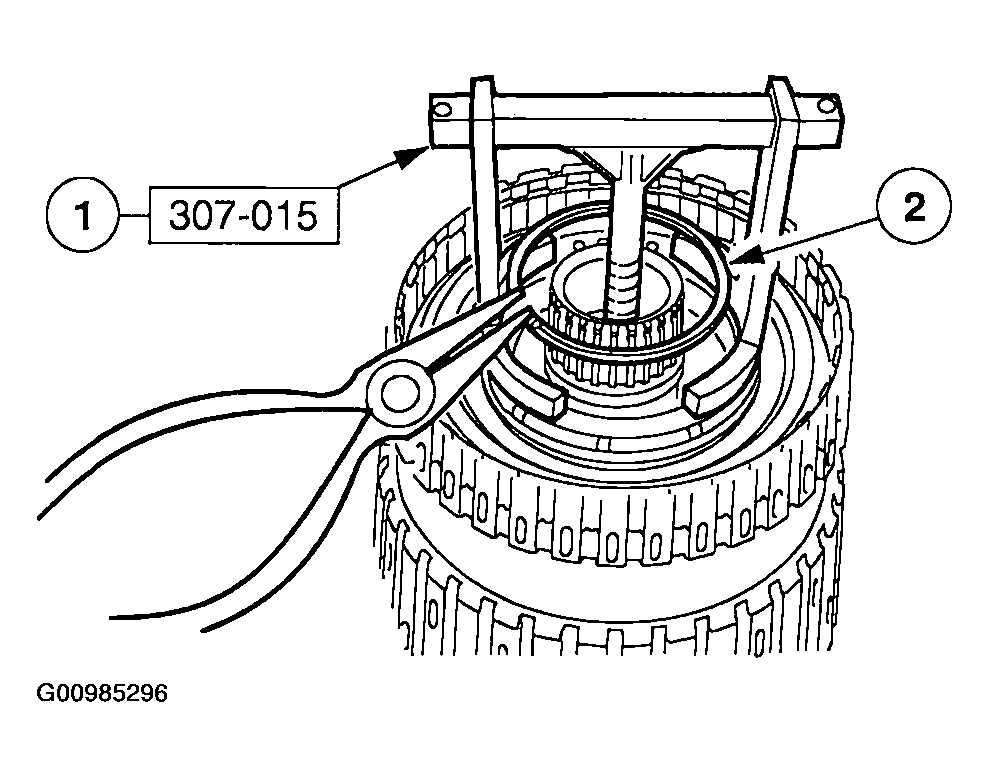

    Fig 11: Removing Forward/Coast Clutch Return Spring Retaining Ring
    G00985296Courtesy of MAZDA MOTORS CORP.
  11. Remove the forward/coast clutch return spring assembly.

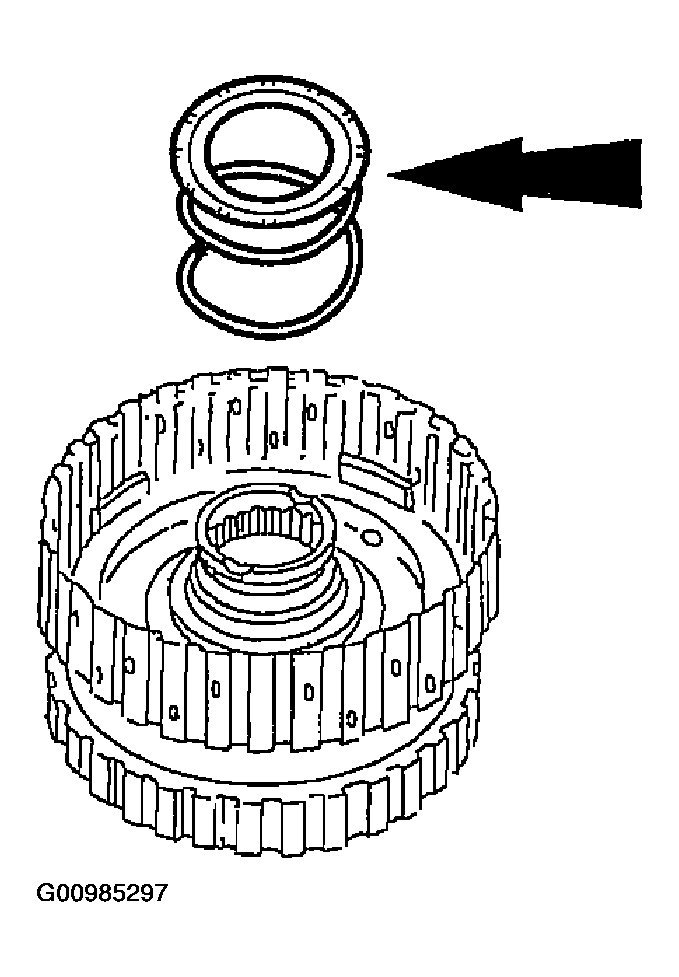

    Fig 12: Removing Forward/Coast Clutch Return Spring Assembly
    G00985297Courtesy of MAZDA MOTORS CORP.
  12. Remove the forward and coast clutch pistons.

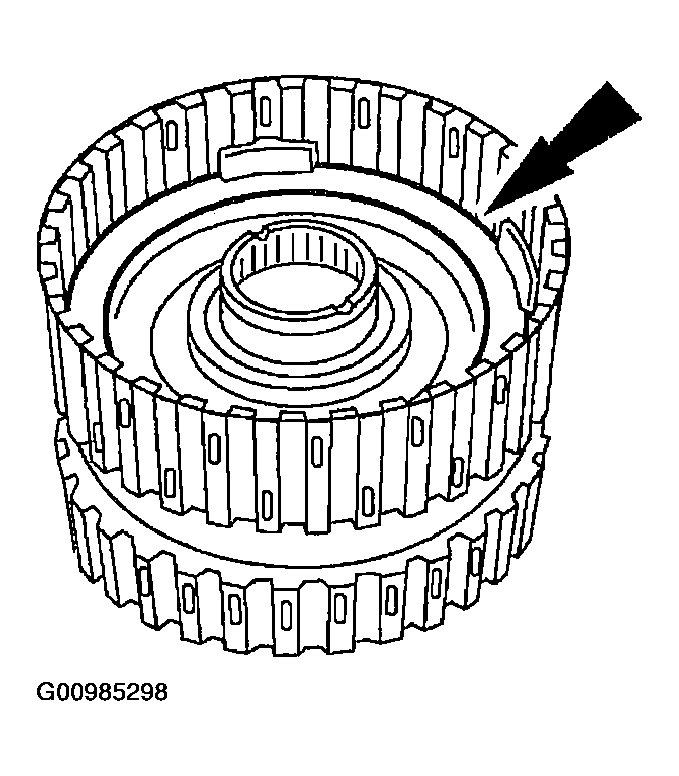

    Fig 13: Removing Forward & Coast Clutch Pistons
    G00985298Courtesy of MAZDA MOTORS CORP.
  13. Using the special tool, remove and discard the forward clutch piston inner seal from the forward/coast/direct clutch cylinder assembly.

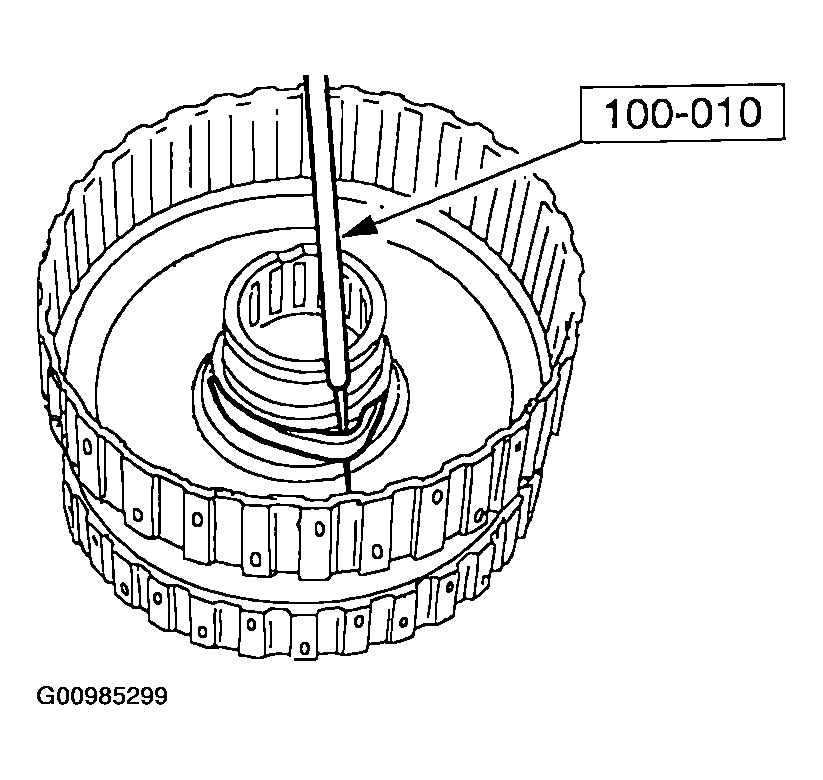

    Fig 14: Removing Forward Clutch Piston Inner Seal From Forward/Coast/Direct Clutch Cylinder Assembly
    G00985299Courtesy of MAZDA MOTORS CORP.
  14. Remove and discard the forward clutch piston outer lip seal.
    Fig 15: Removing Forward Clutch Piston Outer Lip Seal
    G00985300Courtesy of MAZDA MOTORS CORP.
  15. Separate the coast clutch piston assembly from the forward clutch piston assembly.
    Fig 16: Separating Coast Clutch Piston Assembly From Forward Clutch Piston Assembly
    G00985301Courtesy of MAZDA MOTORS CORP.
    WARNING:
    • Air pressure must not exceed 138 kPa (20 psi). Wear safety glasses when using compressed air. Failure to follow these instructions can result in personal injury.
    NOTE:
    • Do not clean the clutch plates in a vapor degreaser or in any other type of detergent solution.
  16. Clean all parts thoroughly in a clean solvent and blow dry with moisture-free regulated compressed air.
    1. Clean the steel clutch plates with a lint-free cloth.
    2. Soak the new clutch plates in the specified transaxle fluid for 30 minutes before assembly.
  17. Inspect the parts for damage or wear.
    1. Spline Teeth
    2. Clutch Plates
    3. Seals
    4. Bushing
    5. Check Balls In Pistons
    6. Piston Bore
    7. Passages and lubrication holes in the forward/coast/direct clutch cylinder.
