Assembly Note

WARNING:
  • Air pressure must not exceed 138 kPa (20 psi). Wear safety glasses when using compressed air. Failure to follow these instructions can result in personal injury.
CAUTION:
  • If the valve sticks in its bore and cannot be freed, install a new main control valve body.
NOTE:
  • Clean the main control valve body and accumulator body assembly of the main control in cleaning solvent. Blow dry with moisture-free regulated compressed air. The solenoid valve body should not be cleaned in cleaning solvent. It may be blown clean with compressed air or wiped clean with a lint-free cloth.
  1. Install a new intermediate and overdrive accumulator plug seal and coat with petroleum jelly.
    Fig 1: Installing Intermediate & Overdrive Accumulator Plug Seal
    G00985344Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • Do not install the intermediate and overdrive accumulator valve plug and seal too far into the bore and damage the seal. Only push the intermediate and overdrive accumulator valve plug until it is flush with the accumulator body assembly.
  2. Install the intermediate and overdrive accumulator valve plug.
    Fig 2: Installing Intermediate & Overdrive Accumulator Valve Plug
    G00985345Courtesy of MAZDA MOTORS CORP.
  3. Install the intermediate and overdrive accumulator valve plug retaining plate.
    Fig 3: Installing Intermediate & Overdrive Accumulator Valve Plug Retaining Plate
    G00985346Courtesy of MAZDA MOTORS CORP.
  4. Install the special tool.

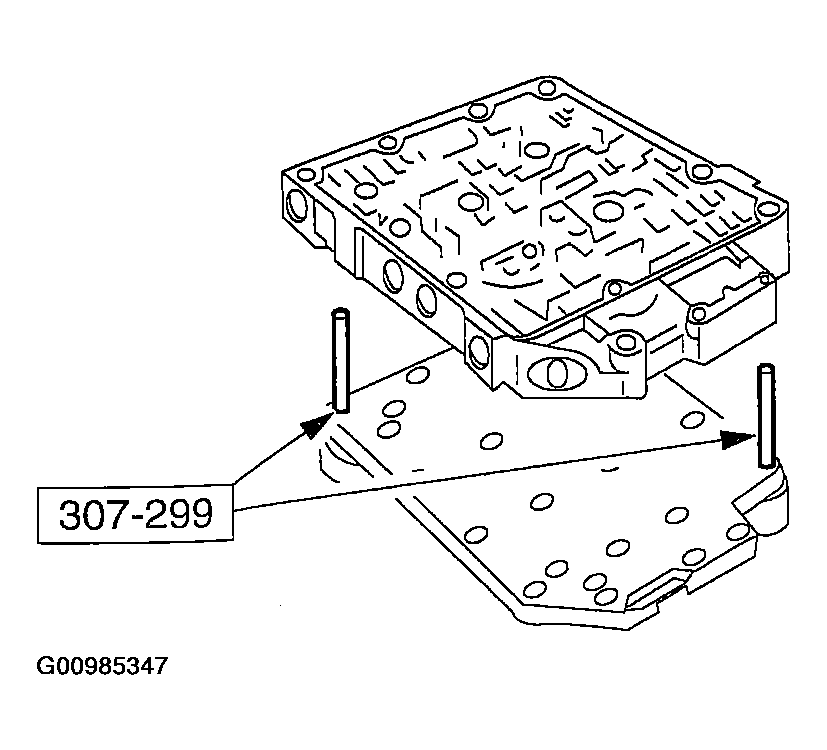

    Fig 4: Installing Special Tool
    G00985347Courtesy of MAZDA MOTORS CORP.
  5. Using the special tool, install the valve body separator plate gaskets and valve body separator plate.
    1. Install a new valve body separator plate gasket.
    2. Install the valve body separator plate.
    3. Install a new valve body separator plate gasket.

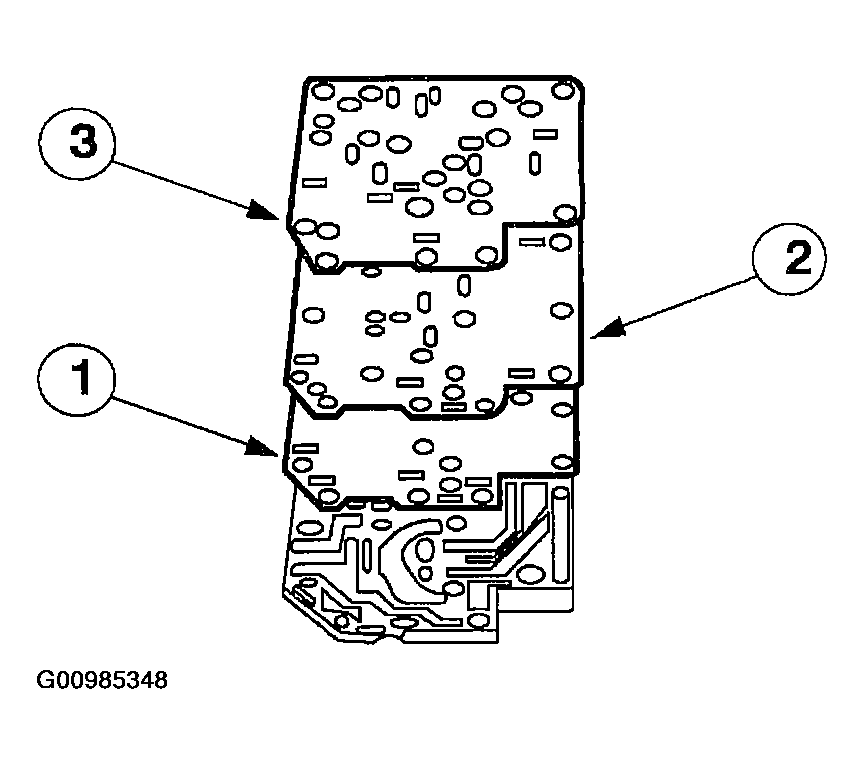

    Fig 5: Installing Valve Body Separator Plate Gaskets & Valve Body Separator Plate
    G00985348Courtesy of MAZDA MOTORS CORP.
  6. Using the special tool, install the main control valve body.

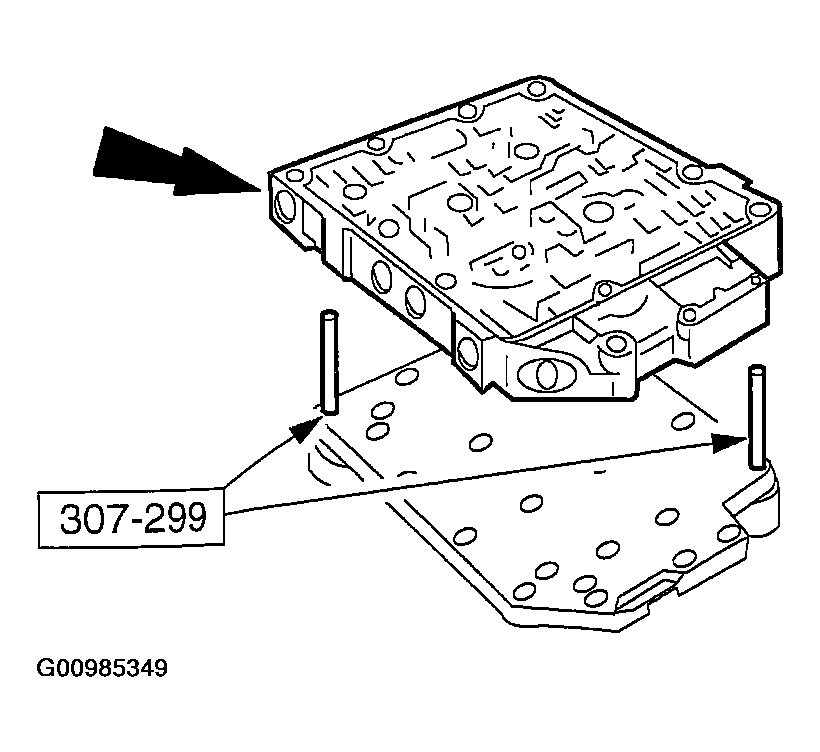

    Fig 6: Installing Main Control Valve Body
    G00985349Courtesy of MAZDA MOTORS CORP.
  7. Using the special tool, install the accumulator body separator plate and gaskets.
    1. Install a new accumulator body separator plate gasket.
    2. Install the accumulator body separator plate.
    3. Install a new accumulator body separator plate gasket.

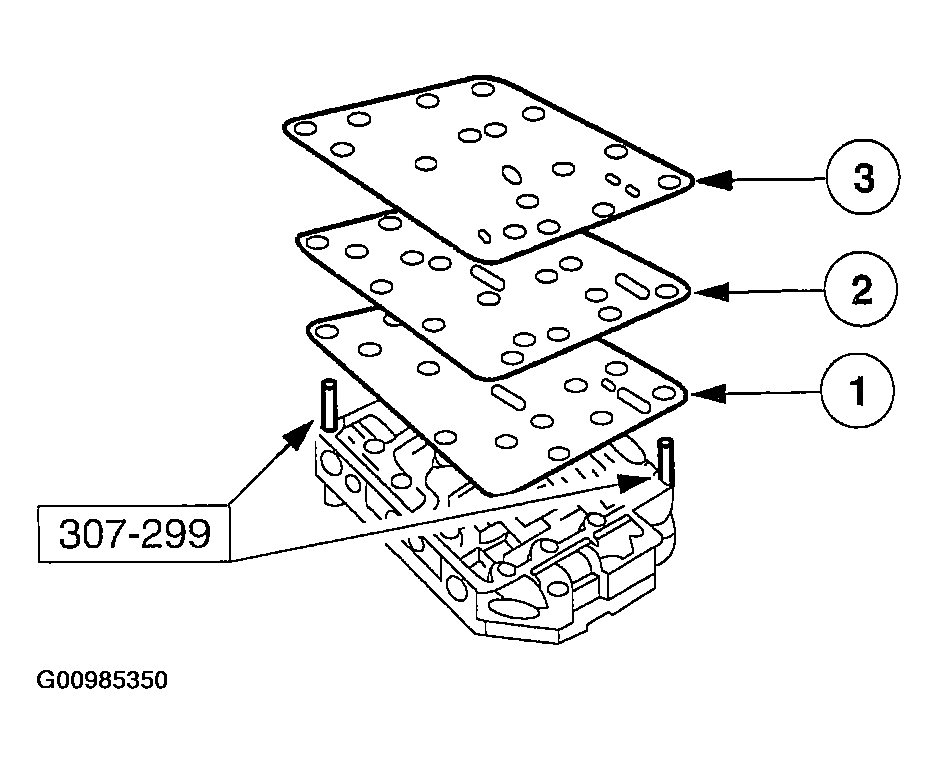

    Fig 7: Installing Accumulator Body Separator Plate & Gaskets
    G00985350Courtesy of MAZDA MOTORS CORP.
  8. Using the special tool, install the accumulator body assembly.

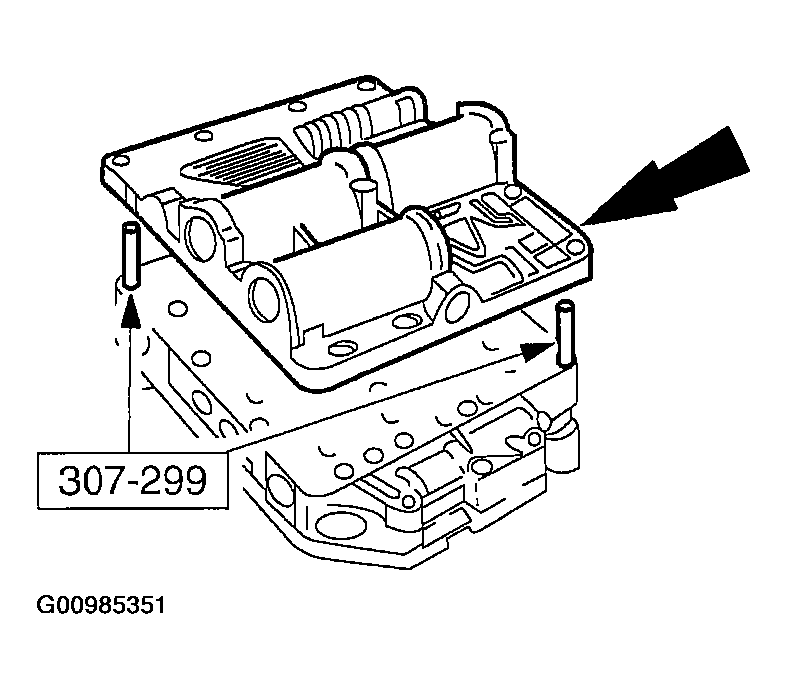

    Fig 8: Installing Accumulator Body Assembly
    G00985351Courtesy of MAZDA MOTORS CORP.
  9. Starting with the bolts in the middle and working outward, install the accumulator body transfer plate.

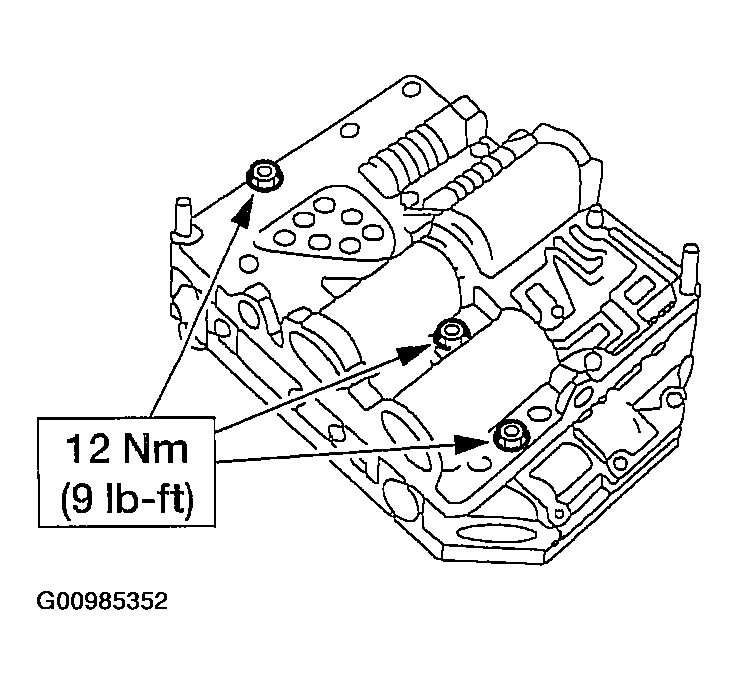

    Fig 9: Installing Accumulator Body Transfer Plate
    G00985352Courtesy of MAZDA MOTORS CORP.
  10. Starting with the bolts in the middle and working outward, install the main control valve body to transfer plate.
    1. Install the manual valve detent spring.
    2. Install the control valve body to transfer plate bolts.
    Fig 10: Installing Main Control Valve Body To Transfer Plate
    G00985353Courtesy of MAZDA MOTORS CORP.
  11. Install a new pressure tap plate gasket.

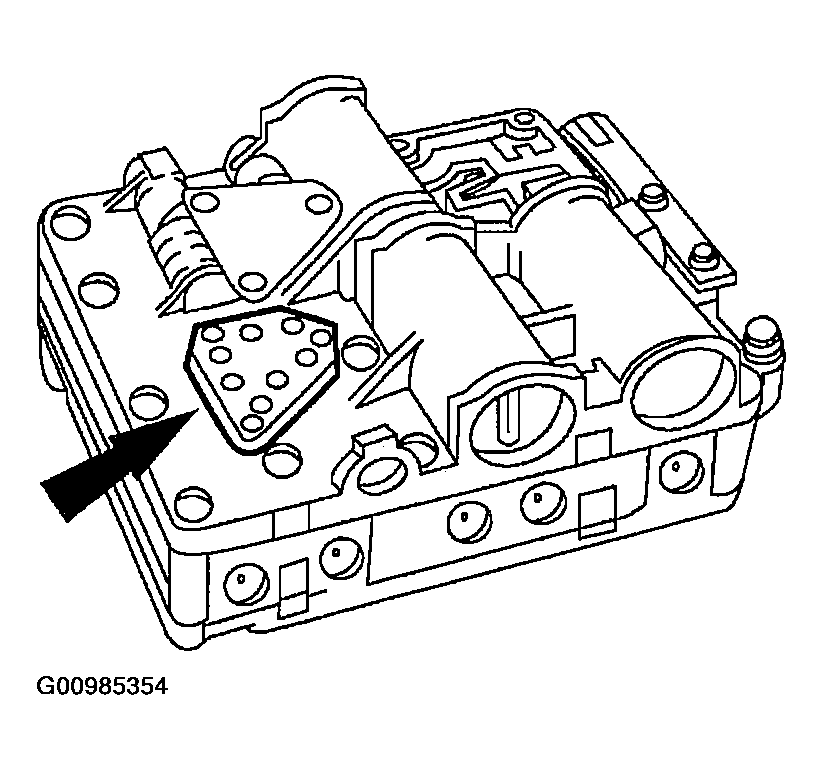

    Fig 11: Installing Pressure Tap Plate Gasket
    G00985354Courtesy of MAZDA MOTORS CORP.
  12. Install the pressure tap plate and bolts.

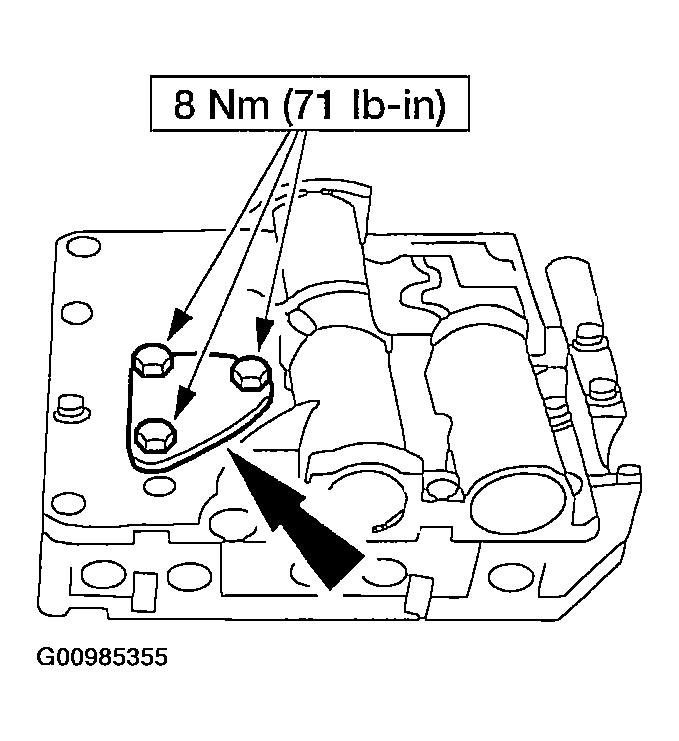

    Fig 12: Installing Pressure Tap Plate & Bolts
    G00985355Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • Match the solenoid valve body gasket to passages.
  13. Install the solenoid valve body.
    1. Install the solenoid valve body gasket.
    2. Install the solenoid valve body.
    3. Install the two solenoid valve body bolts.
    4. Remove the special tool.
    Fig 13: Installing Solenoid Valve Body
    G00985356Courtesy of MAZDA MOTORS CORP.

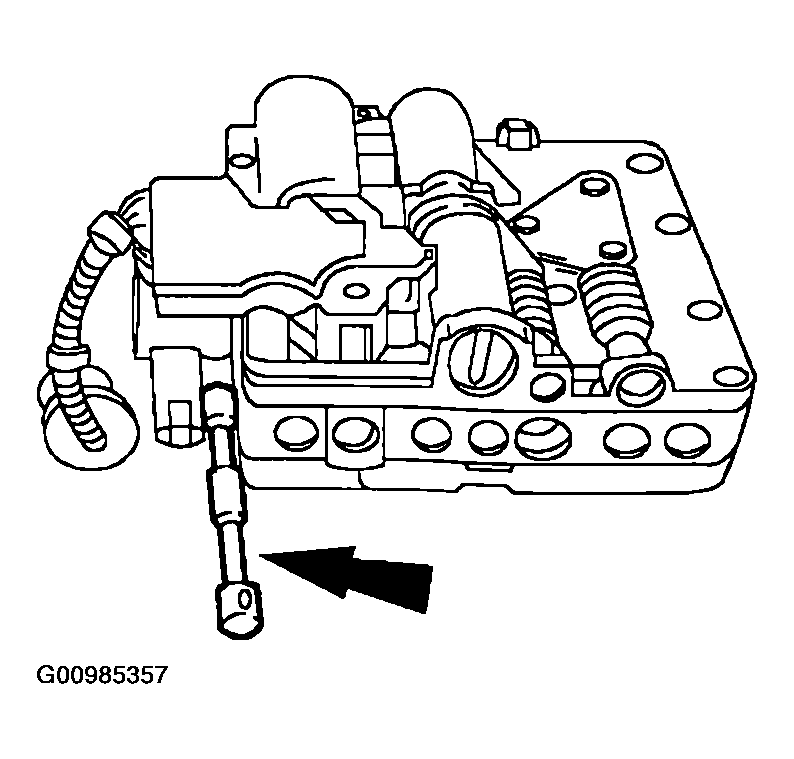

  14. Install the manual valve.
    Fig 14: Installing Manual Valve
    G00985357Courtesy of MAZDA MOTORS CORP.
