Modular Audio - Lower Module Removal and Installation: Notes

  1. Disconnect the battery cables. Refer to BATTERY DISCONNECT .
  2. Remove the audio unit. Refer to Removal and Installation  .
  3. Remove in the order indicated in the table.

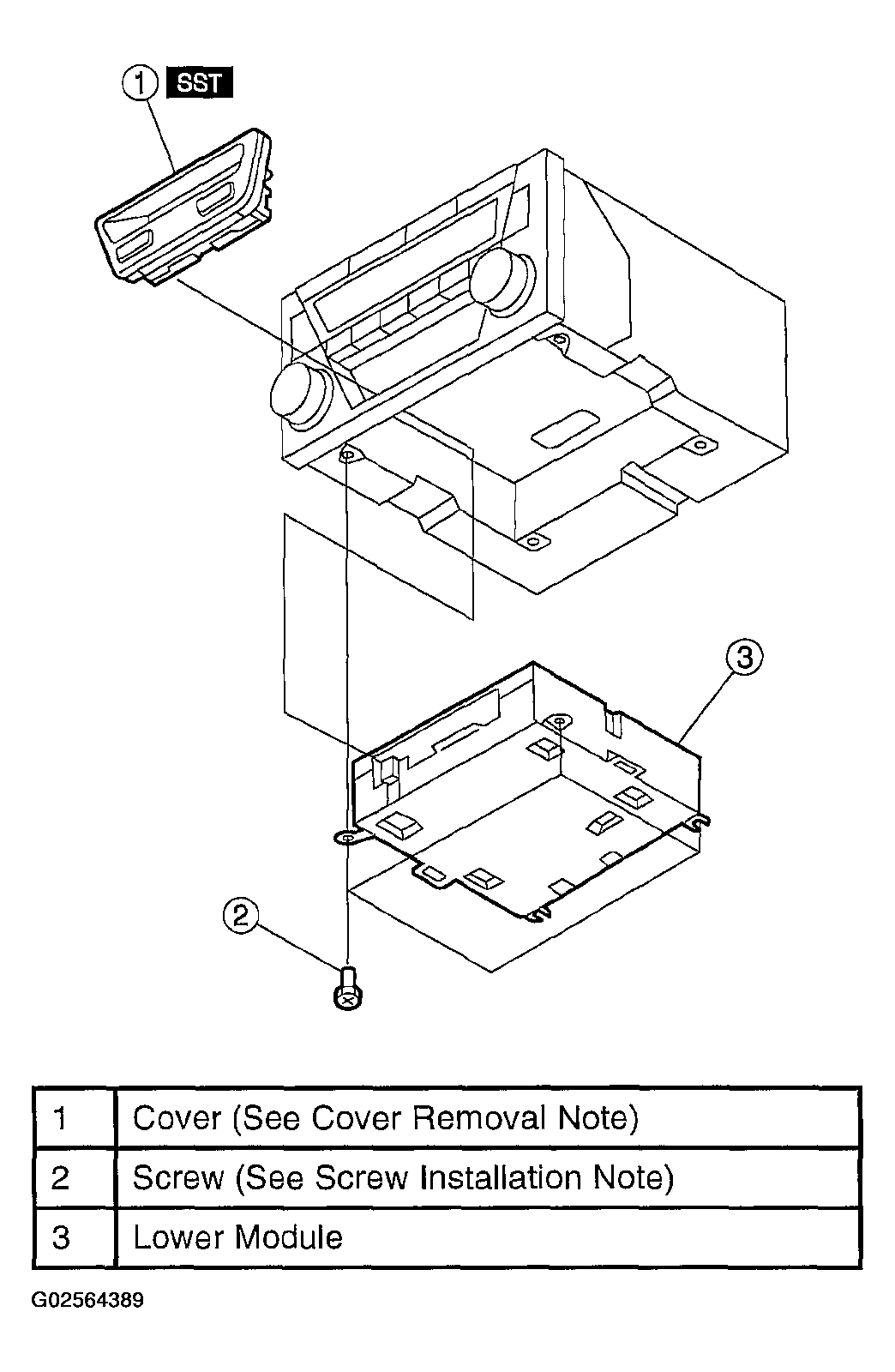

    Fig 1: Removing Lower Module
    G02564389Courtesy of MAZDA MOTORS CORP.
  4. To install, reverse the removal procedure.
