Upper Module Removal Note

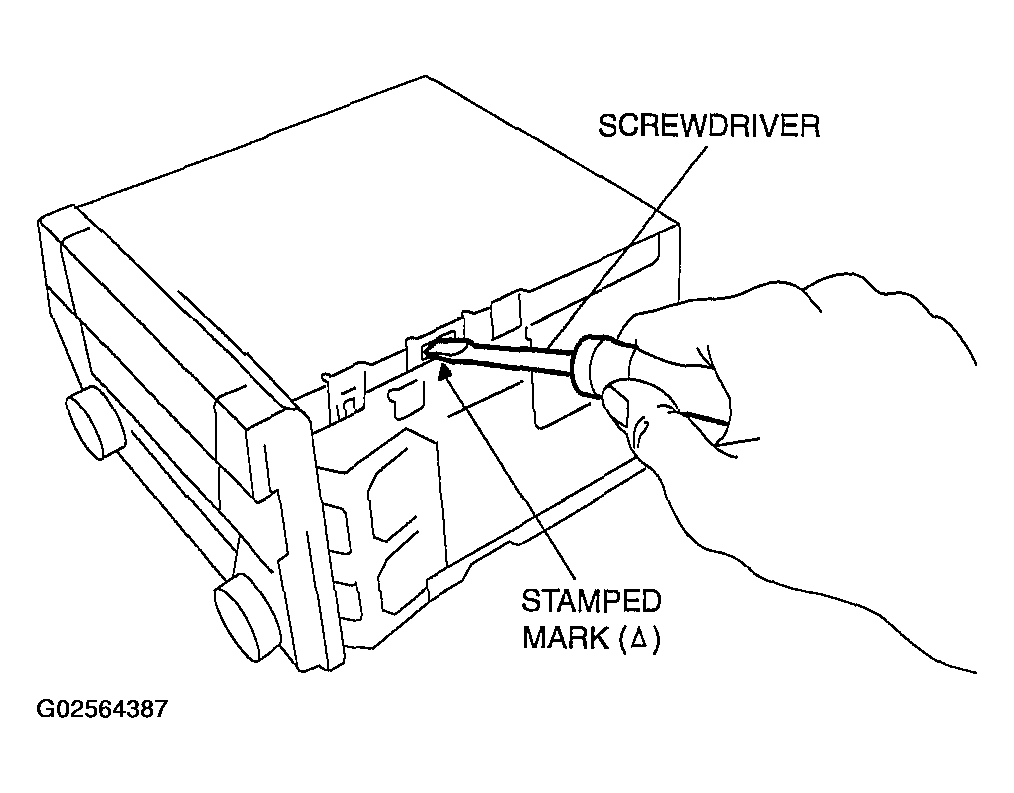

Fig 1: Inserting Screwdriver Into Stamped Mark
G02564387Courtesy of MAZDA MOTORS CORP.
  1. Insert a screwdriver into the hole stamped mark.
  2. To remove, lift the upper module by pushing down the screwdriver's handle
