Removal and Installation

Disconnect the battery ground cable. Refer to BATTERY DISCONNECT .

Fig 1: Removing Upper Steering Column Shroud
Courtesy of MAZDA MOTORS CORP.
Remove the upper steering column shroud.

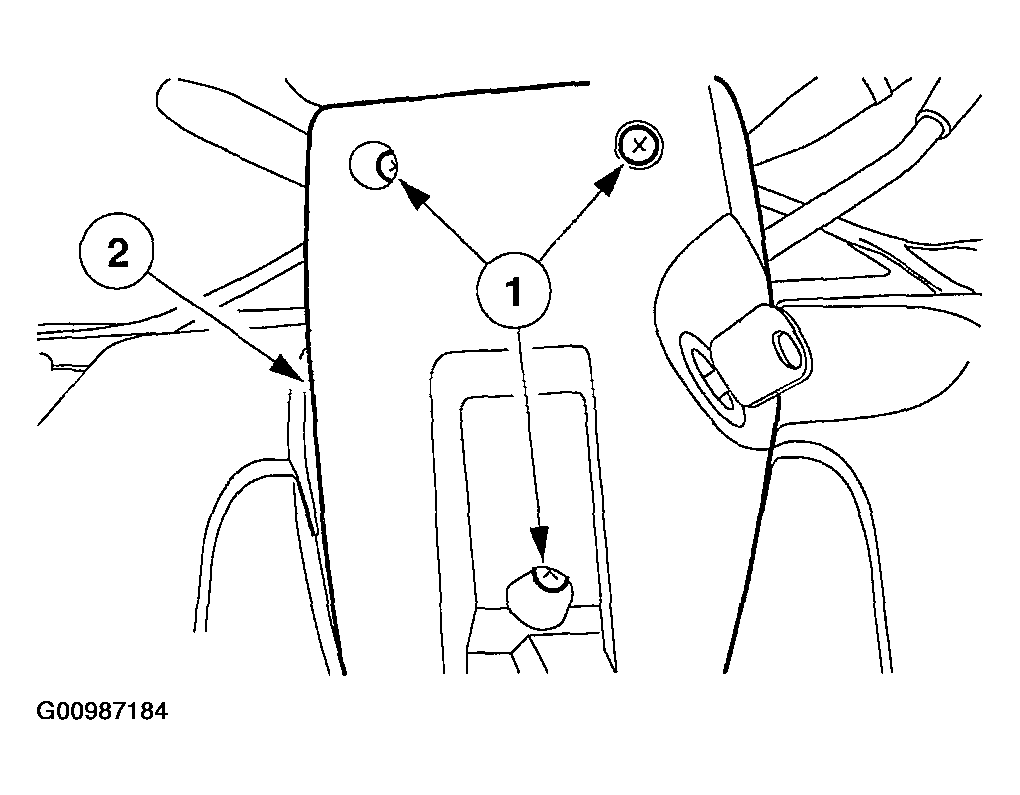

Fig 2: Removing Lower Steering Column Shroud
Courtesy of MAZDA MOTORS CORP.
Remove the lower steering column shroud.
1. Remove the screws.
2. Remove the lower steering column shroud.

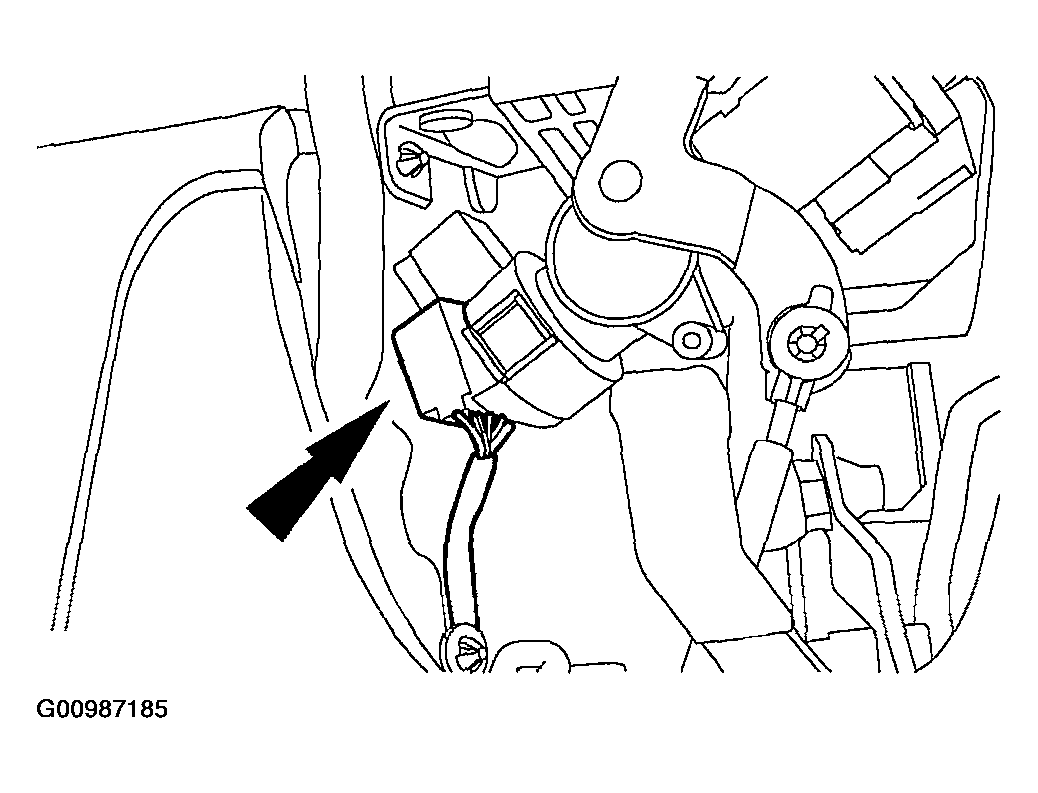

Fig 3: Disconnecting Ignition Switch Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the ignition switch electrical connector.

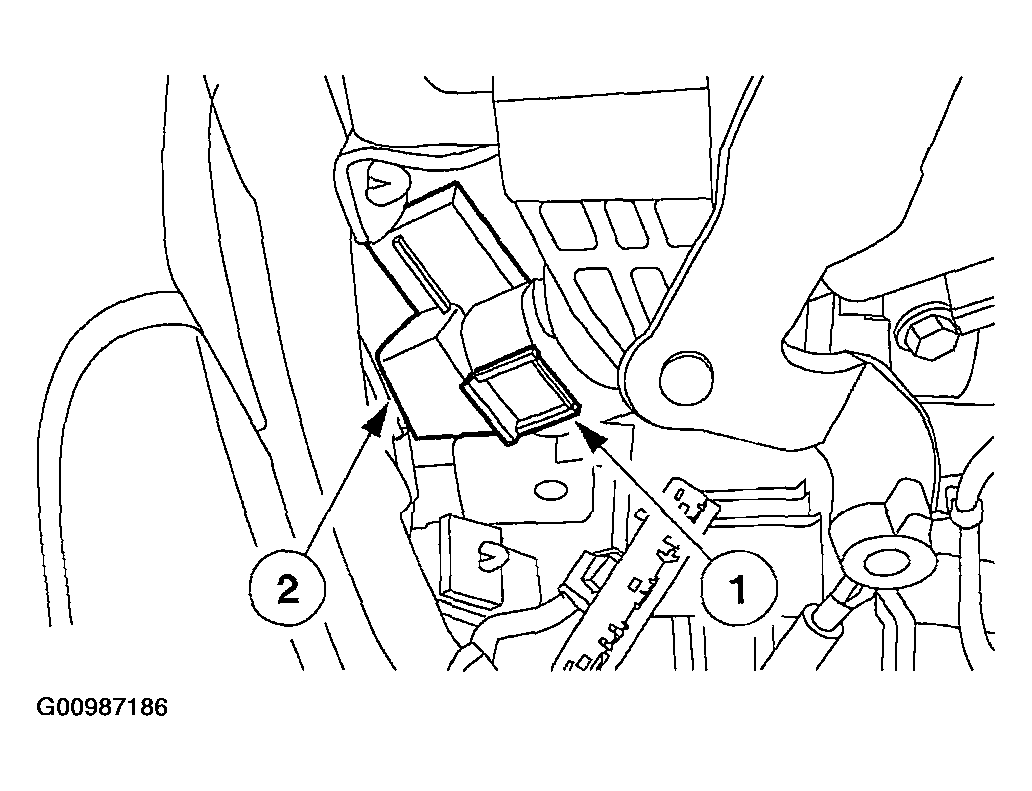

Fig 4: Removing Ignition Switch
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Lower steering column to lowest tilt position.
Remove the ignition switch.
1. Depress the two tabs.
2. Remove the ignition switch.
To install, reverse the removal procedure.
