Mazda
>>
2004
>>
Tribute ES, FWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Adjustment
>>
Technical Data [Transmission)
>>
Specifications
>>
Automatic Transaxle
>>
Reference: Pressure Chart No. 401
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Reference: Pressure Chart No. 401

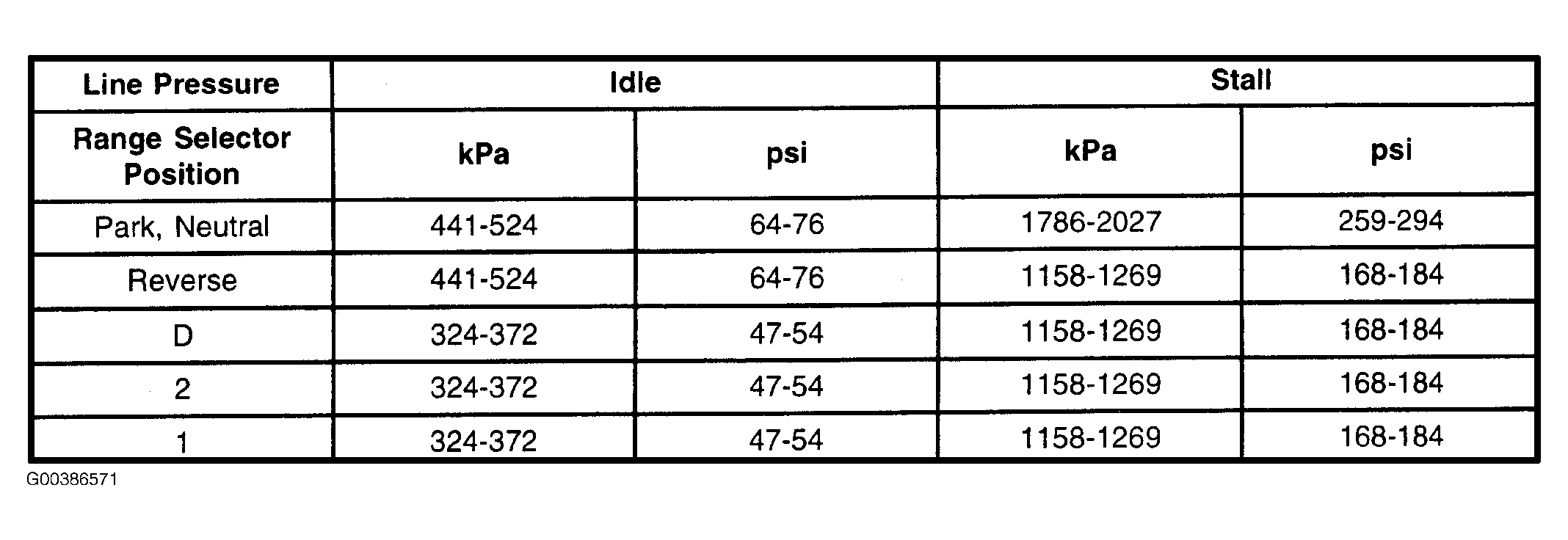

Fig 1: Pressure Chart No. 401
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
