Removal & Installation

Remove the generator. Refer to GENERATOR .
Disconnect the cylinder head temperature (CHT) sensor electrical connector.

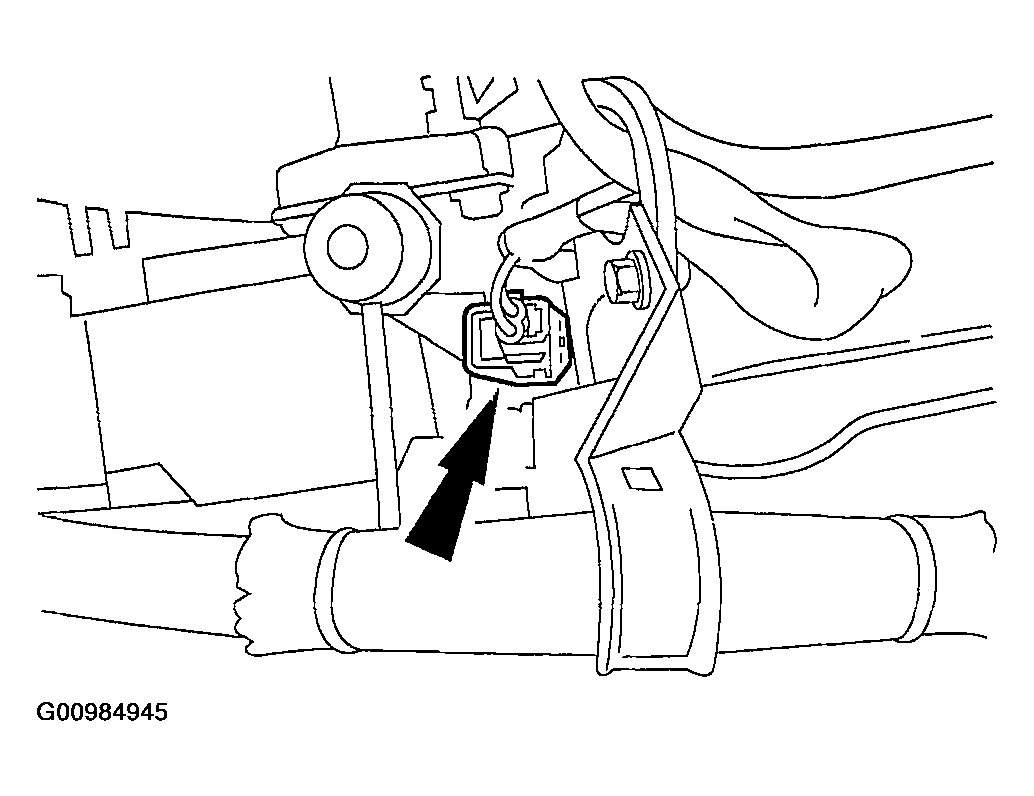

Fig 1: Identifying CHT Sensor Electrical Connector (2.0L)
Courtesy of MAZDA MOTORS CORP.
Remove the CHT sensor.

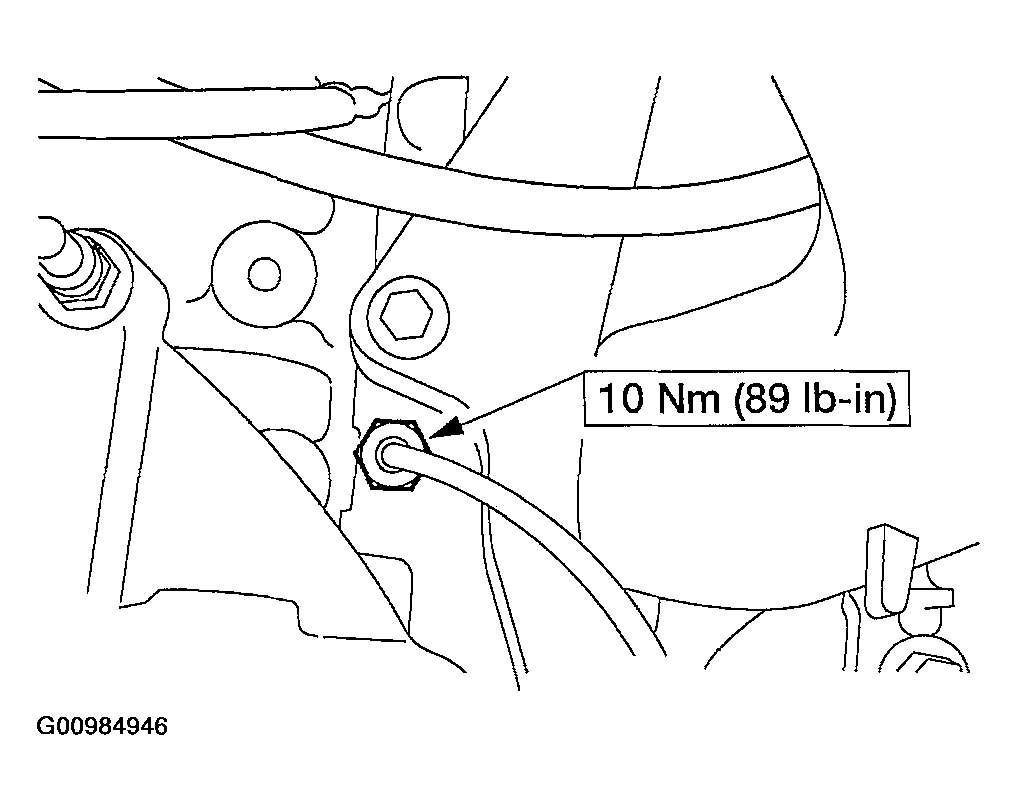

Fig 2: Identifying CHT Sensor (2.0L)
Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.
