WARNING: This page is about a different car, the 2005 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

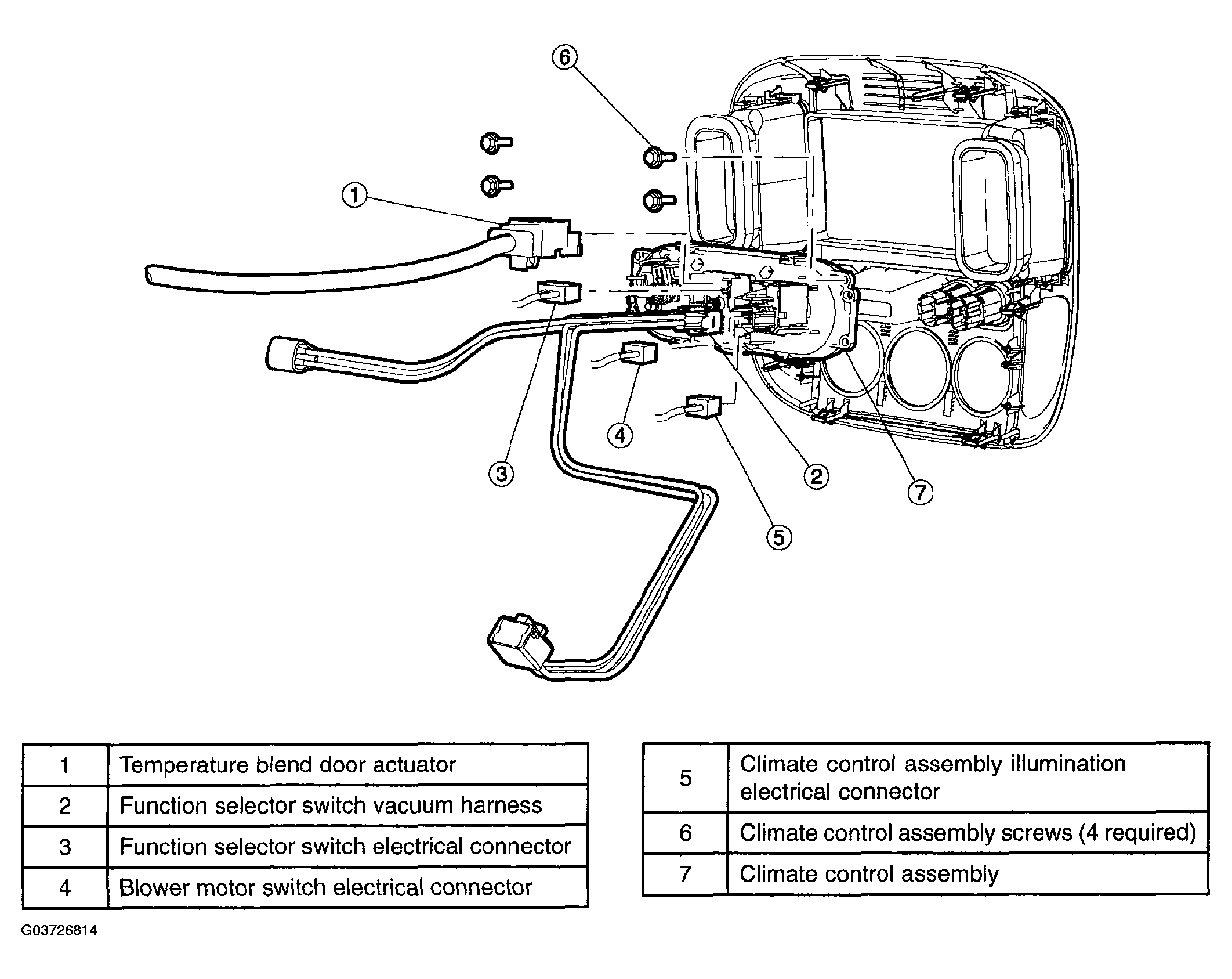

Fig 1: Identifying Climate Control Assembly (Items 1-7)
Courtesy of MAZDA MOTORS CORP.

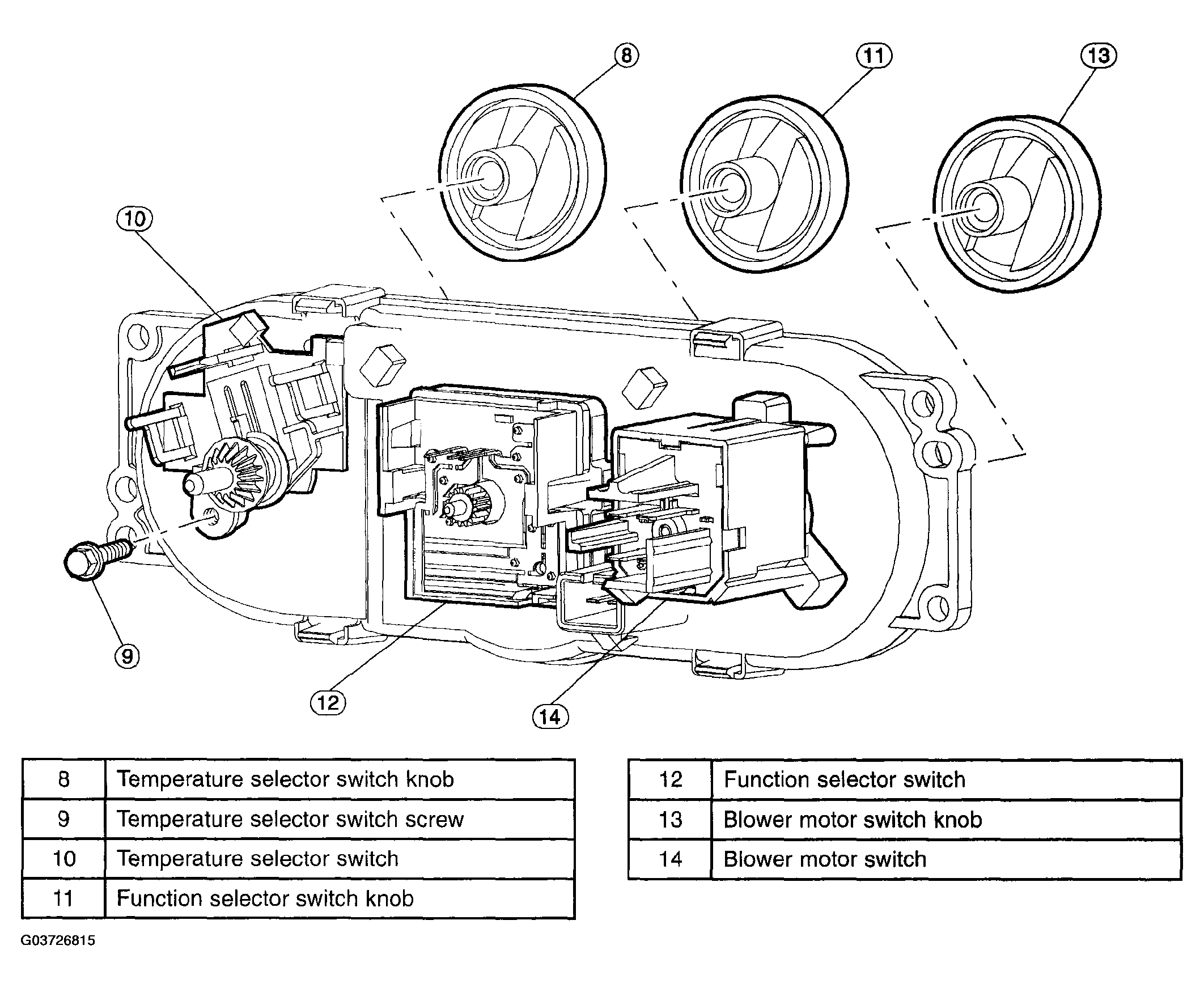

Fig 2: Identifying Climate Control Assembly (Items 8-14)
