Function Selector Switch

WARNING: This page is about a different car, the 2005 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Remove the center instrument panel finish panel. See INSTRUMENT PANEL .

Fig 1: Removing Function Selector Switch Knob

Courtesy of MAZDA MOTORS CORP.

Remove the function selector switch knob.

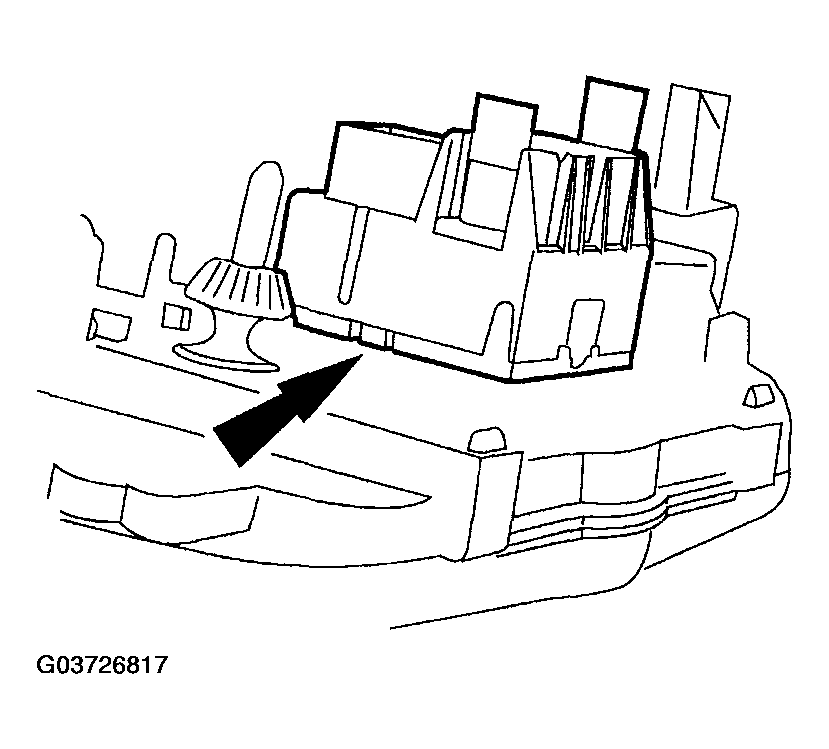

Fig 2: Removing Function Selector Switch

Courtesy of MAZDA MOTORS CORP.

Remove the function selector switch.
- Depress the locking tab.
NOTE:
- Align the function selector switch locking tabs with the holes in the housing and press the function selector into the housing. Verify that both locking tabs are secured.
To install, reverse the removal procedure.
