Removal and Installation

WARNING: This page is about a different car, the 2005 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Remove the instrument panel center finish panel. See INSTRUMENT CLUSTER FINISH PANEL .

Fig 1: Removing Temperature Control Switch Knob

G03726821

Courtesy of MAZDA MOTORS CORP.

Remove the temperature control switch knob.

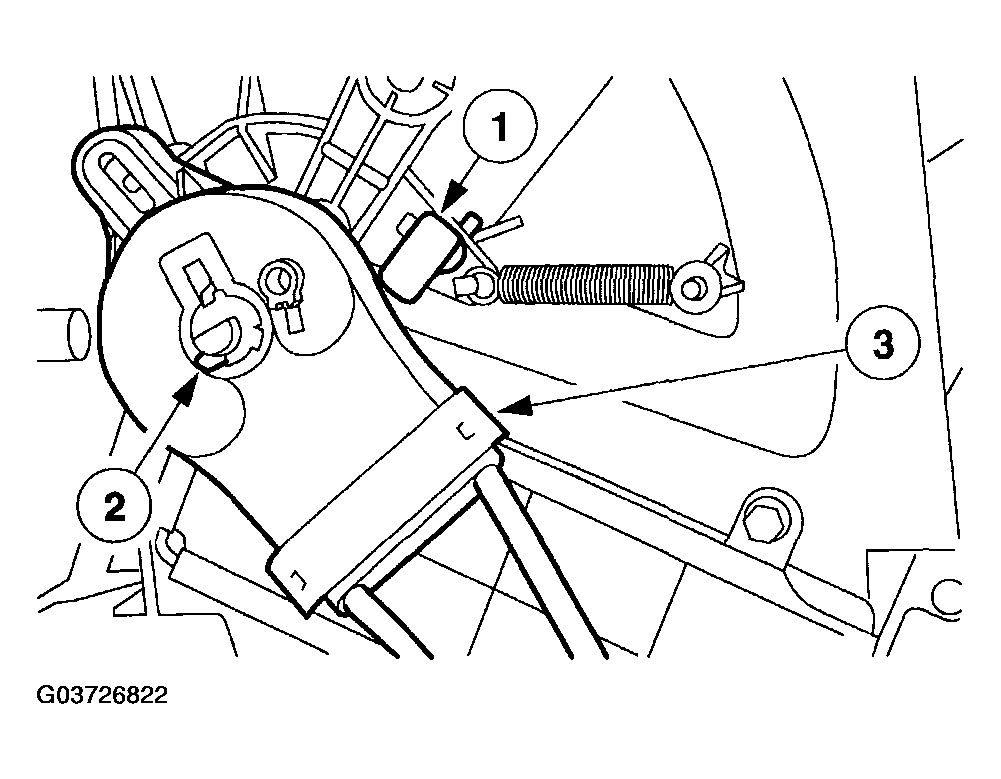

Fig 2: Disconnecting Temperature Blend Door Control Cable

G03726822

Courtesy of MAZDA MOTORS CORP.

Disconnect the temperature blend door control cable.
1. Align the locator holes and insert the special tool.
2. Release the locking tabs.
3. Remove the temperature blend door control cable from the blend door shaft.

Fig 3: Depressing Three Tabs And Removing Temperature Blend Door Control Cable

G03726823

Courtesy of MAZDA MOTORS CORP.

Depress the three tabs and remove the temperature blend door control cable.

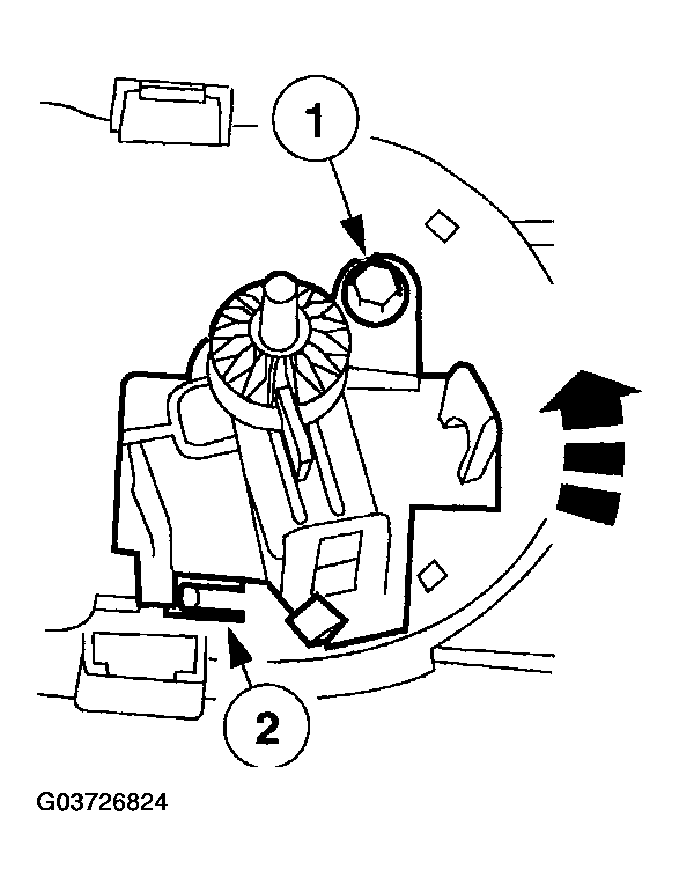

Fig 4: Removing Temperature Control Switch

G03726824

Courtesy of MAZDA MOTORS CORP.

Remove the temperature control switch.
1. Remove the screw.
2. Depress the tab and rotate the temperature control switch counterclockwise.

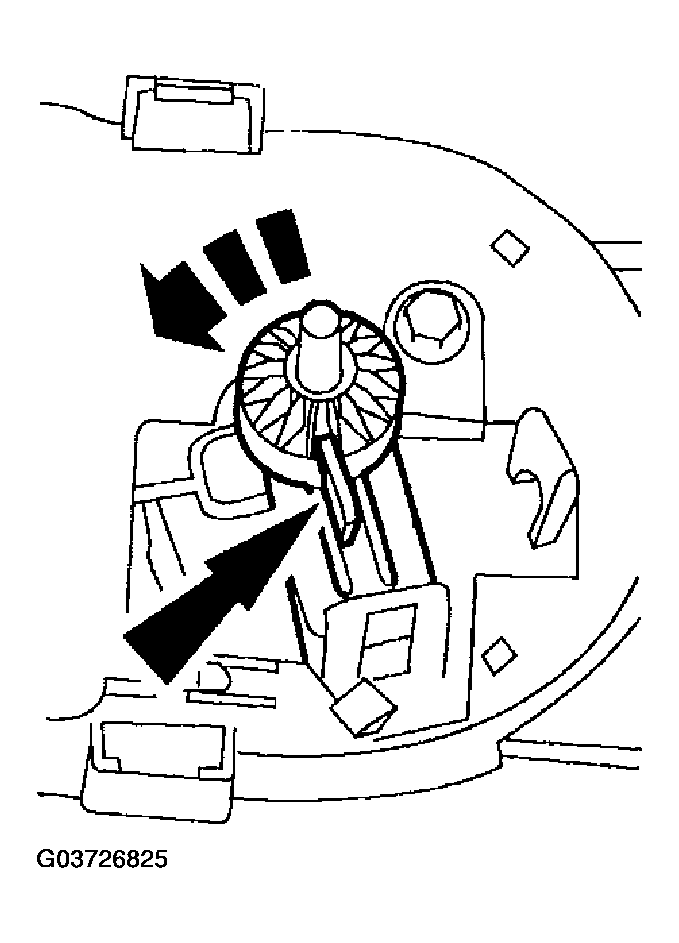

Fig 5: Rotating Gear To Align Locking Tab With Notch In Gear Before Installing

G03726825

Courtesy of MAZDA MOTORS CORP.

Rotate the gear to align the locking tab with the notch in the gear before installing.
To install, reverse the removal procedure.
