Wheel Alignment Specifications
Use illustration for wheel alignment specifications. See
Fig 1
.

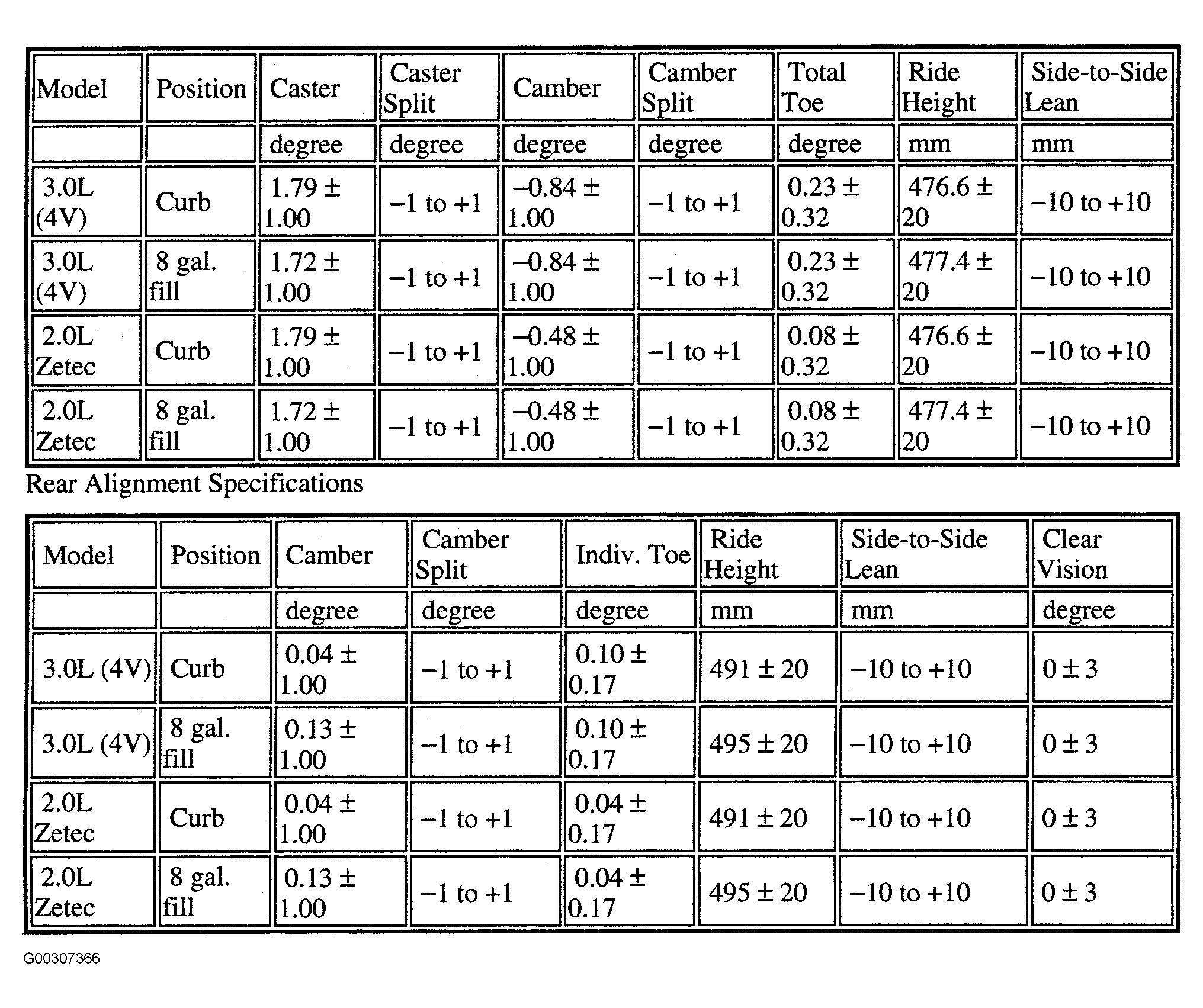

Fig 1: Wheel Alignment Specifications
Courtesy of FORD MOTOR CO.
