Line Pressure Chart

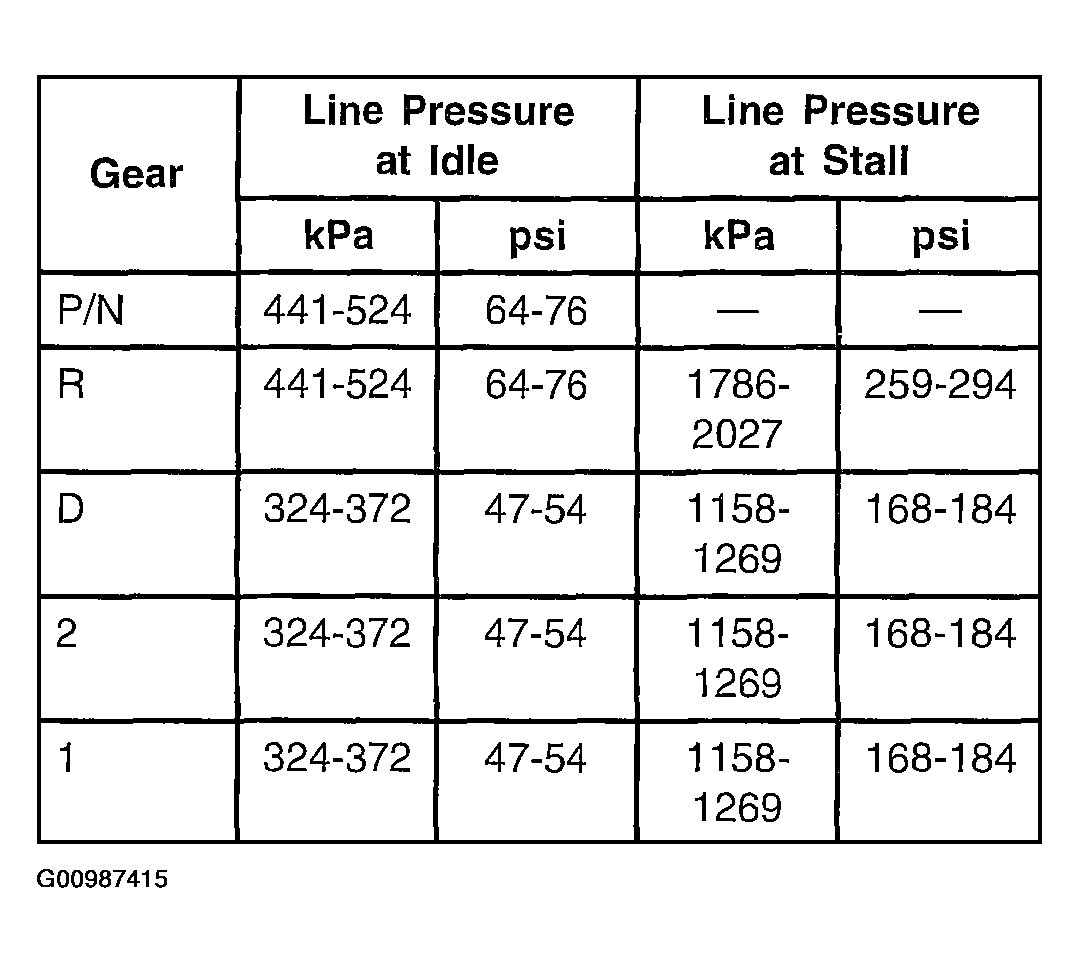

Fig 1: Line Pressure Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
