Symptom Troubleshooting Chart - Automatic Transaxle Shift Control: Notes

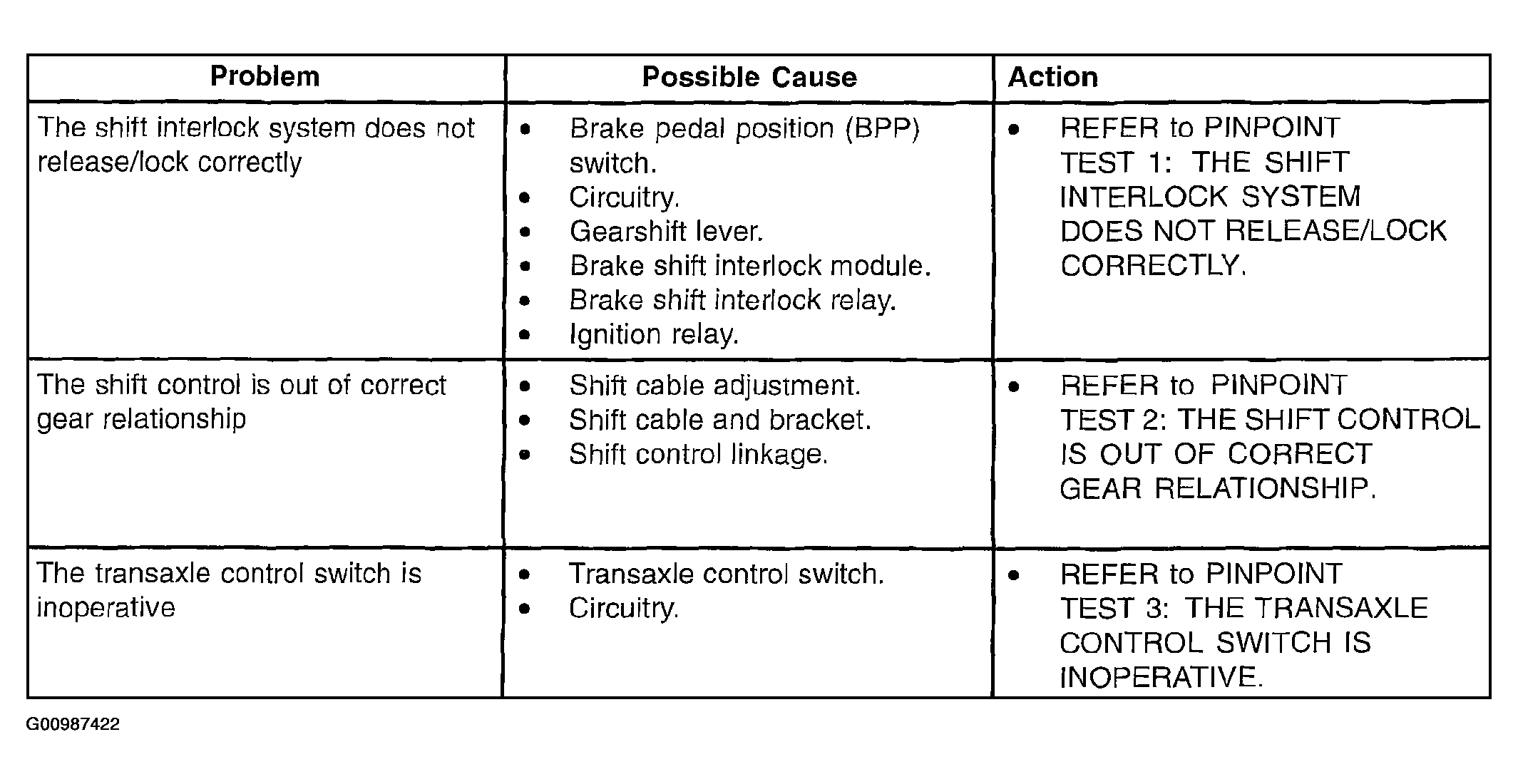

Fig 1: Symptom Troubleshooting Chart - Automatic Transaxle Shift Control
G00987422Courtesy of MAZDA MOTORS CORP.
