Speed Control DEACTIVATOR Switch: Installation

WARNING: This page is about a different car, the 2005 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Initial installation of a deactivator switch allows for one adjustment. If additional adjustments are required, install a new switch.

Release the plunger lock.
- Turn the lock knob counterclockwise until the first click is felt.
Fig 1: Releasing Plunger Lock
Courtesy of MAZDA MOTORS CORP.
Depress the brake pedal.
Install the deactivates switch.
1. Position the deactivator switch in the bracket and rotate clockwise 45 degrees.
2. Connect the electrical connector.
  NOTE:
  - There should be an extra click heard when tugging on the brake pedal.
- Slowly release the brake pedal and tug moderately once the pedal reaches the rest position.

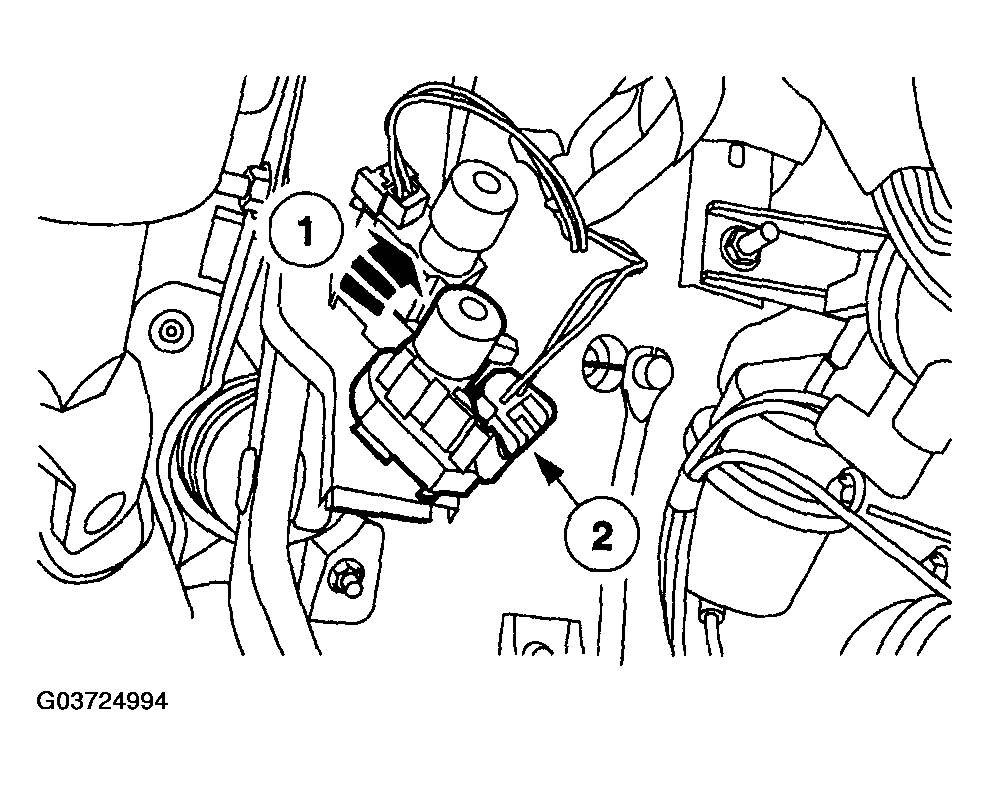

Fig 2: Installing Deactivates Switch
Courtesy of MAZDA MOTORS CORP.
