Electrical System: Terminals: Inspection

Pull lightly on individual wires to check that they are secured in the terminal.

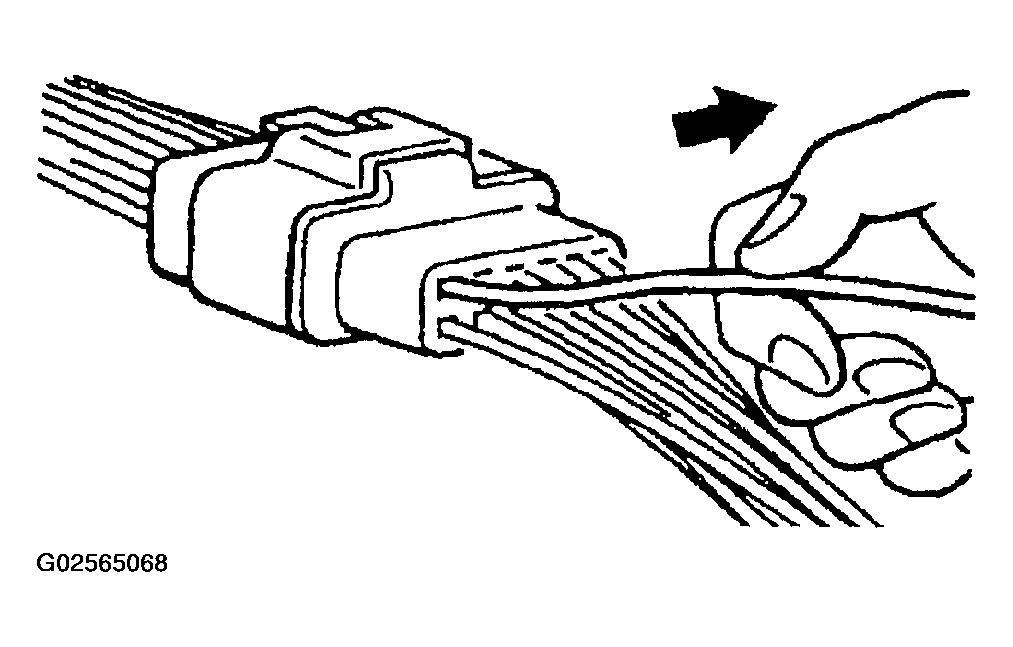

Fig 1: Checking Individual Wires In Electrical Connectors For Correct Installation
Courtesy of MAZDA MOTORS CORP.
