Transmitter Id Code Registration

NOTE:

When registering the ID code into a keyless control module, verify that other transmitters are not being operated in the vicinity.
After ID code registering, remove the key from the steering lock and verify that all doors lock/unlock normally using the transmitter.

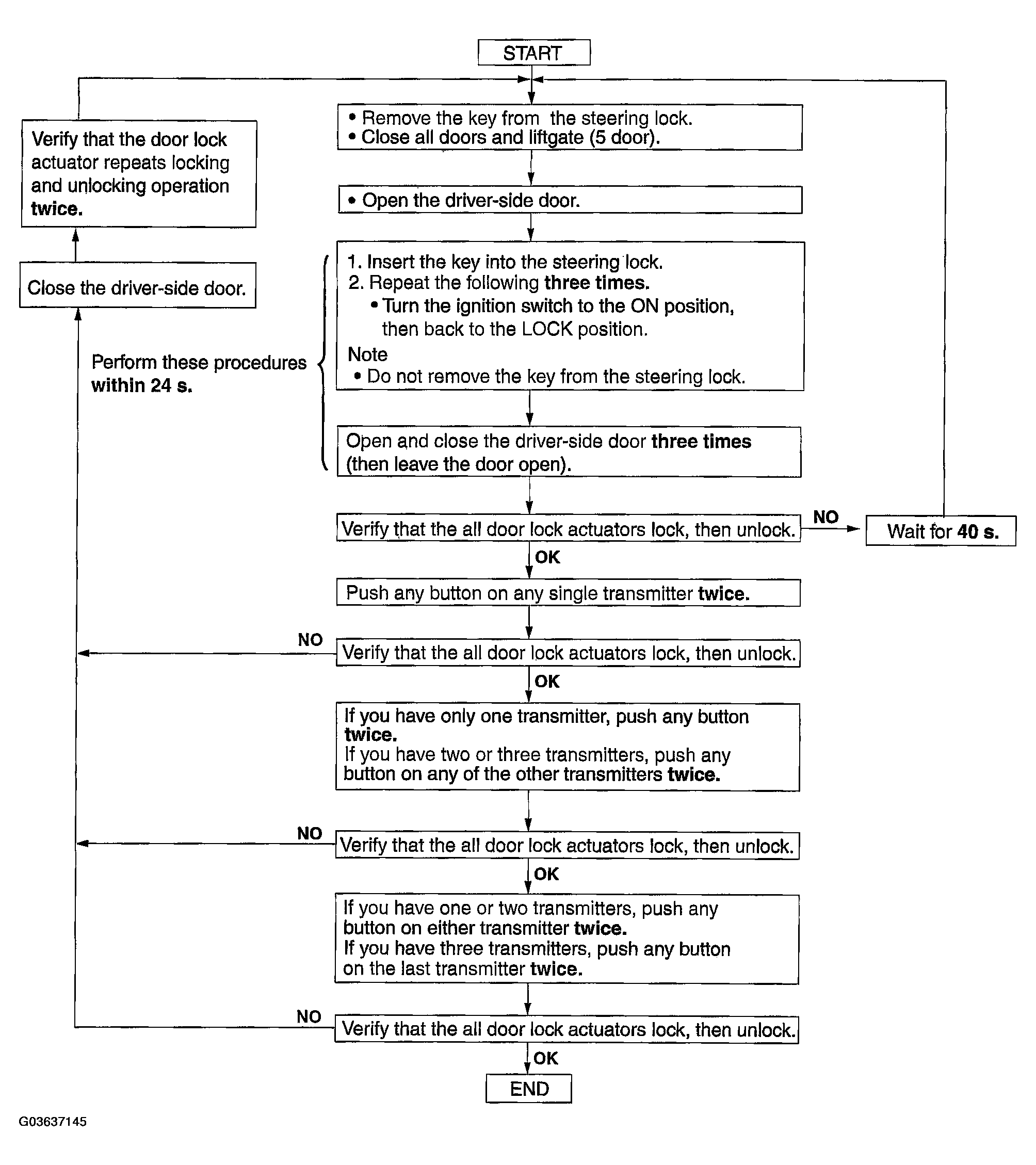

Fig 1: Transmitter ID Code Registration Flow Chart

Courtesy of MAZDA MOTORS CORP.
