Keyless Control Module Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the map light. (See MAP LIGHT REMOVAL/INSTALLATION .)
  3. Disconnect the keyless control module connector.
  4. Remove the screw, then remove the keyless control module.
  5. Install in the reverse order of removal.

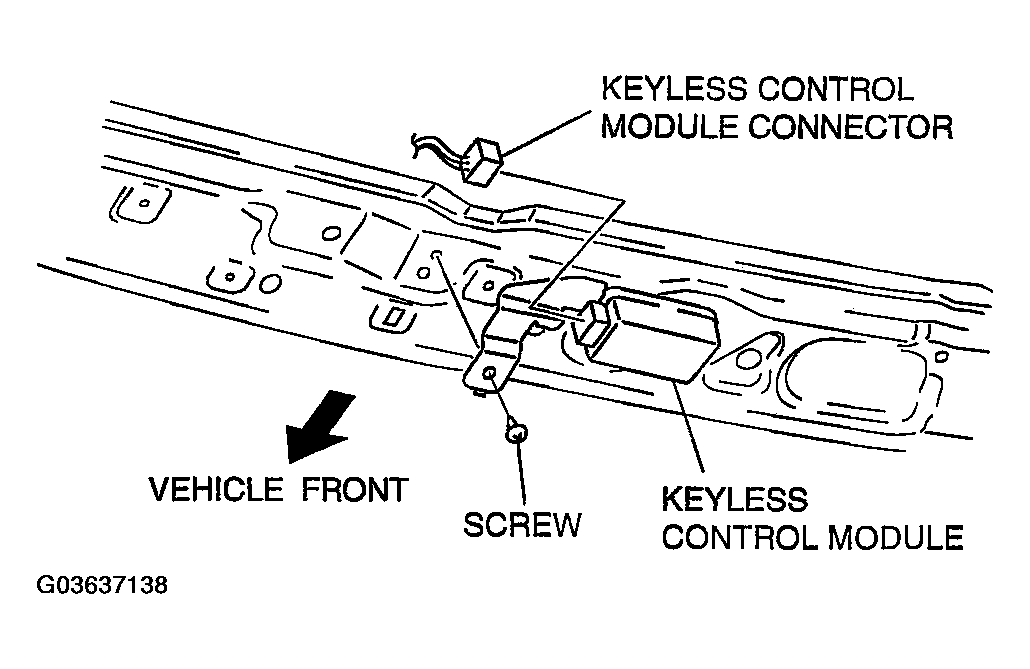

    6. Fig 1: Keyless Control Module Removal/Installation
    G03637138Courtesy of MAZDA MOTORS CORP.
  6. When replacing the keyless control module, register the transmitter ID codes. (See TRANSMITTER ID CODE REGISTRATION  )
