Power Window SUBSWITCH Inspection

Verify continuity as indicated in the figures.
- If not as indicated in the table, replace the power window subswitch.

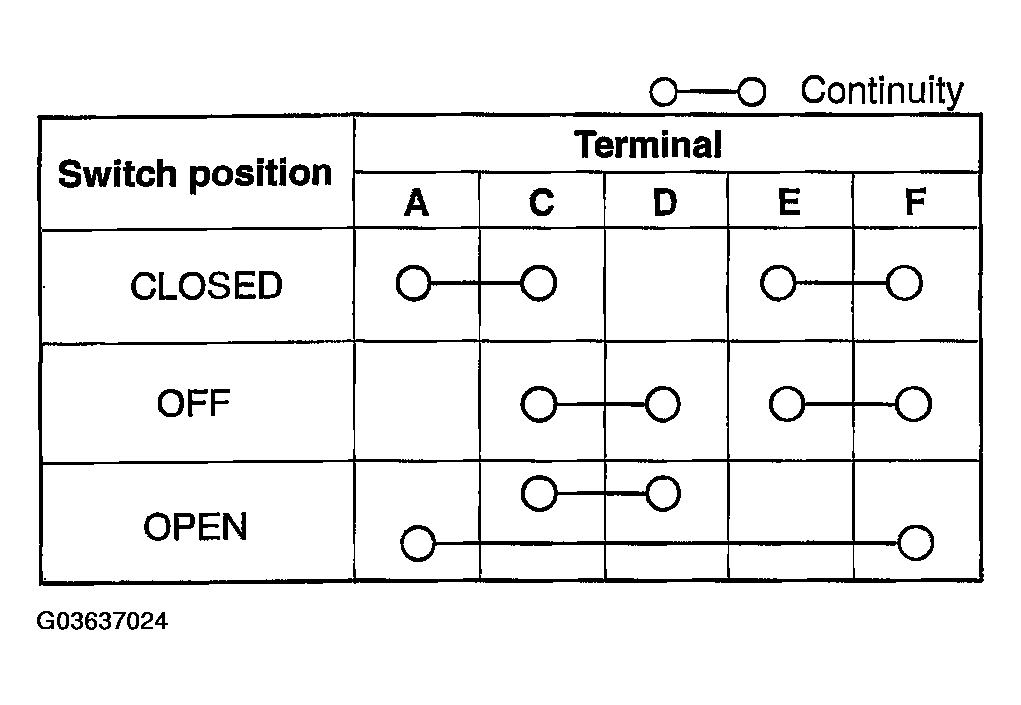

Fig 1: Power Window Subswitch Continuity Specifications
Courtesy of MAZDA MOTORS CORP.

Fig 2: Power Window Subswitch Connector Terminal Identification
Courtesy of MAZDA MOTORS CORP.
