Adjusting Cover Assembly Note

  1. Apply sealant to the threads of the adjusting cover.
  2. Using the SST  tighten the adjusting cover with a tightening torque of 20-29 N.m {2.1-2.9 kgf.m, 15-21 ft.lbf}
  3. Using the SST  loosen the adjusting cover to 25-30°.

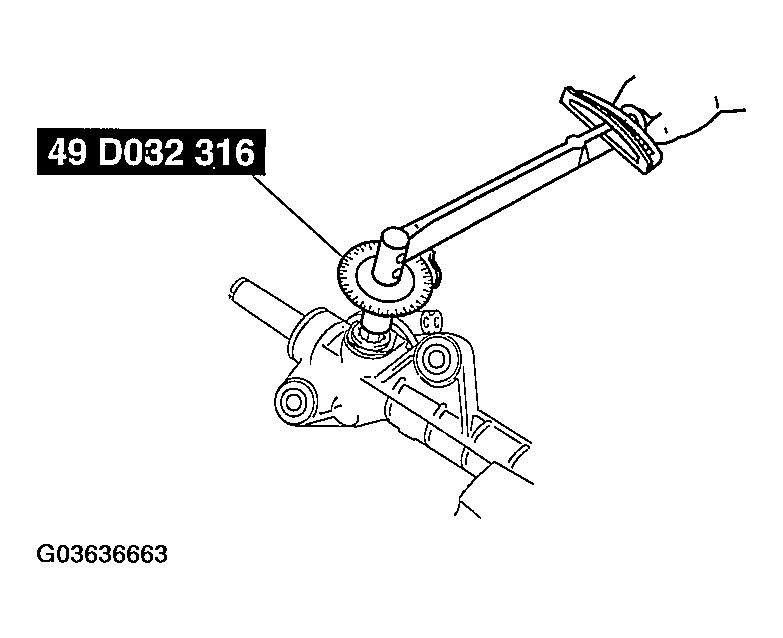

    Fig 1: Installing Adjusting Cover
    G03636663Courtesy of MAZDA MOTORS CORP.
