Ignition Switch Inspection

Verify that the continuity between the ignition switch terminals is as indicated in the figures.
- If not as indicated in the figures, replace the ignition switch.

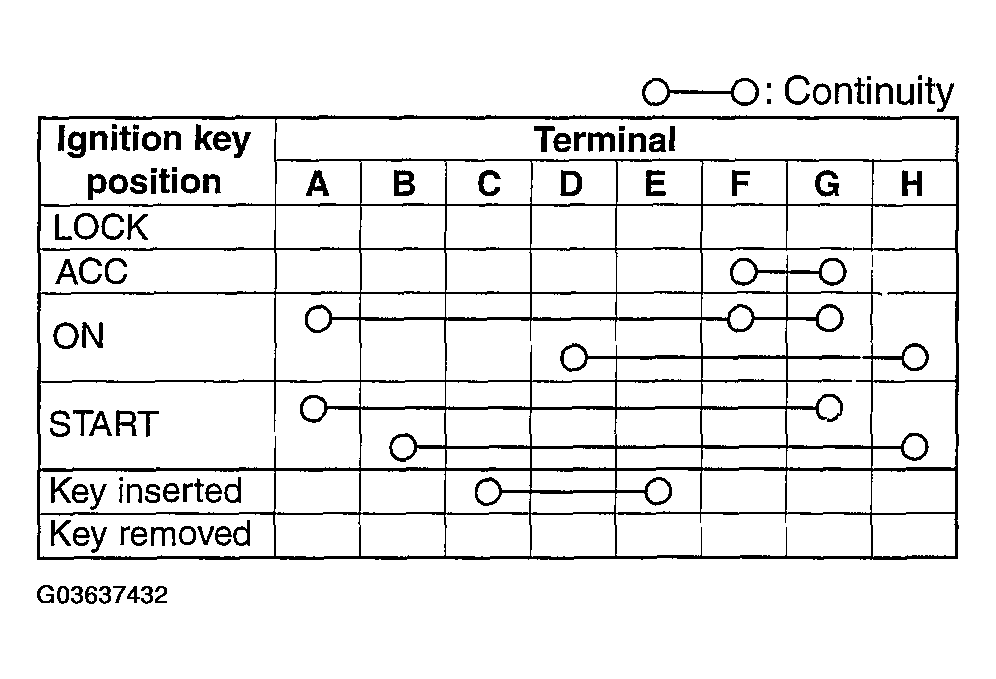

Fig 1: Ignition Switch Continuity Specifications
Courtesy of MAZDA MOTORS CORP.

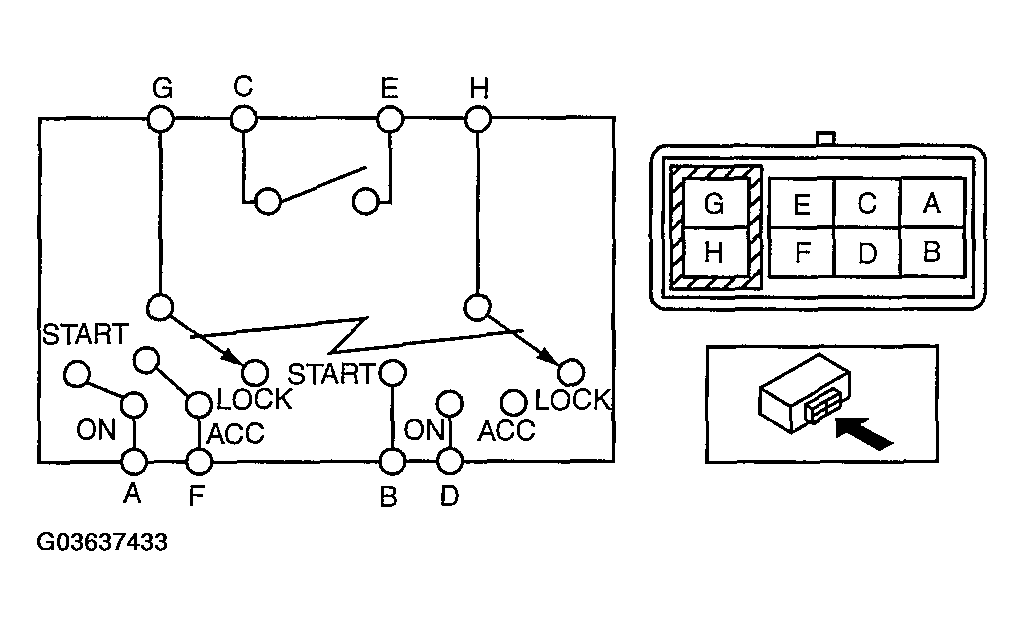

Fig 2: Identifying Ignition Switch Connector Terminals
Courtesy of MAZDA MOTORS CORP.
