Car-Navigation Control Switch & LCD Unit Connector End View

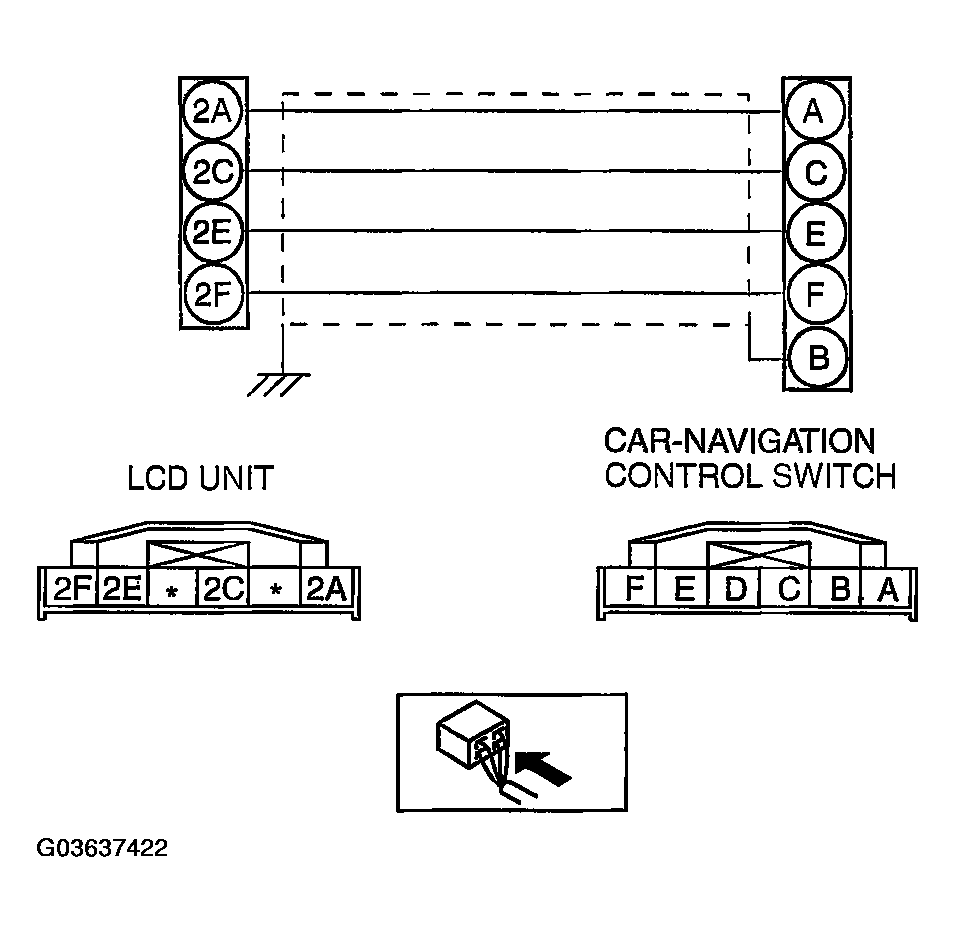

Fig 1: Car-Navigation Control Switch & LCD Unit Connector End View
G03637422Courtesy of MAZDA MOTORS CORP.
