Climate Control Unit Connector End View

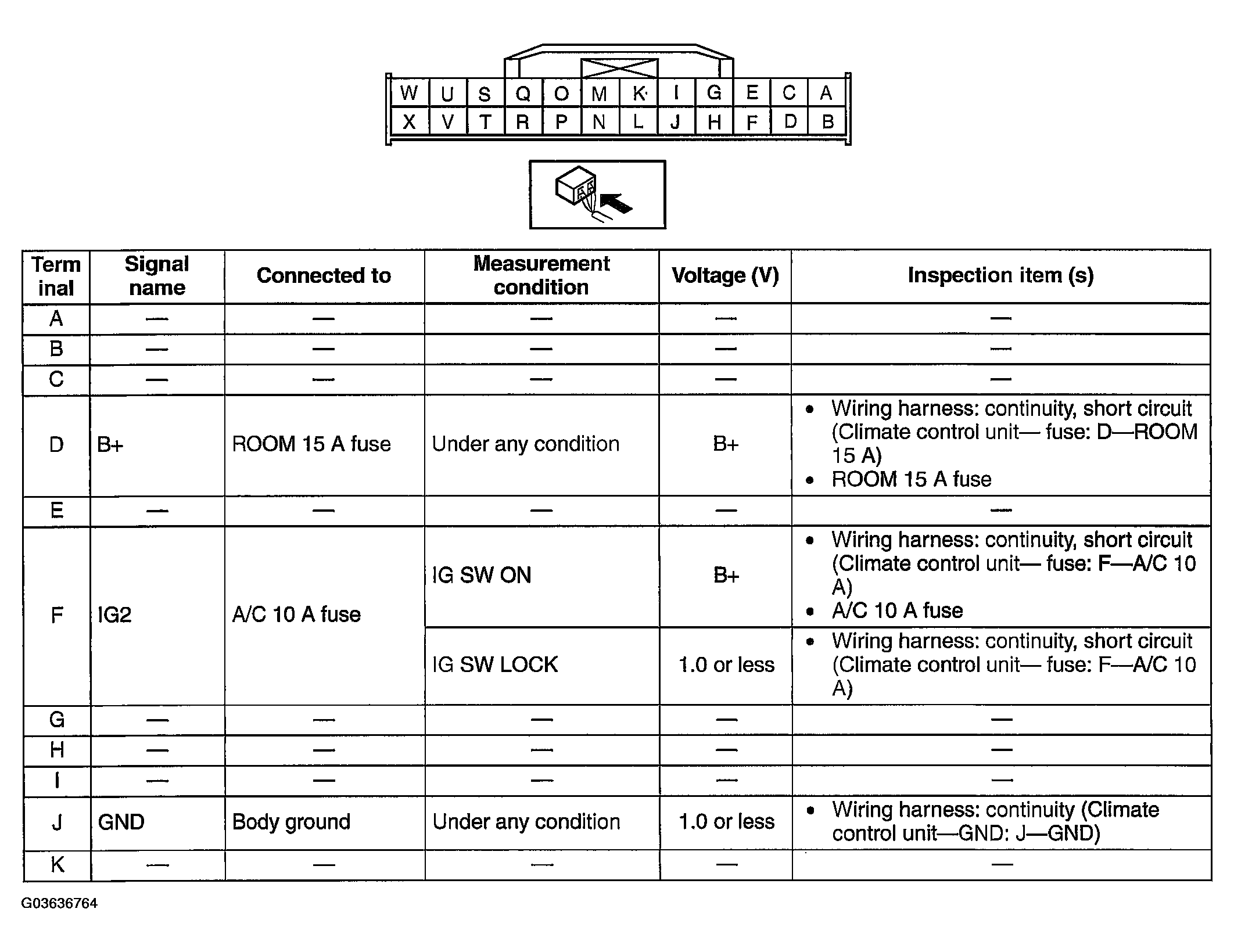

Fig 1: Climate Control Unit Connector End View)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
