PCM Cover Installation Note

  1. Install with the PCM cover hooks B aligned with the PCM box holes.

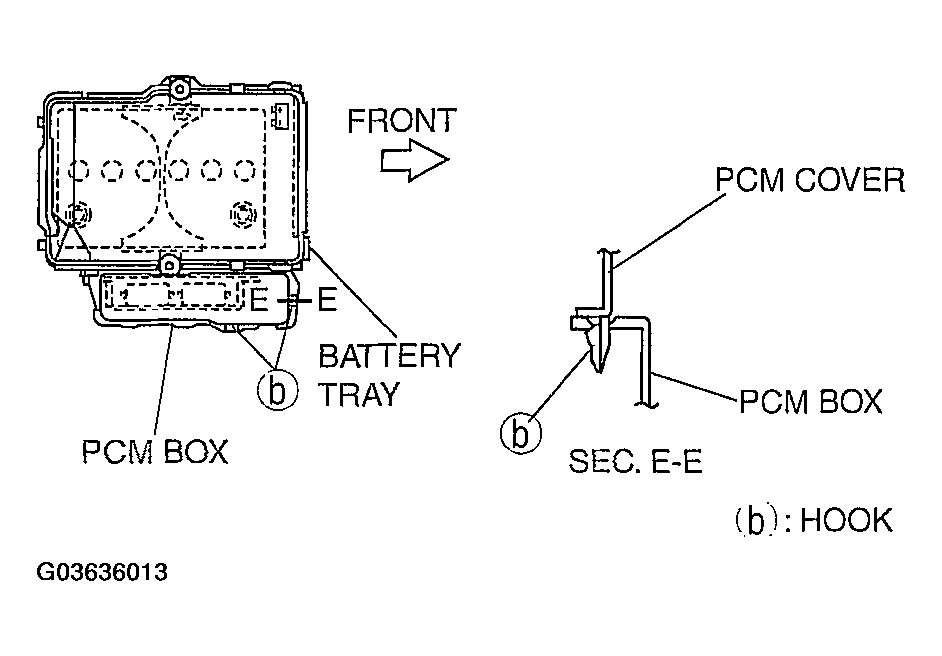

    Fig 1: Installing/Aligning PCM Cover Hooks B With PCM Box Holes
    G03636013Courtesy of MAZDA MOTORS CORP.
  2. Install the PCM cover to the PCM box hook.

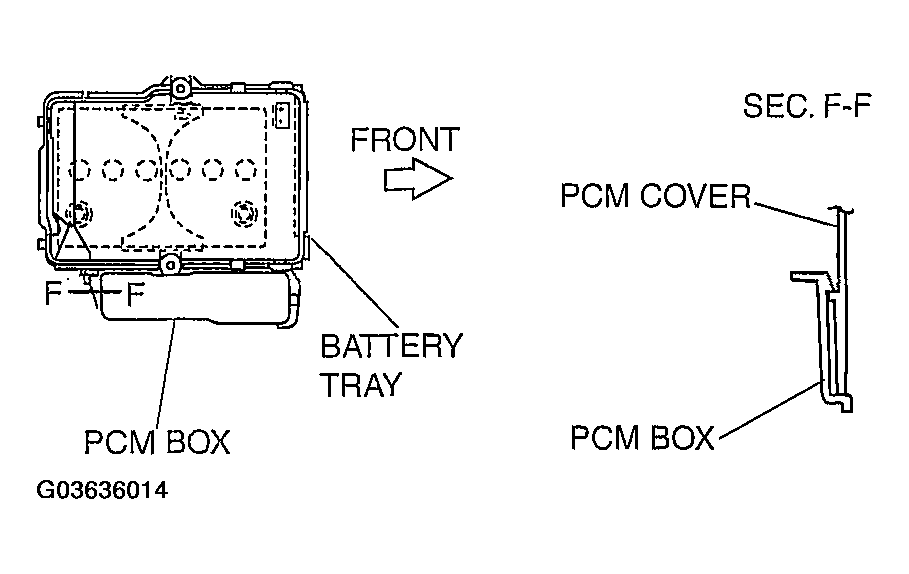

    Fig 2: Installing PCM Cover To PCM Box Hook
    G03636014Courtesy of MAZDA MOTORS CORP.
