Location Index

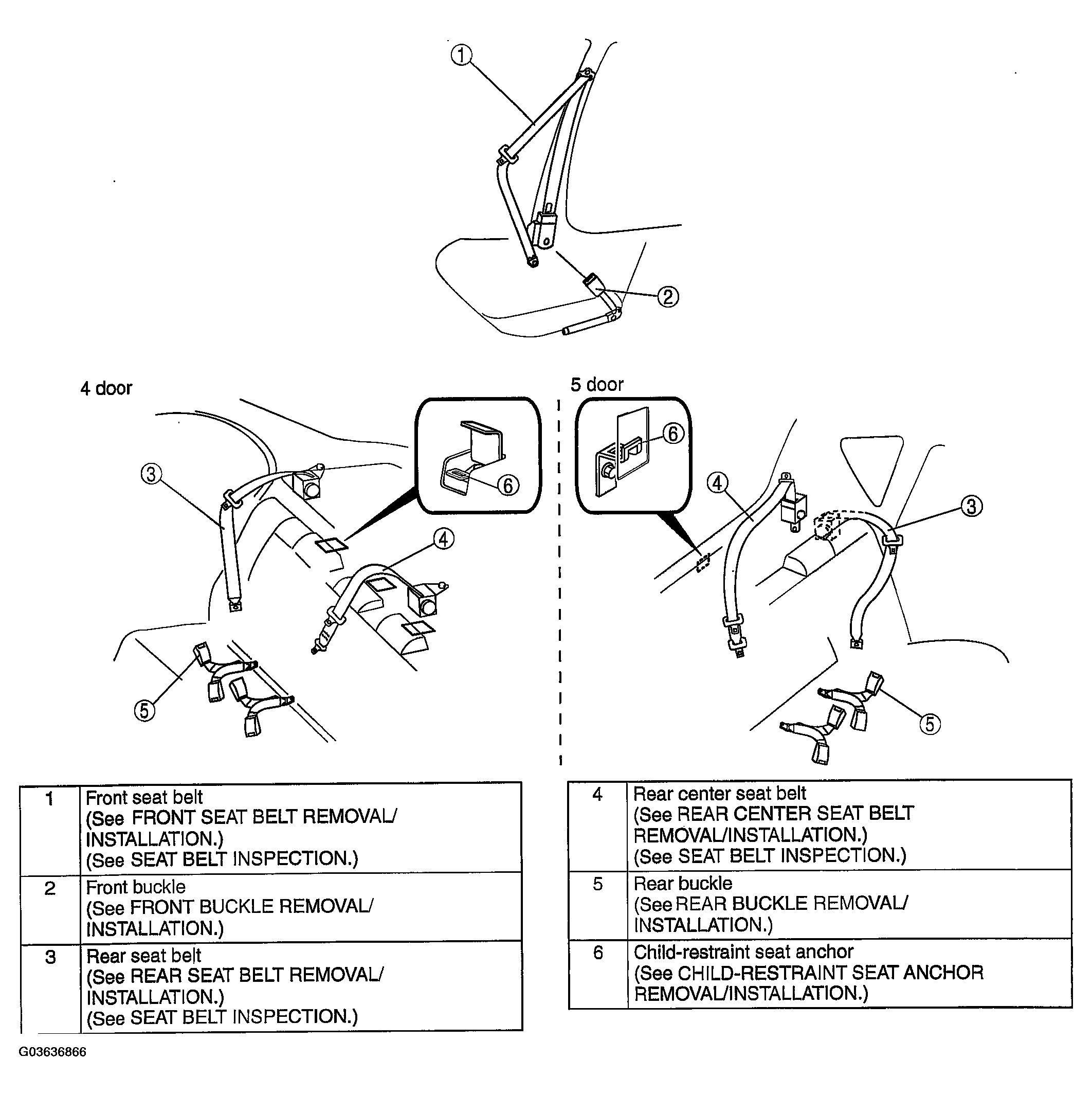

Fig 1: Identifying Seat Belt Component Locations
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
