Rack Bushing Assembly Note

  1. After installing the SST  to the steering rack end, assemble the rack bushing to the rack housing.

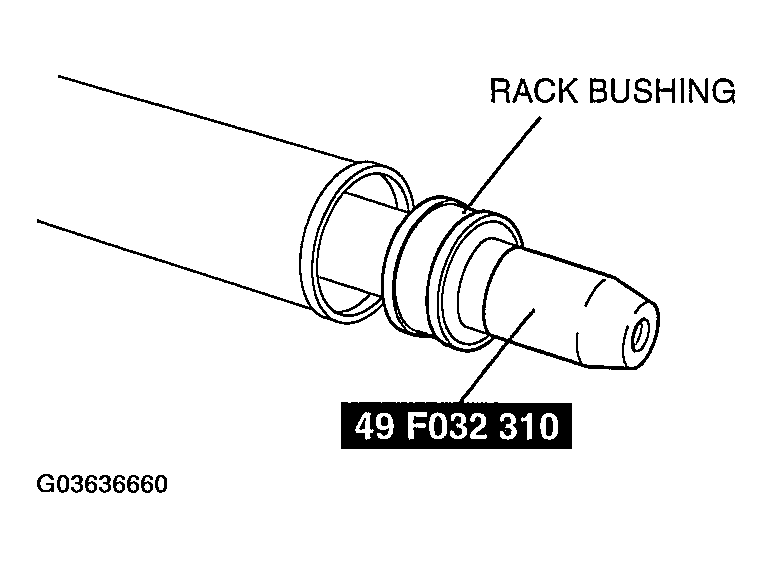

    Fig 1: Assembling Rack Bushing To Rack Housing
    G03636660Courtesy of MAZDA MOTORS CORP.
