Steering Rack Assembly Note

  1. Apply grease to the rack teeth.
  2. Install a plastic bag to the rack teeth and insert the steering rack in the gear housing.

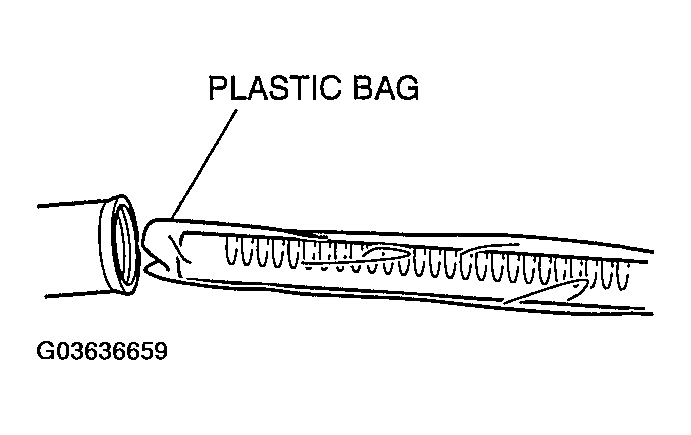

    Fig 1: Installing Plastic Bag To Rack Teeth
    G03636659Courtesy of MAZDA MOTORS CORP.
