Center Panel Module Disassembly/Assembly: Notes

CAUTION:

Before disassembling the center panel module, spread a cloth on the floor to put the disassembled parts on. This protects the surface of the panel from scratches or dirt.

Disassemble in the order indicated in the figure.
Assemble in the reverse order of disassembly.

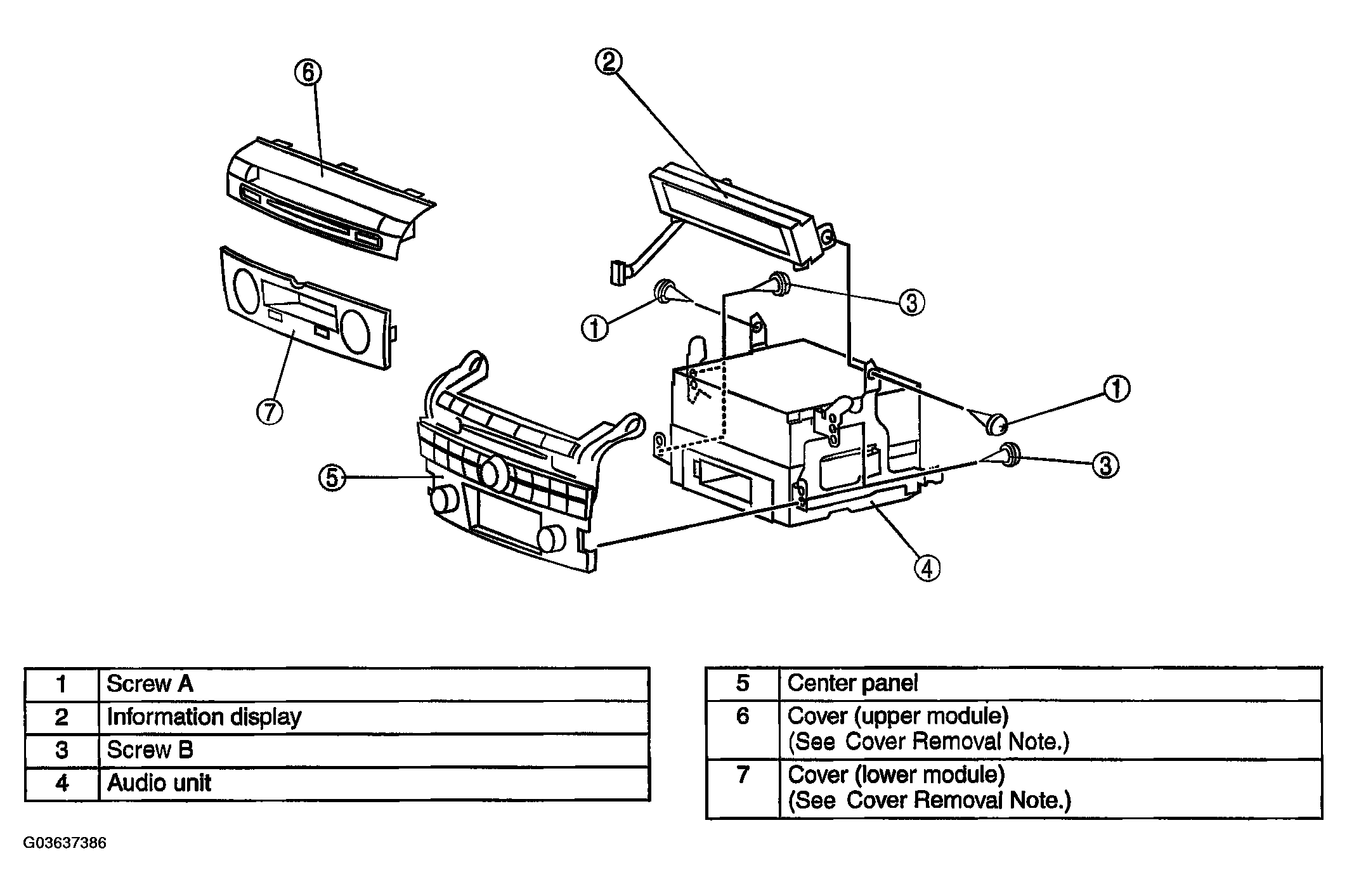

Fig 1: Center Panel Module Disassembly/Assembly
Courtesy of MAZDA MOTORS CORP.
