Pinout Values and Diagnostic Parameters

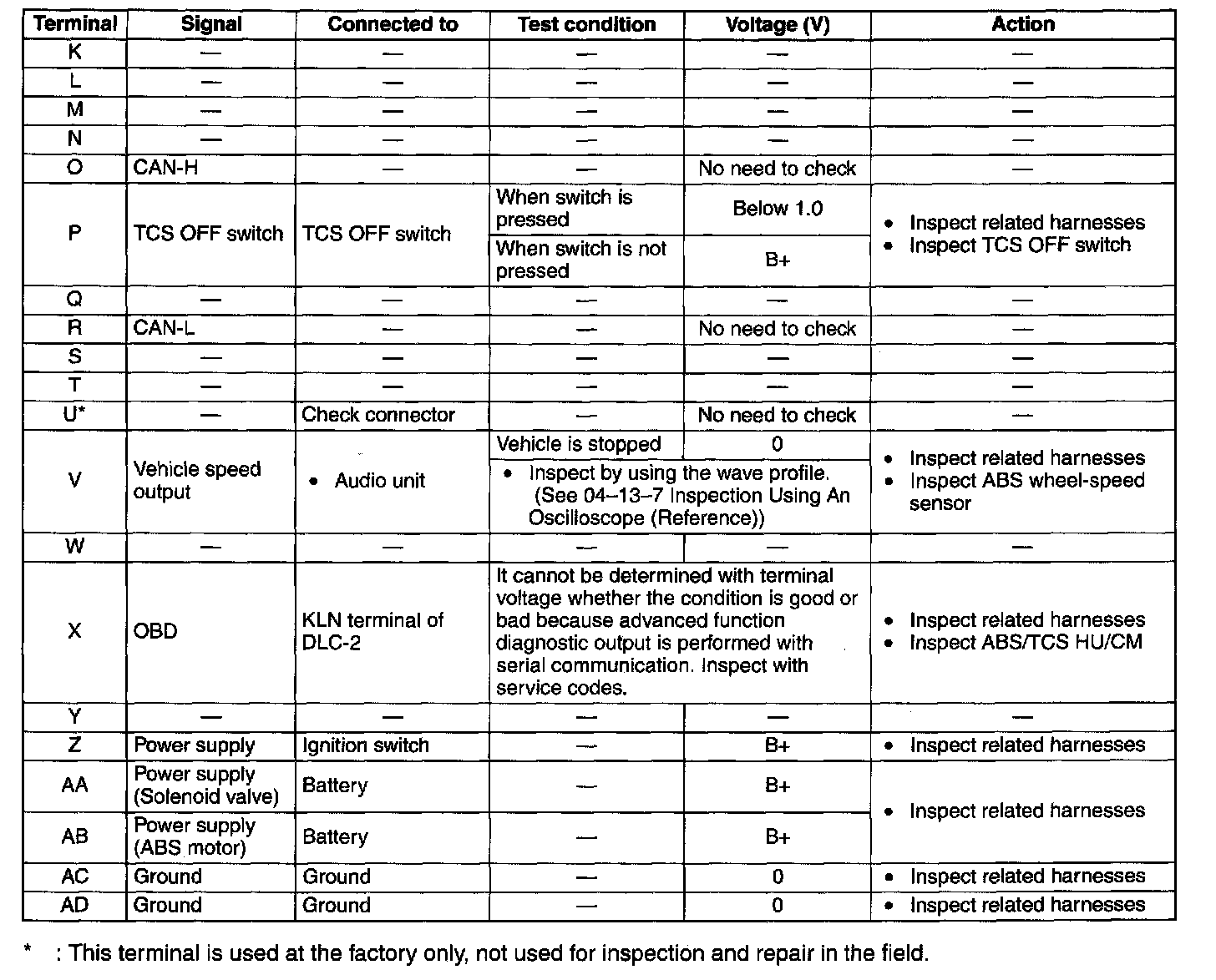

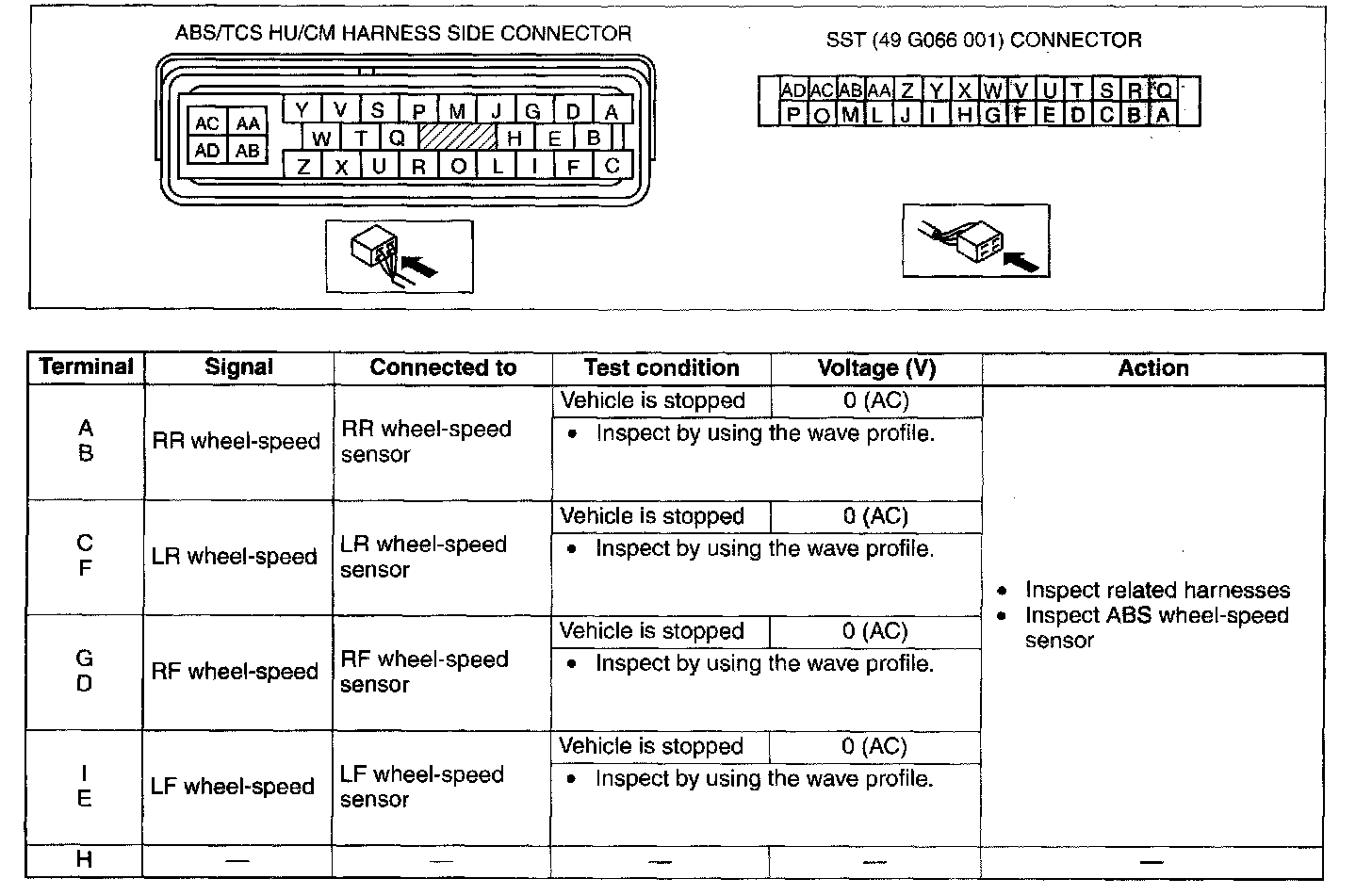

Terminal Voltage Table (Reference)
(Engine is idling, and connector is connected unless otherwise indicated)
