Outside Mirror Glass Assembly Note

  1. Press the outside mirror into the base so that the pin does not dislodge.

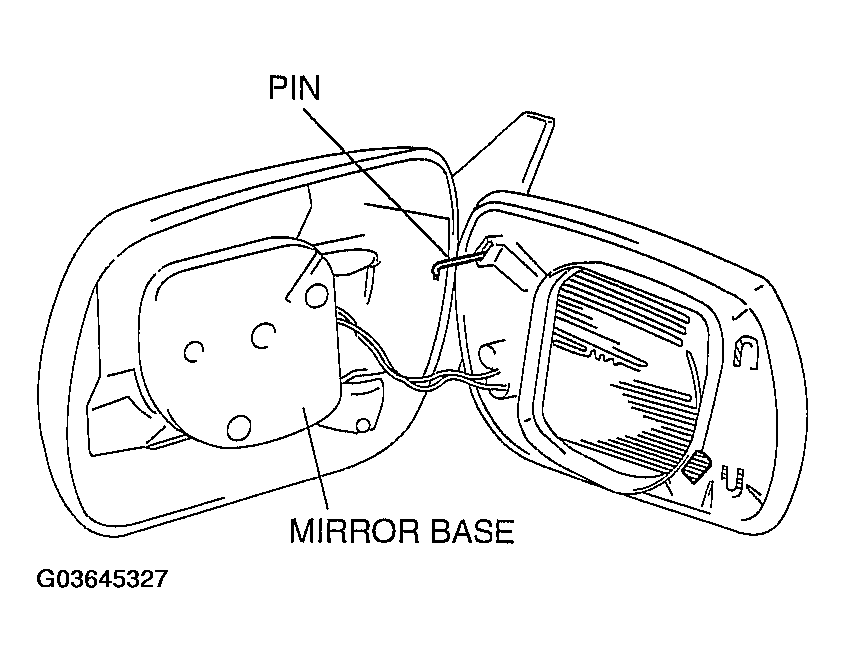

    Fig 1: Locating Outside Mirror Pin
    G03645327Courtesy of MAZDA MOTORS CORP.
