Rear Window Glass Removal: Notes

For the Sedan, remove the following parts:
1. Remove the headliner.
2. Remove the rear package trim.
For the 5-Door, remove the following parts:
1. Remove the rear wiper arm and blade.
2. Remove the liftgate lower trim.
3. Remove the liftgate side trim.
4. Remove the liftgate upper trim.
For the Sport Wagon, remove the following parts:
1. Remove the rear wiper arm and blade.
2. Remove the liftgate lower trim.
3. Remove the liftgate side trim.
4. Remove the liftgate upper trim.
5. Remove the rear wiper motor.
Apply protective tape along the edge of the body to protect it from damage.
Cut the lip of the rear window molding using a razor.
WARNING:
- Using a razor with bare hands can cause injury. Always wear gloves when using a razor.
NOTE:
- The rear window molding is a replacement part.

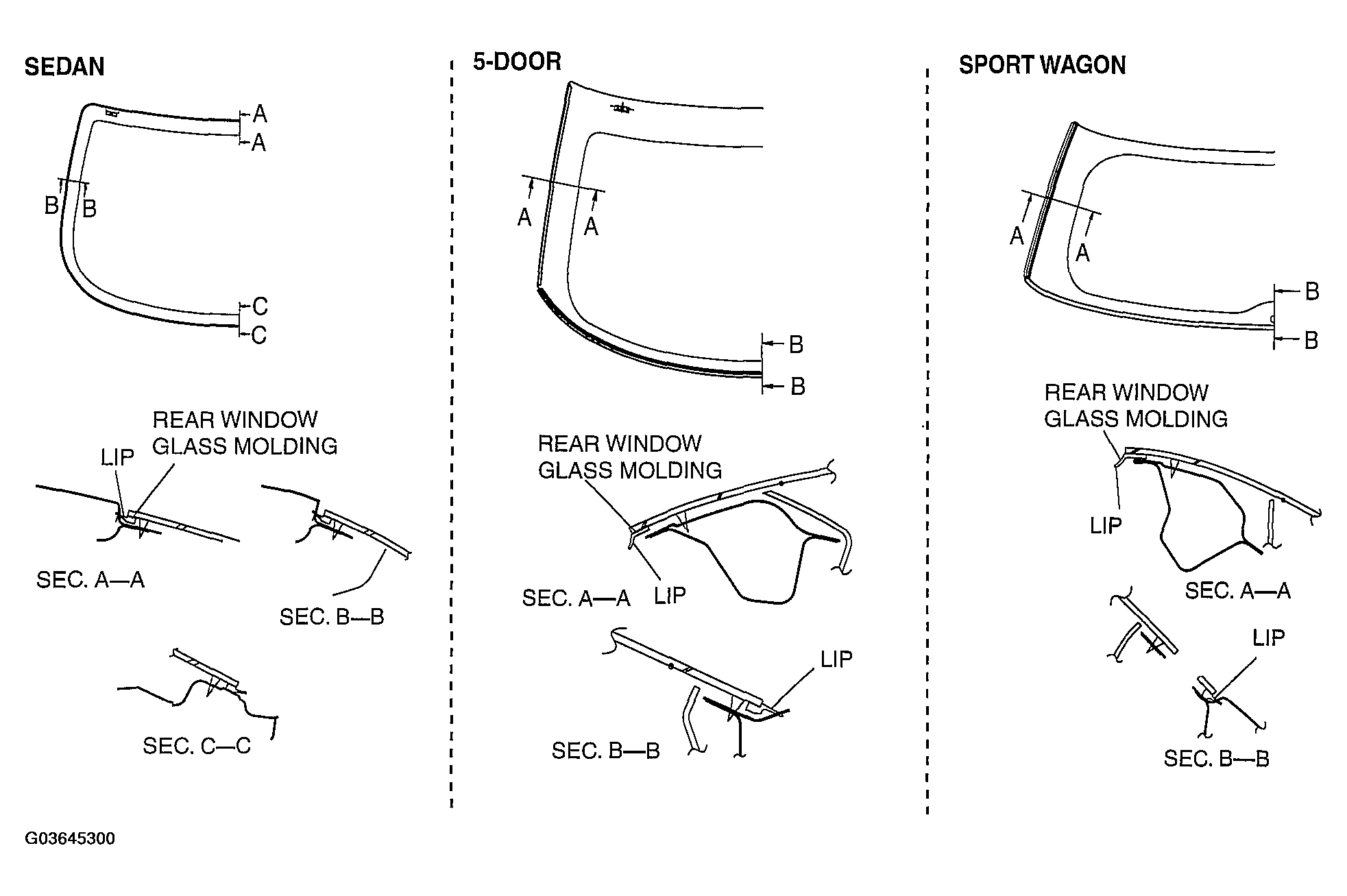

Fig 1: Identifying Rear Window Glass Molding Type
Courtesy of MAZDA MOTORS CORP.
