Front Buckle Removal/Installation

Disconnect the negative battery cable.
Remove the front seat.
Disconnect the buckle switch connector.

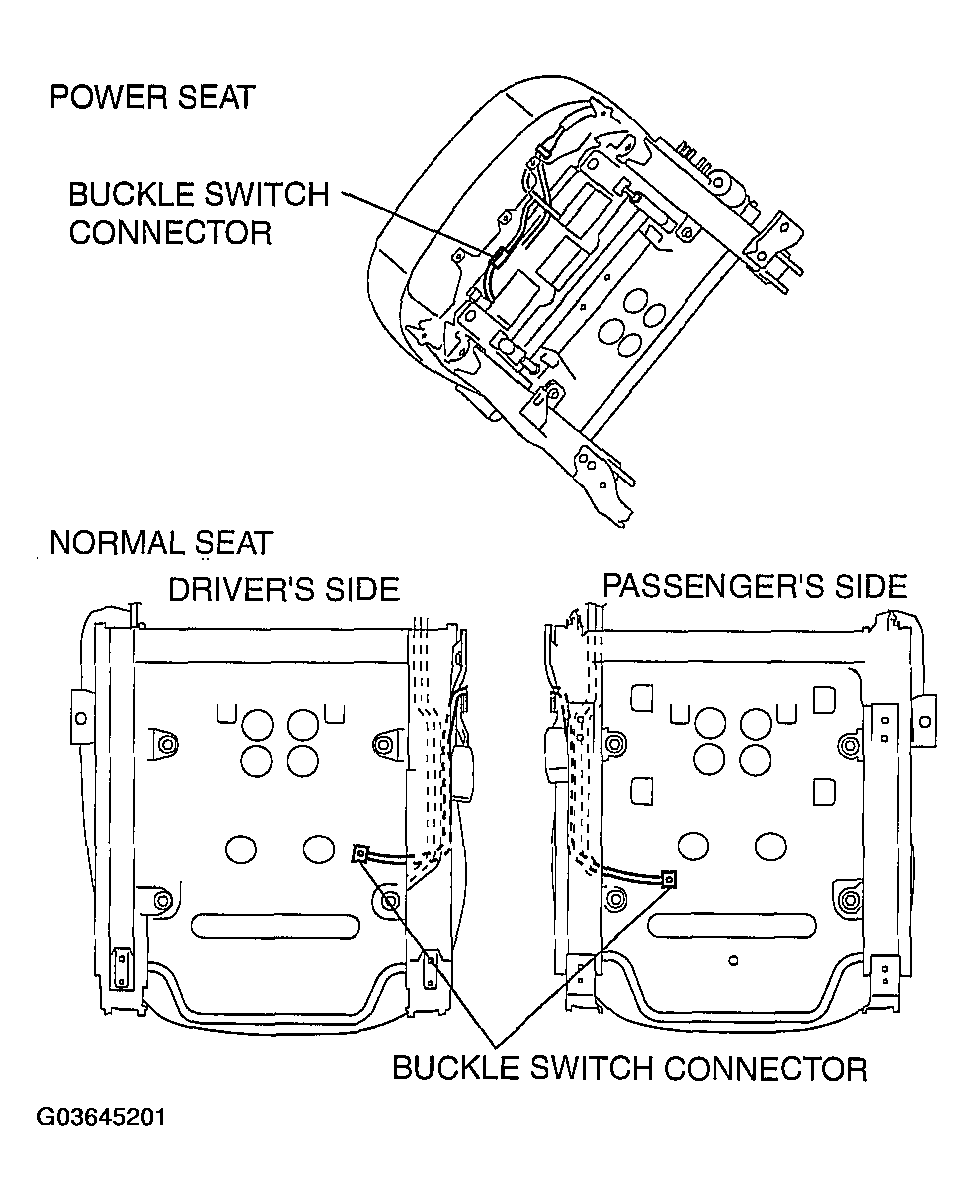

Fig 1: Disconnecting Buckle Switch Connector
Courtesy of MAZDA MOTORS CORP.
Remove bolt.

Fig 2: Removing Bolt (Torque Specs)
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
