Pcm Removal/Installation

NOTE:
  • For PCM replacement, setup the WDS and perform the PCM configuration. (See PCM REPLACEMENT .)
  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the table.

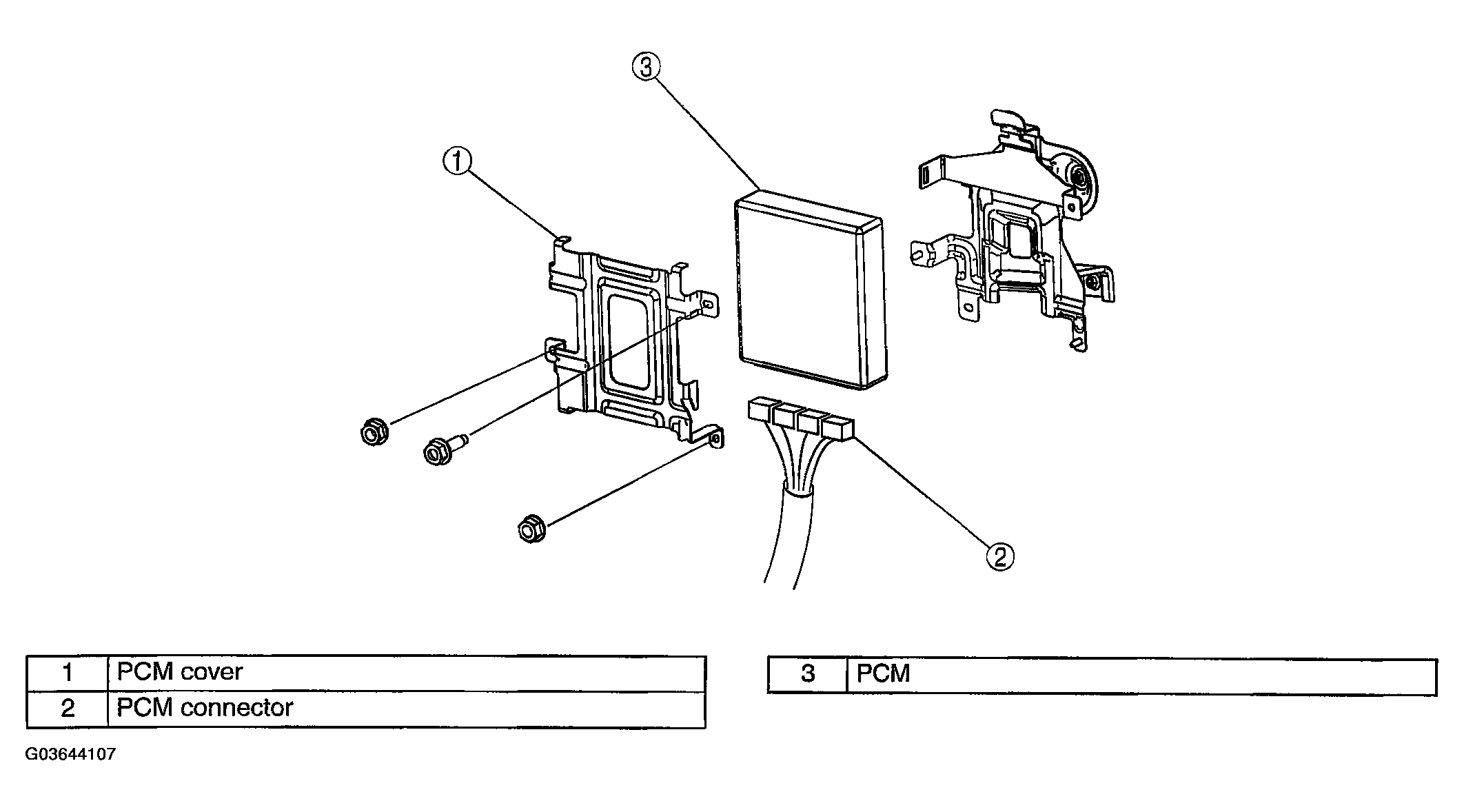

    Fig 1: Removing PCM
    G03644107Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
