Engine Technical Data: Notes

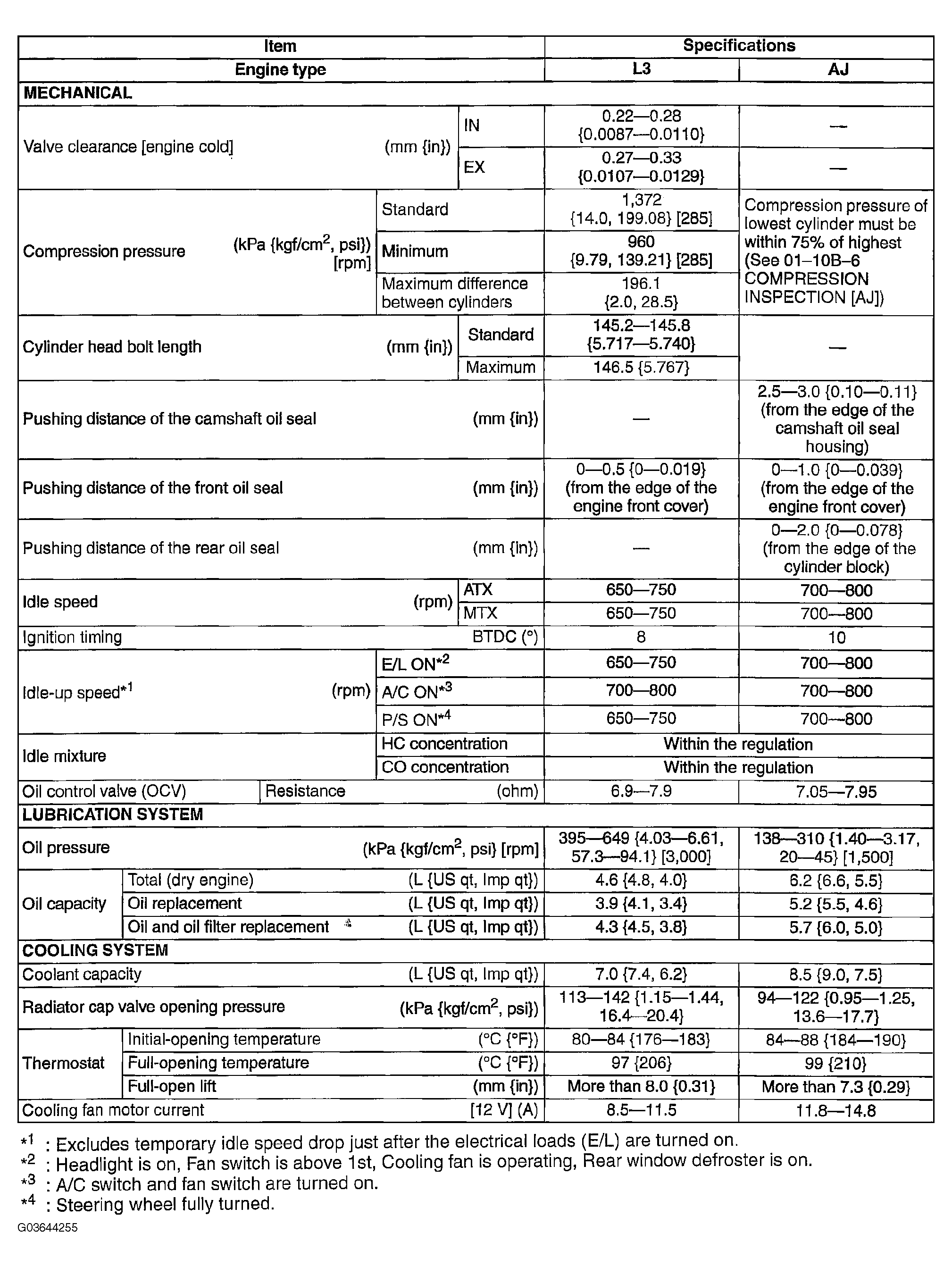

Fig 1: Engine Technical Data
G03644255Courtesy of MAZDA MOTORS CORP.

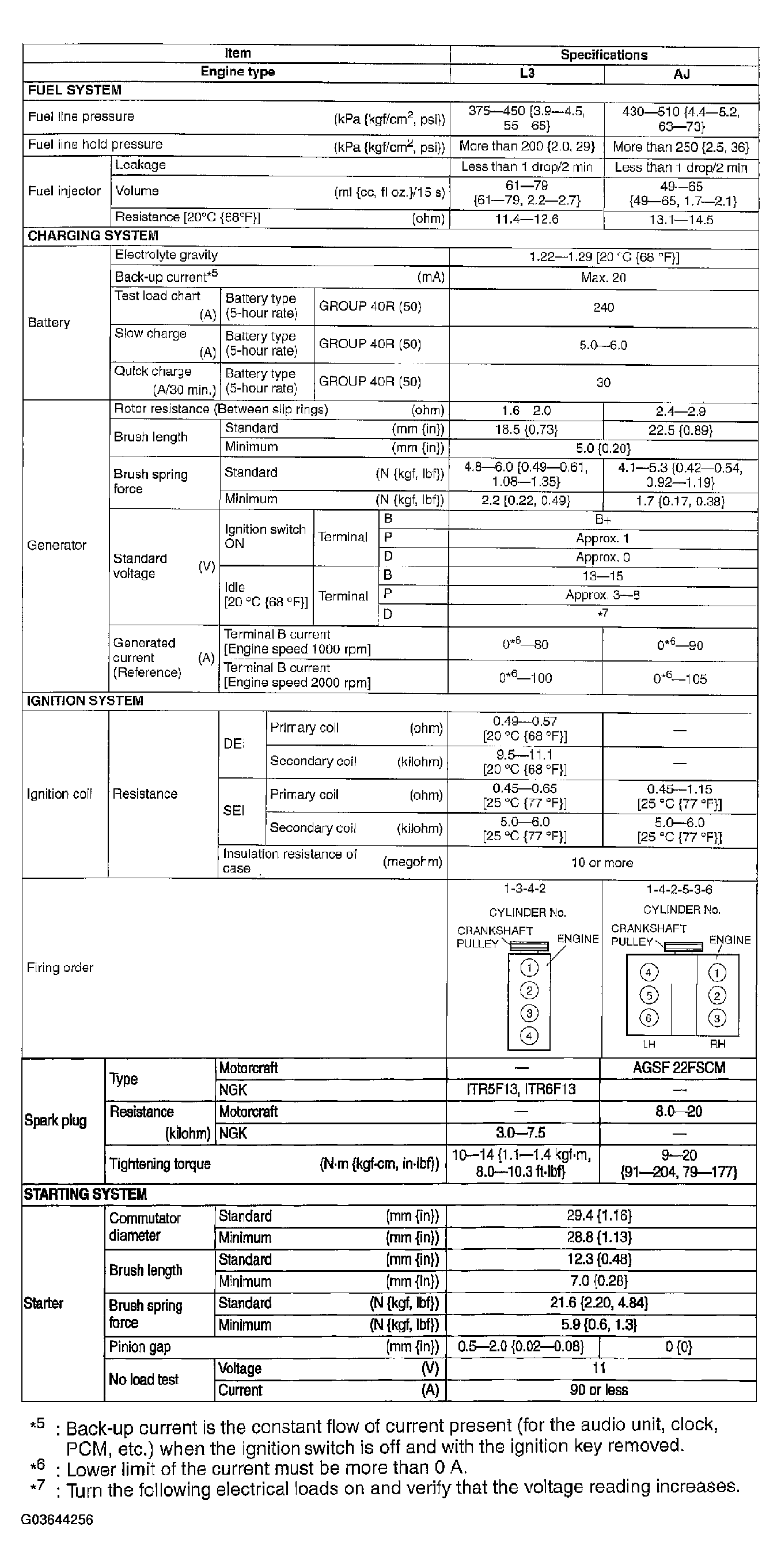

Fig 2: Engine Technical Data
G03644256Courtesy of MAZDA MOTORS CORP.
