PINPOINT TEST 2 - MODULE DOES NOT RESPOND TO DIAGNOSTIC TOOL - RESTRAINT CONTROL MODULE (RCM)

PINPOINT TEST 2		MODULE DOES NOT RESPOND TO THE DIAGNOSTIC TOOL - RESTRAINT CONTROL MODULE (RCM)
STEP	INSPECTION		ACTION

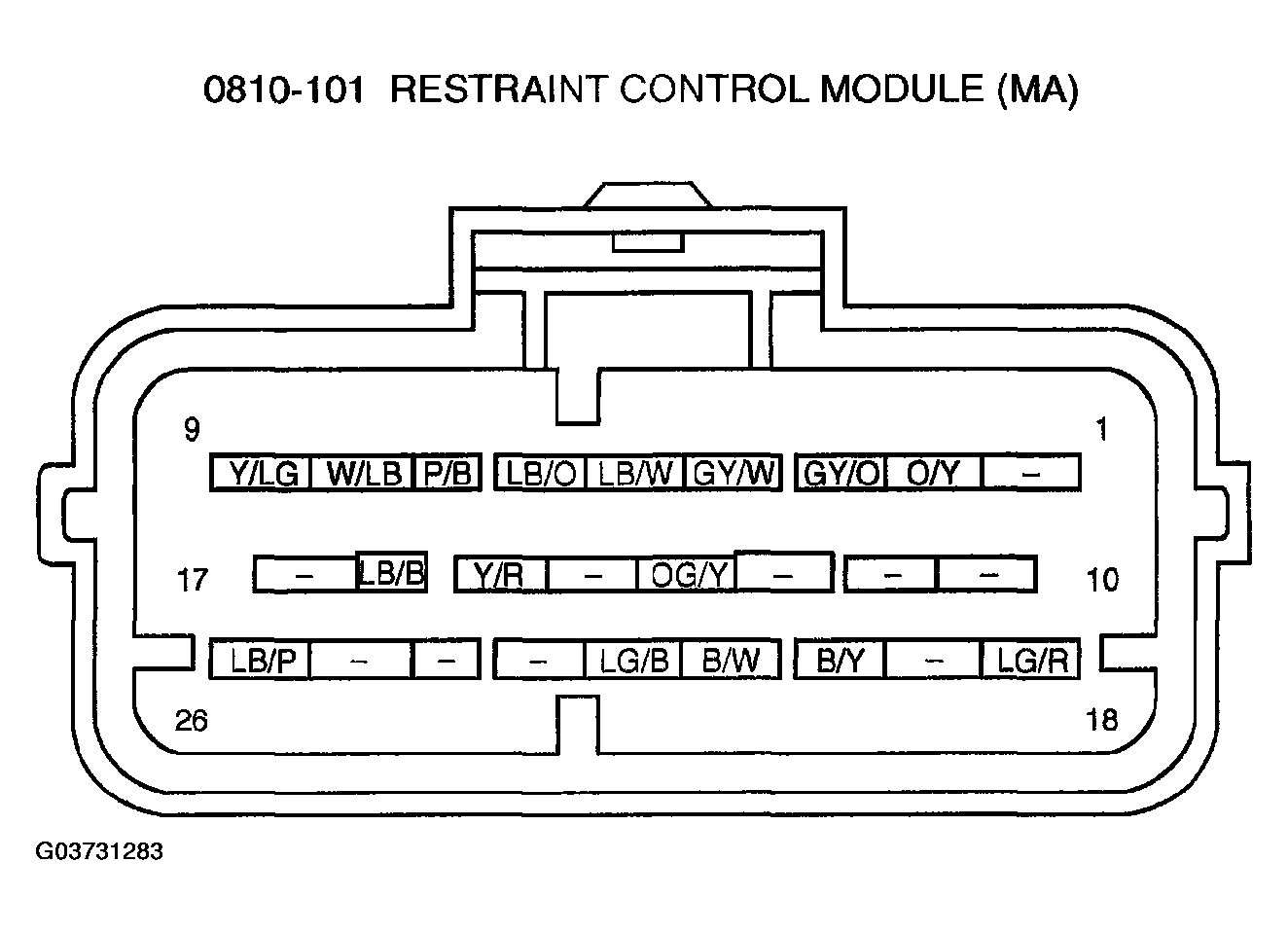

1	CHECK THE RCM 0810-101 FOR DAMAGE Key OFF. Deactivate the air bag system. See SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEACTIVATION AND ACTIVATION . Disconnect: RCM 0810-101. Inspect the RCM 0810-101 for damage. Is the RCM 0810-101 OK?	Yes	Go to step 2.
1		No	Repair the RCM 0810-101. Carry out the data link diagnostics test. See DATA LINK DIAGNOSTICS TEST .

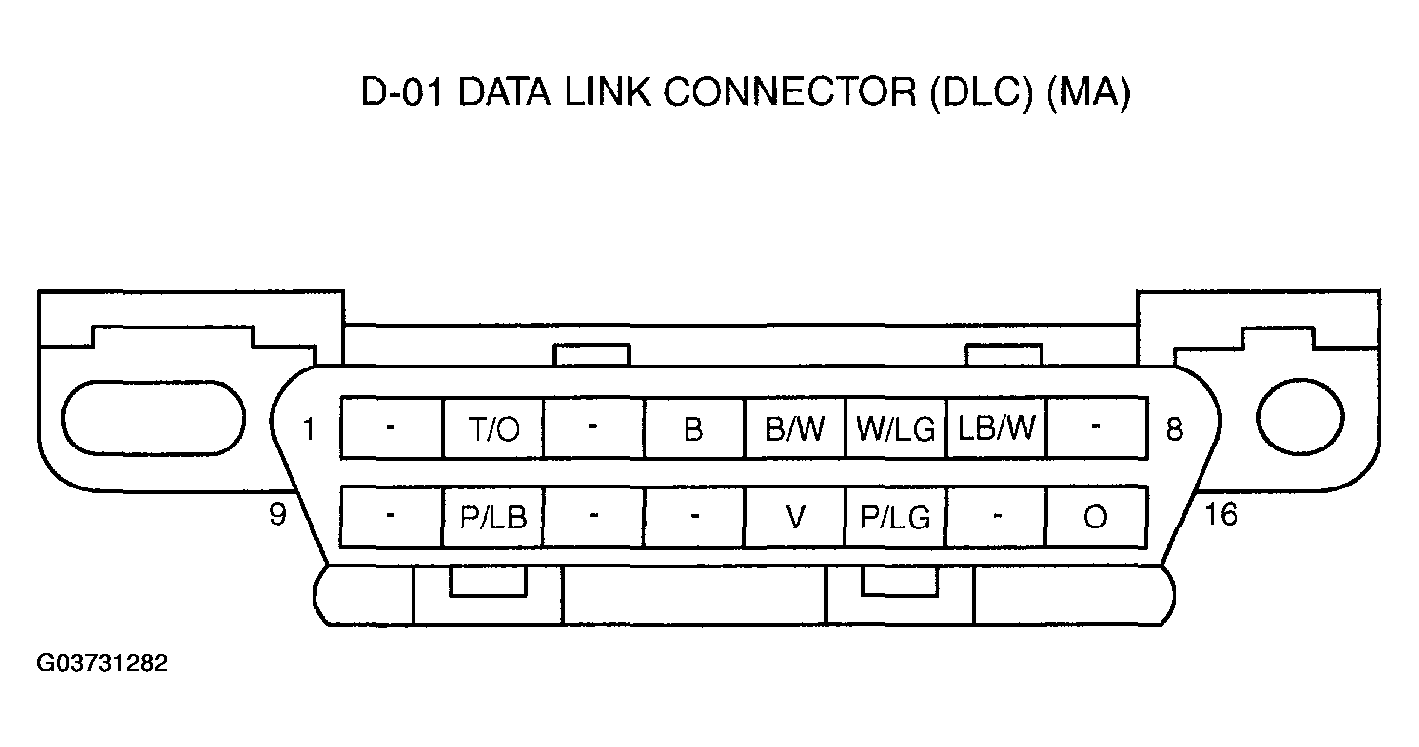

2	CHECK CIRCUIT LB/W BETWEEN THE DLC D-01 AND THE RCM 0810-101 FOR AN OPEN Measure the resistance between the RCM 0810-101 pin 5, circuit LB/W, harness side and the DLC D-01 pin 7, circuit LB/W, harness side. Is the resistance less than 5 ohms?	Yes	Go to step 3.
2		No	Repair the circuit. Carry out the data link diagnostics test. See DATA LINK DIAGNOSTICS TEST .
3	CHECK FOR CORRECT RCM OPERATION Disconnect all the RCM connectors. Check for: corrosion pushed-out pins Connect all the RCM connectors and make sure they seat correctly. Operate the system and verify the concern is still present. Is the concern still present?	Yes	Install a new RCM. See RESTRAINTS CONTROL MODULE REMOVAL/INSTALLATION . Carry out the data link diagnostics test. See DATA LINK DIAGNOSTICS TEST .
3		No	The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector. Clear the DTCs. REPEAT the self-test. Carry out the data link diagnostics test. See DATA LINK DIAGNOSTICS TEST .
