Liftgate Lower Trim Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the liftgate upper trim.
  3. Remove the liftgate side trim.
  4. Remove the cargo compartment light.
  5. Remove the liftgate lower trim installation fasteners.
  6. Remove the pull handle installation screws.
  7. Remove the pull handle.
  8. Pull the liftgate lower trim forward to disengage clips A and pins B from the body, and remove the liftgate lower trim.

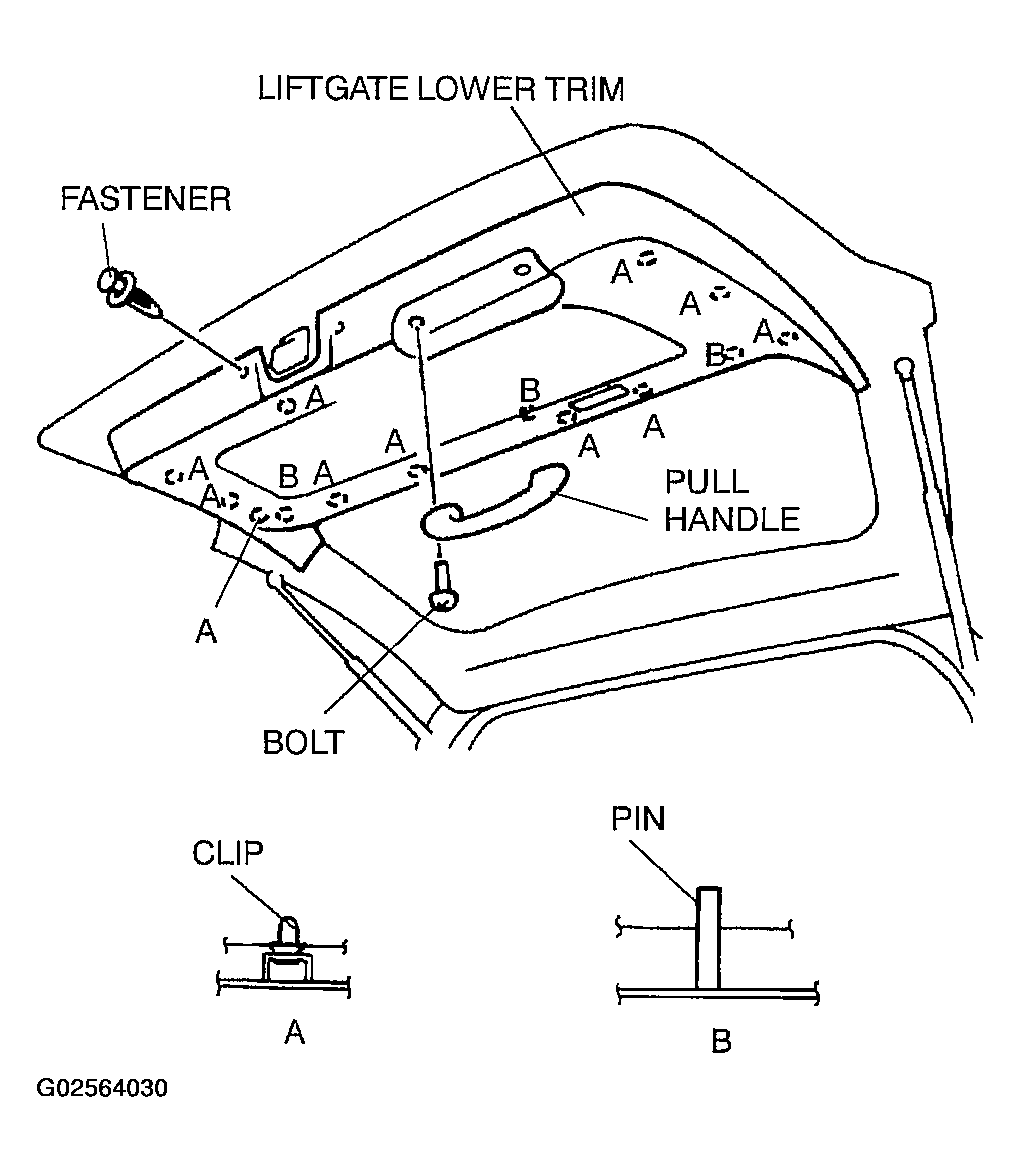

    Fig 1: Removing/Installing Liftgate Lower Trim
    G02564030Courtesy of MAZDA MOTORS CORP.
  9. Install in the reverse order of removal.
