Liftgate Side Trim Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Remove the liftgate upper trim.
Remove the fastener.
Pull the liftgate side trim forward to disengage clips A and pin B from the body.
Pull the liftgate side trim upward, then disengage hook C from the liftgate lower trim, and remove the liftgate side trim.

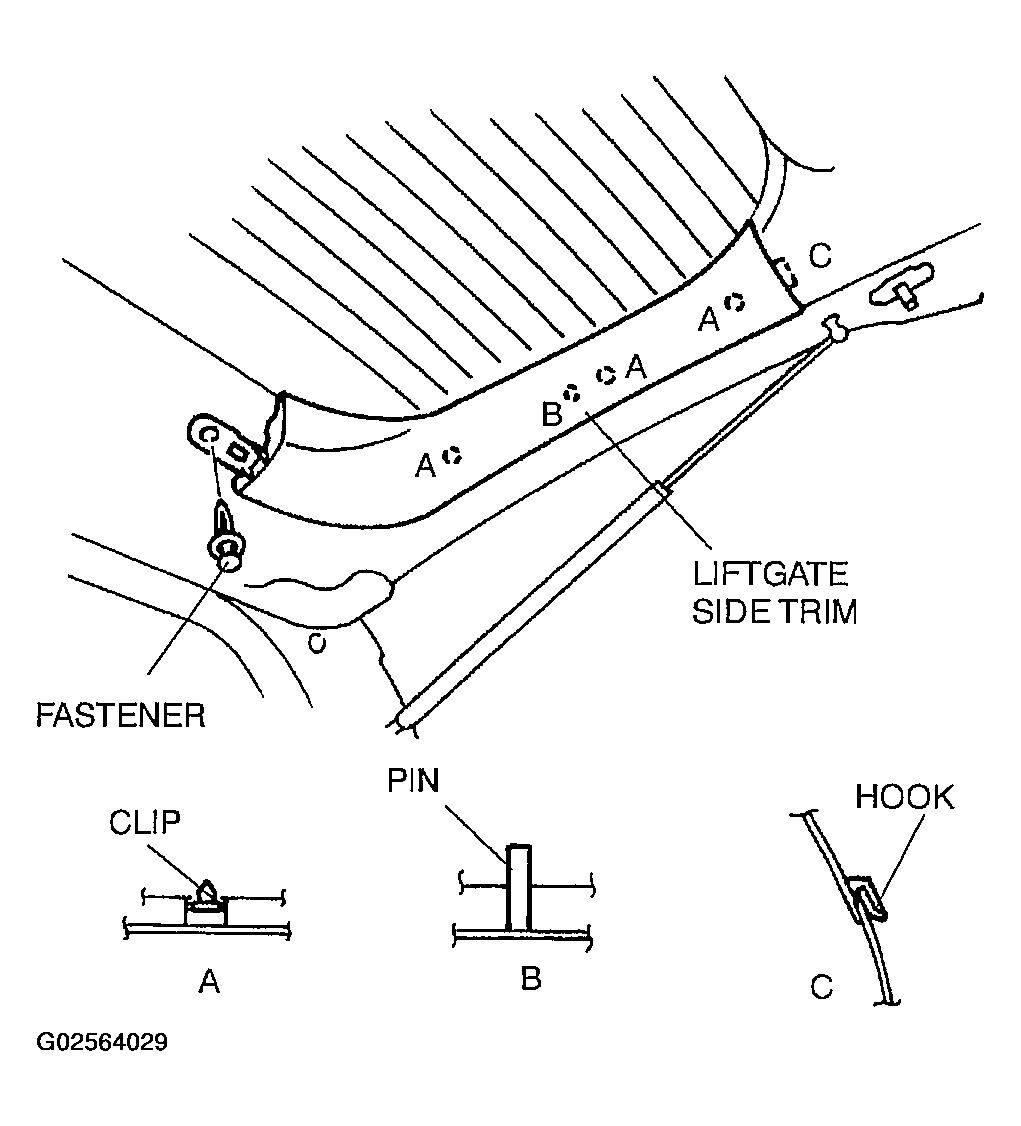

Fig 1: Locating Liftgate Side Trim Clips, Hooks & Pin
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
